Pinpoint Test C: The Instrument Panel Illumination Is Inoperative - SVT

CAUTION: The SVT instrument cluster utilizes high AC voltage for the electro-luminescent backlighting system in instrument cluster and oil pressure and oil temperature cluster. Care must be exercised when making measurements to the instrument cluster circuits.

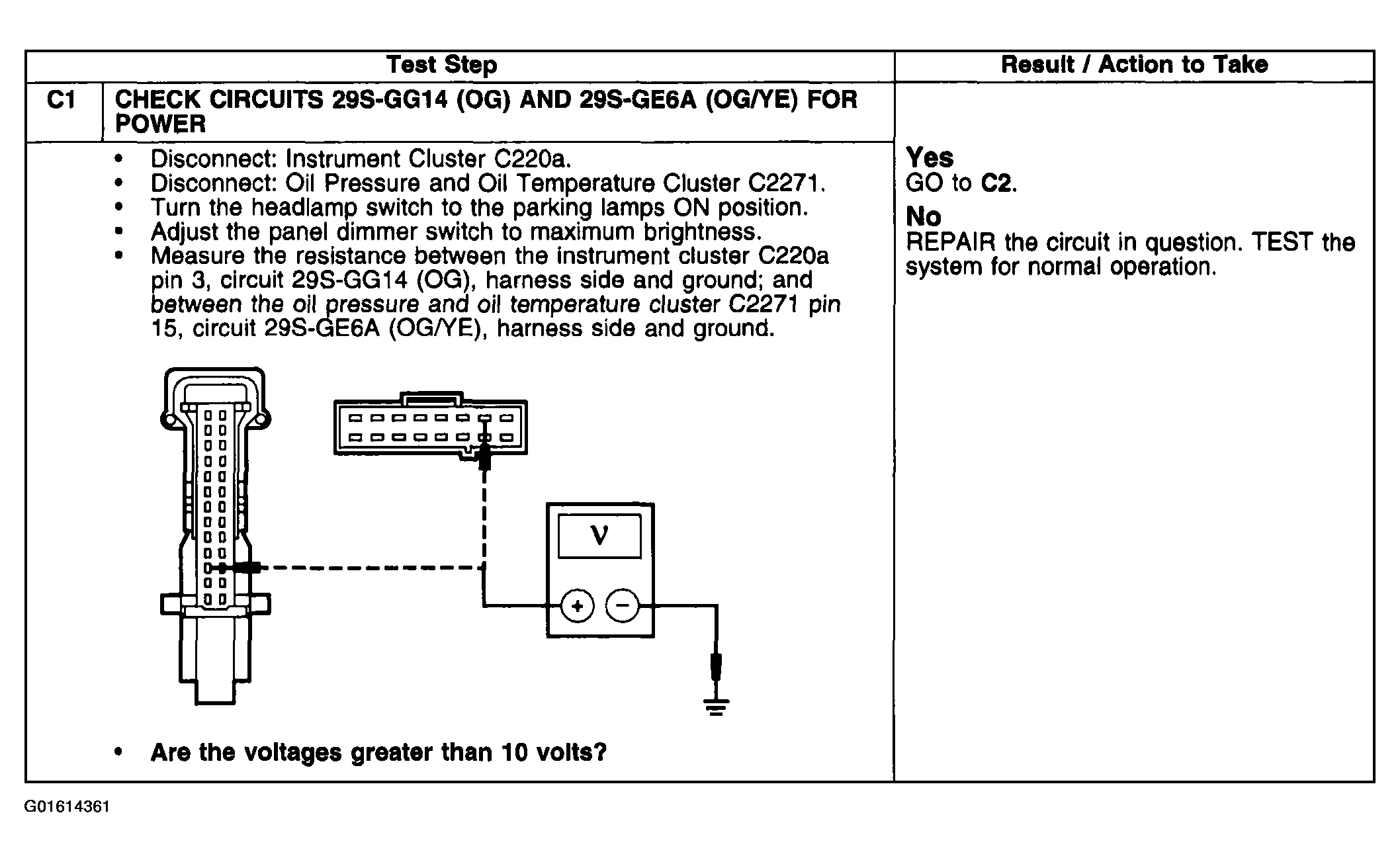

Fig 1: Pinpoint Test C: Instrument Panel Illumination Is Inoperative - SVT (C1)

Courtesy of FORD MOTOR CO.

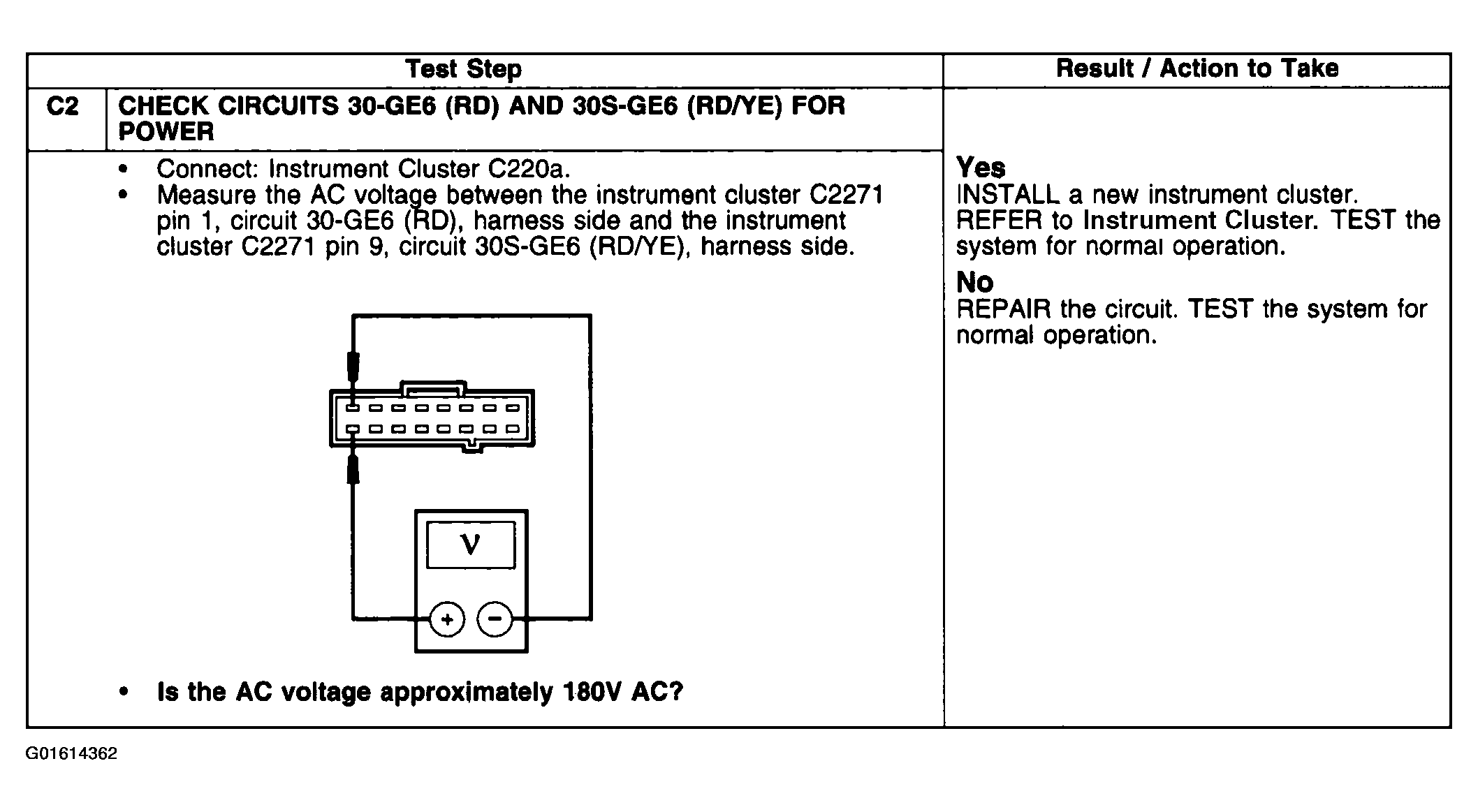

Fig 2: Pinpoint Test C: Instrument Panel Illumination Is Inoperative - SVT (C2)

Courtesy of FORD MOTOR CO.
