Pinpoint Test A: The Control Illumination Is Inoperative

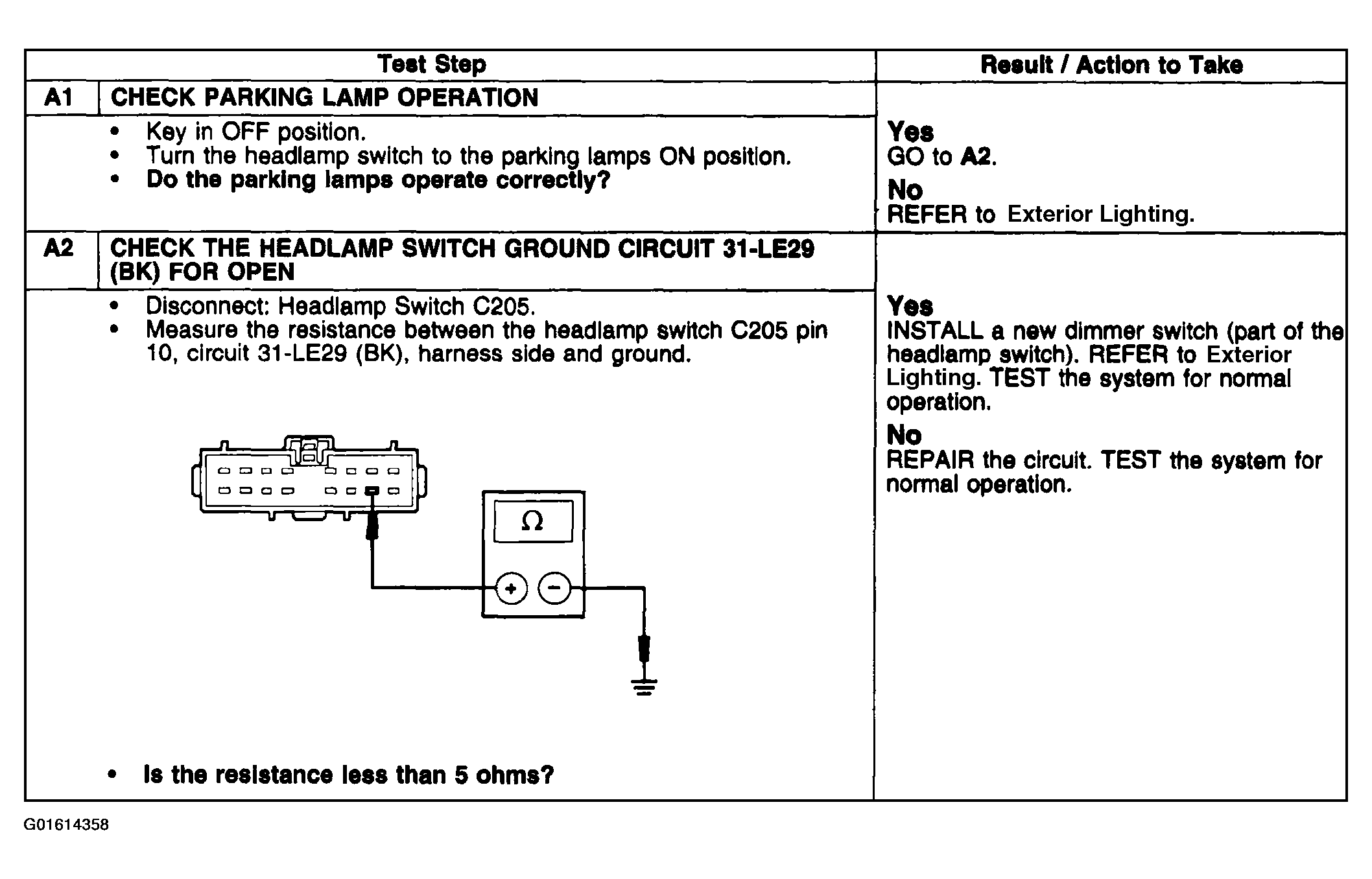

Fig 1: Pinpoint Test A: Control Illumination Is Inoperative (A1-A2)

G01614358

Courtesy of FORD MOTOR CO.
