Intake Manifold Assembly: Notes

WARNING: This page is about a different car, the 2005 Ford Pickup and 2005 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL

Item Specification
SAE 5W-20 Premium Synthetic Blend Motor Oil XO-5W20-QSP or equivalent WSS-M2C930-A

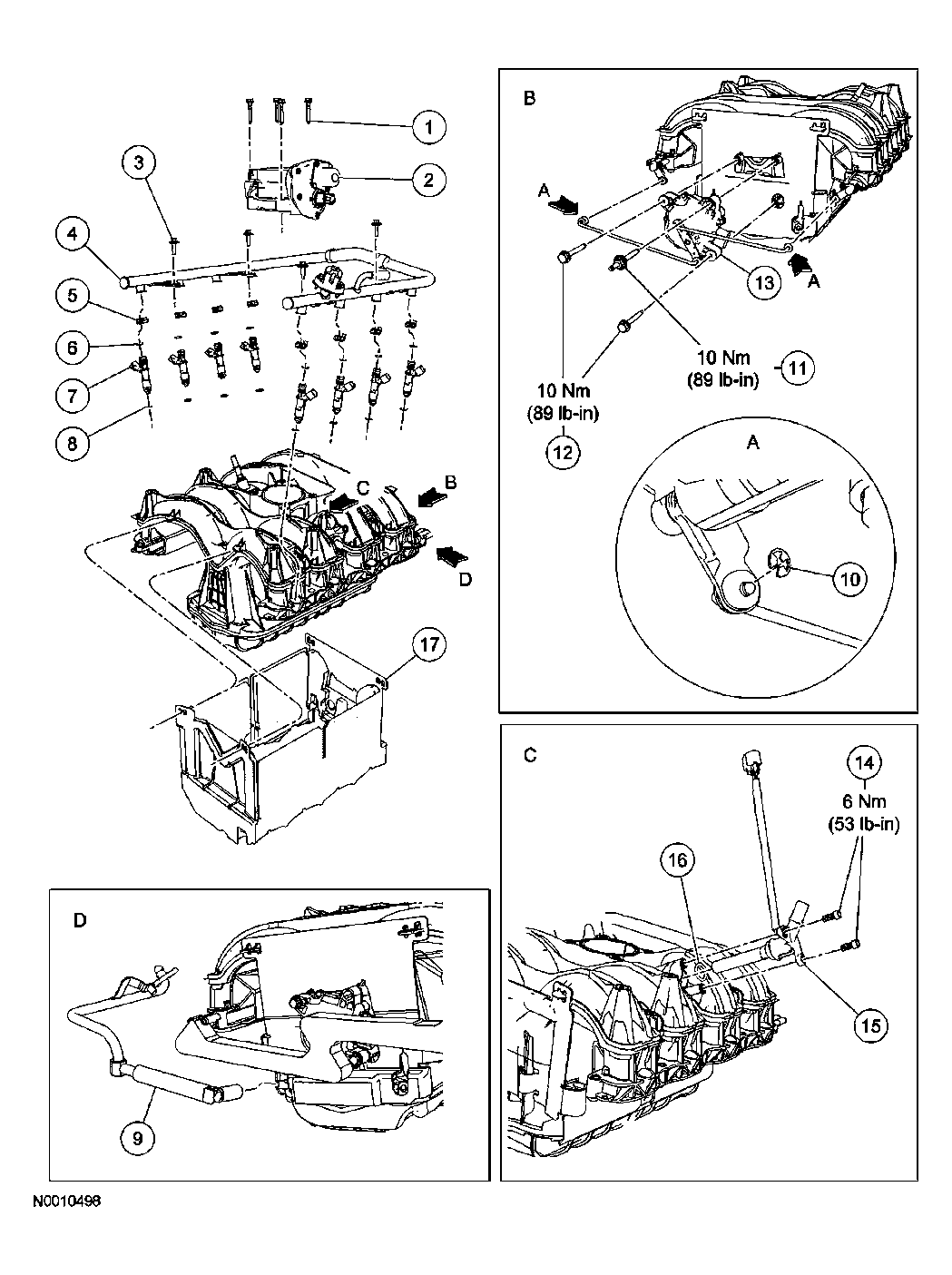

Fig 1: Identifying Intake Manifold Assembly
G03920354Courtesy of FORD MOTOR CO.

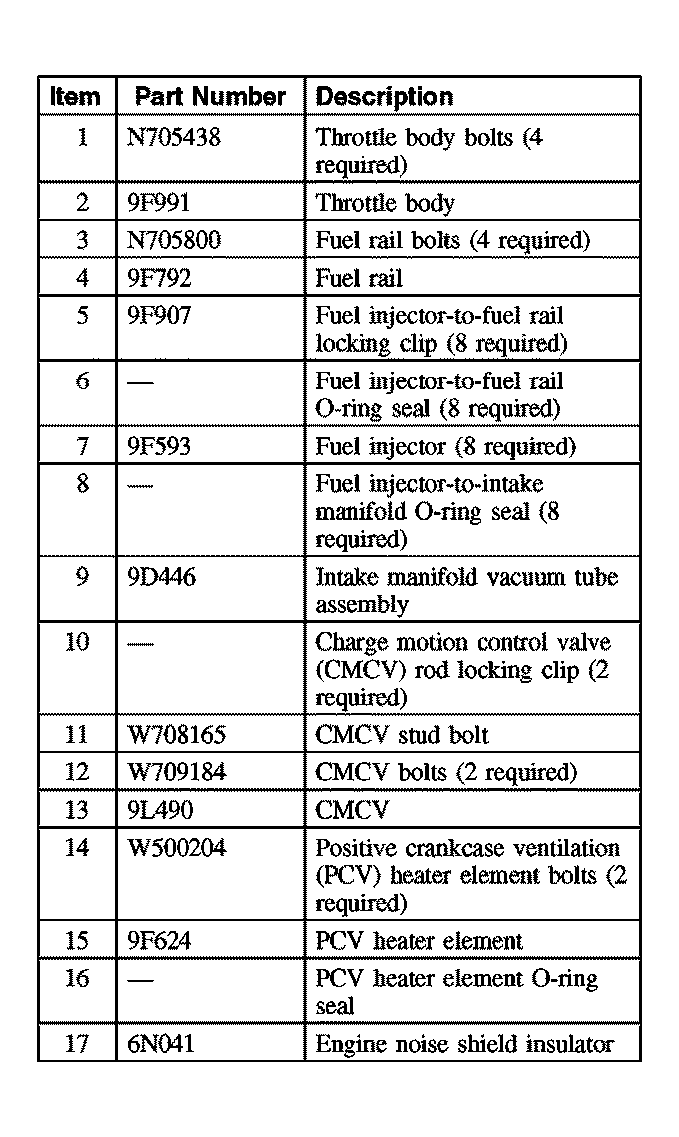

Fig 2: Identifying Intake Manifold Assembly Components
G03920355Courtesy of FORD MOTOR CO.
