Pinpoint Test Z: Check Fuel Cap Indicator Is Inoperative/Always On

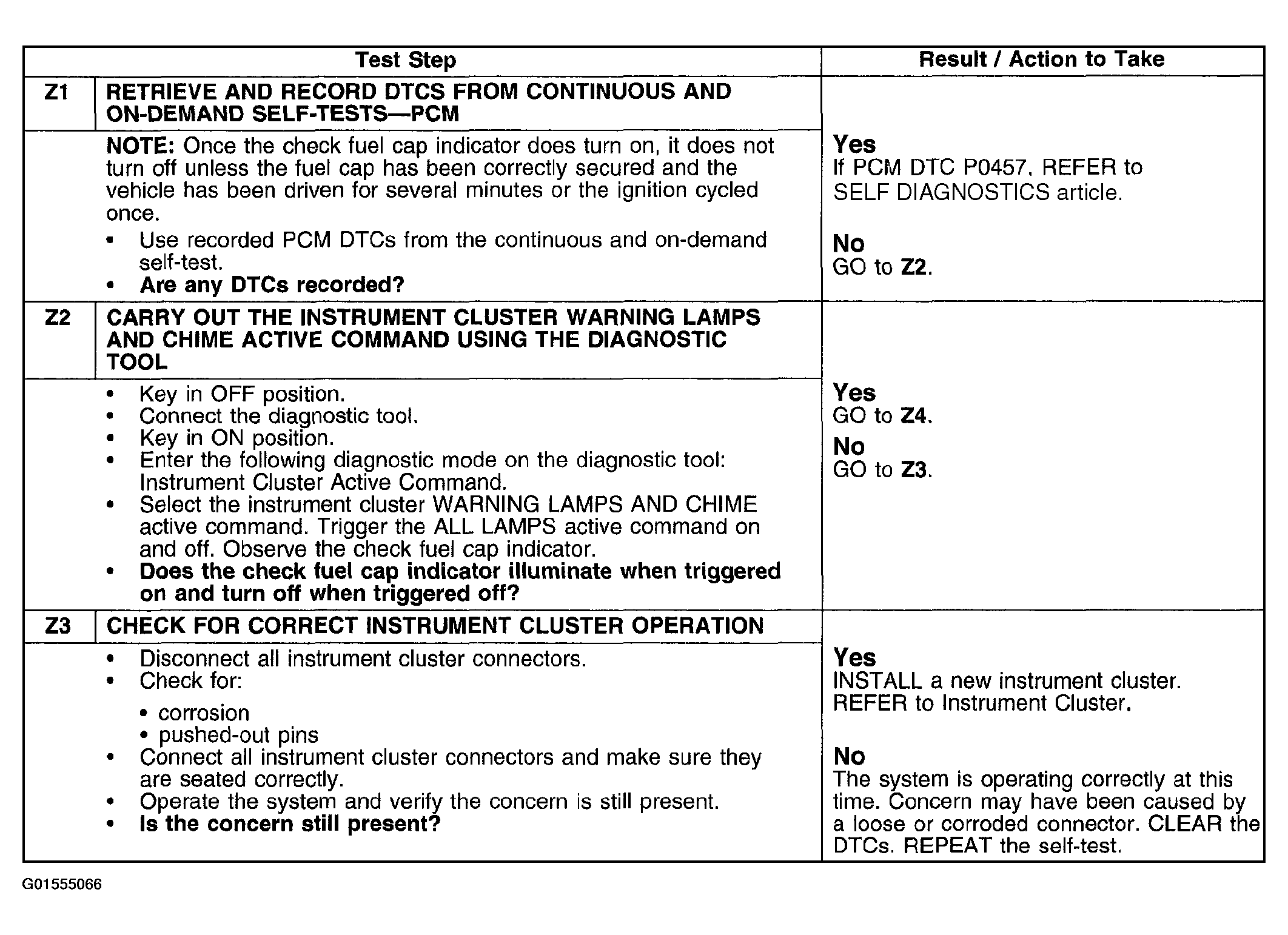

Fig 1: Pinpoint Test Z: Check Fuel Cap Indicator Is Inoperative/Always On (Z1-Z3)
G01555066Courtesy of FORD MOTOR CO.

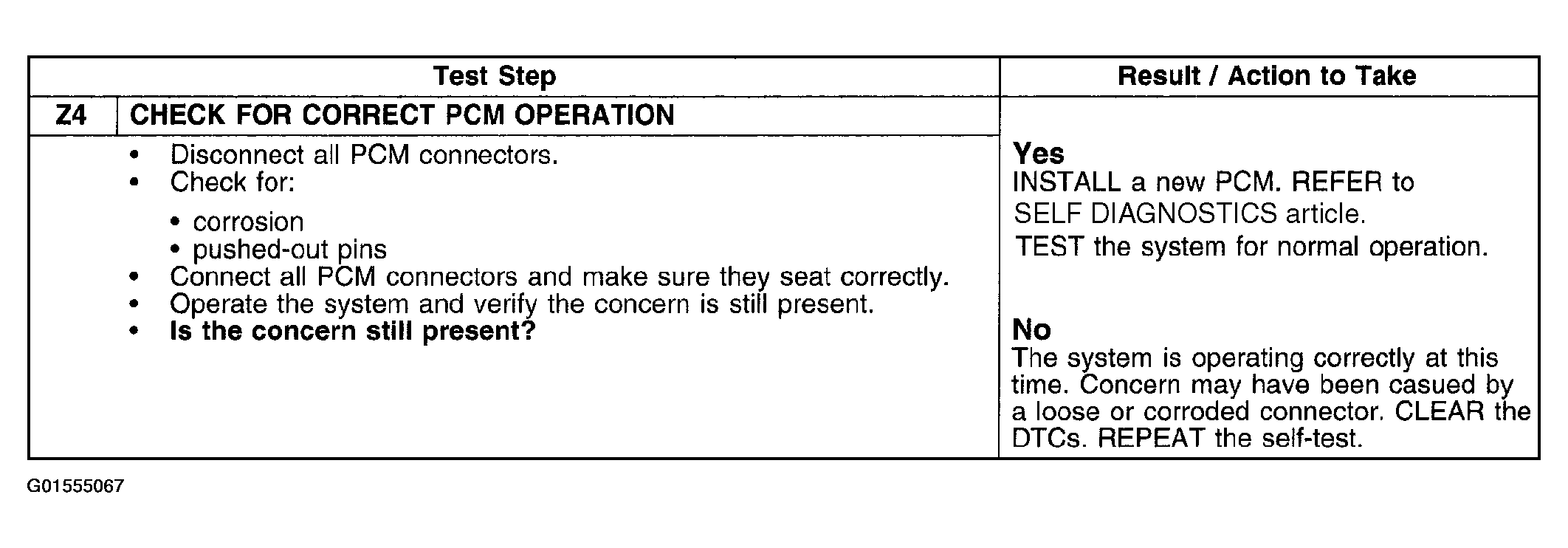

Fig 2: Pinpoint Test Z: Check Fuel Cap Indicator Is Inoperative/Always On (Z4)
G01555067Courtesy of FORD MOTOR CO.
