Pinpoint Test V: Wait To Start Indicator Is Never/Always On-Diesel Only

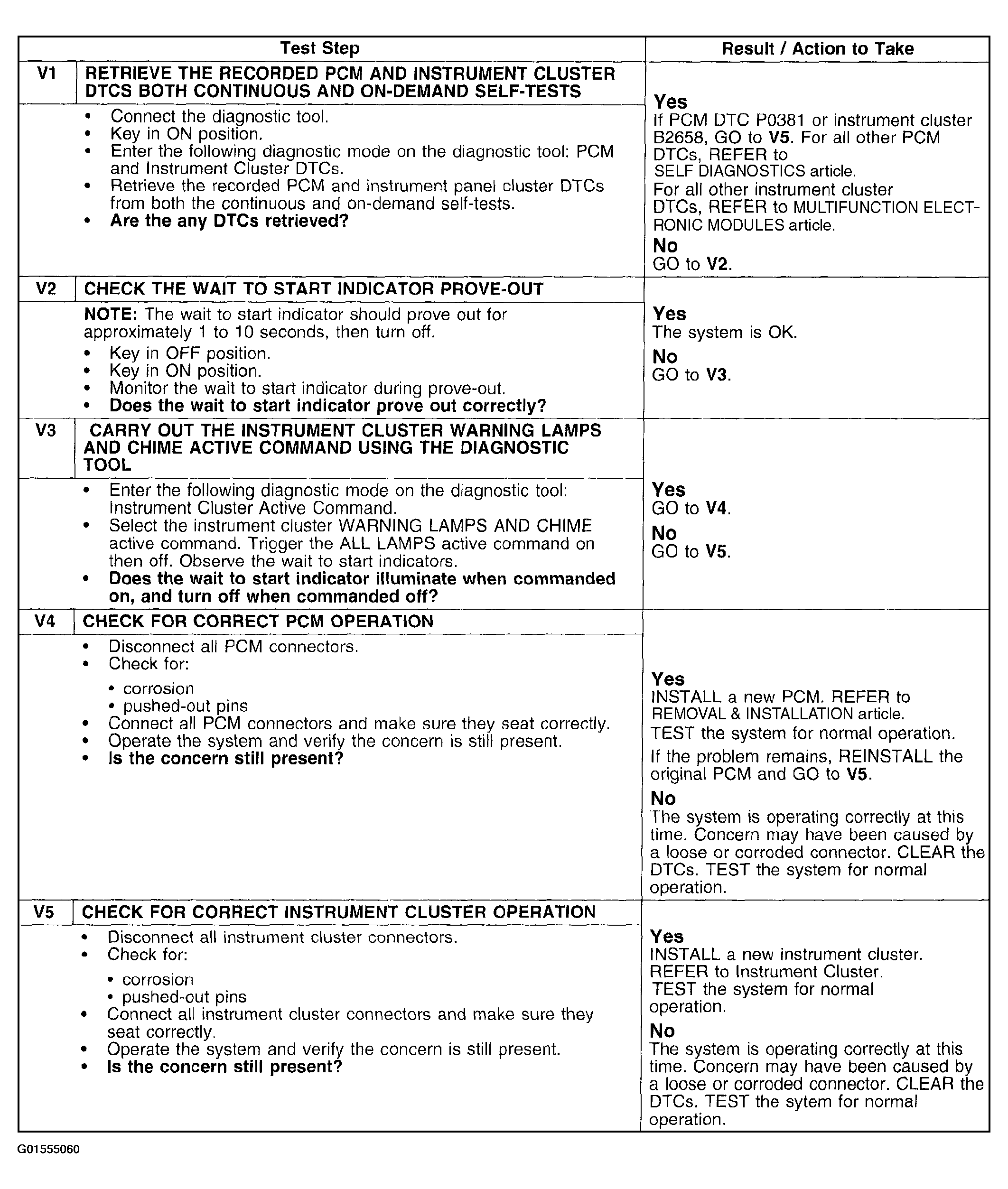

Fig 1: Pinpoint Test V: Wait To Start Indicator Is Never/Always On-Diesel Only (V1-V5)

G01555060

Courtesy of FORD MOTOR CO.
