Pinpoint Test M: Brake Warning Indicator Is Never On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

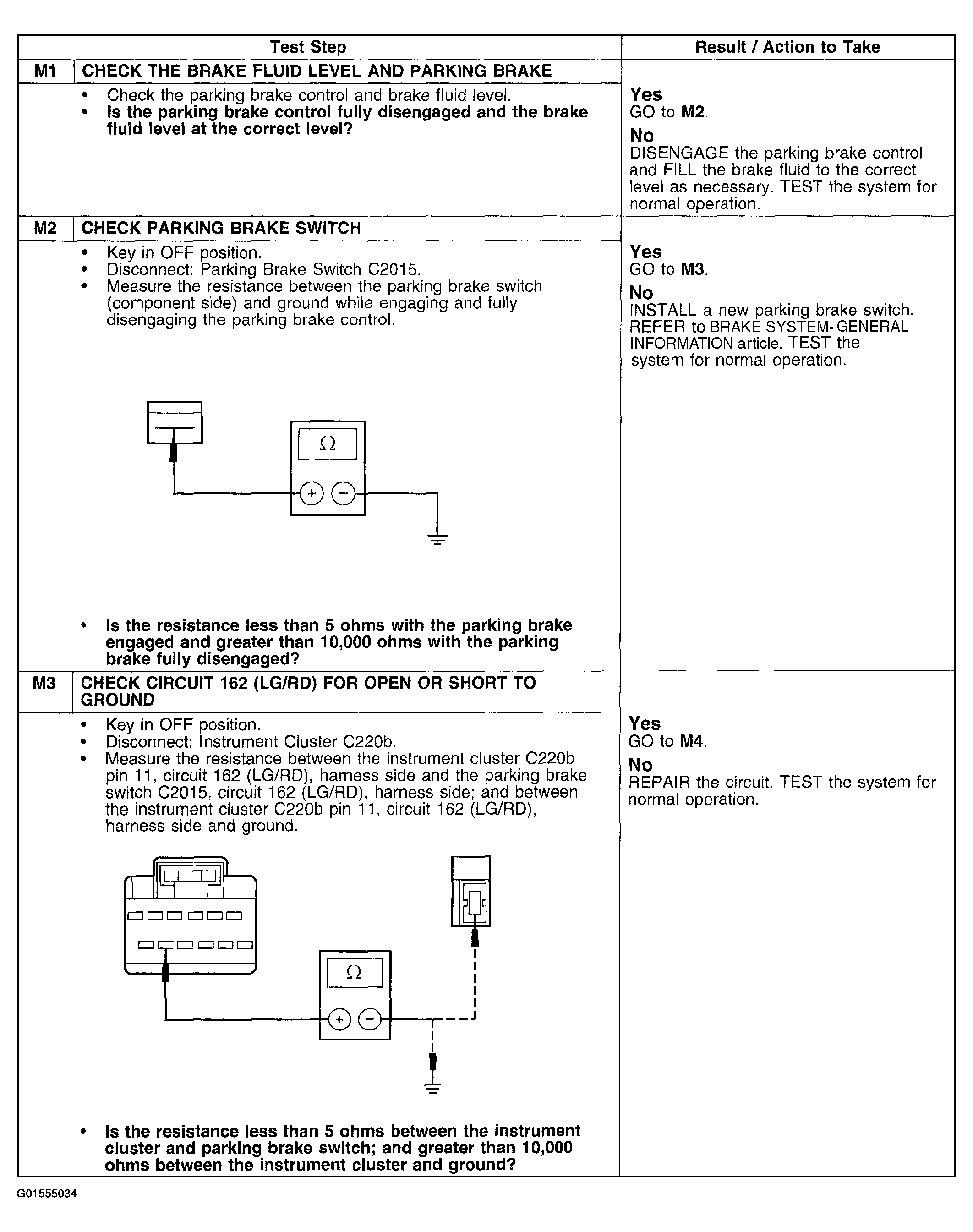

Fig 1: Pinpoint Test M: Brake Warning Indicator Is Never On (M1-M3)
G01555034Courtesy of FORD MOTOR CO.

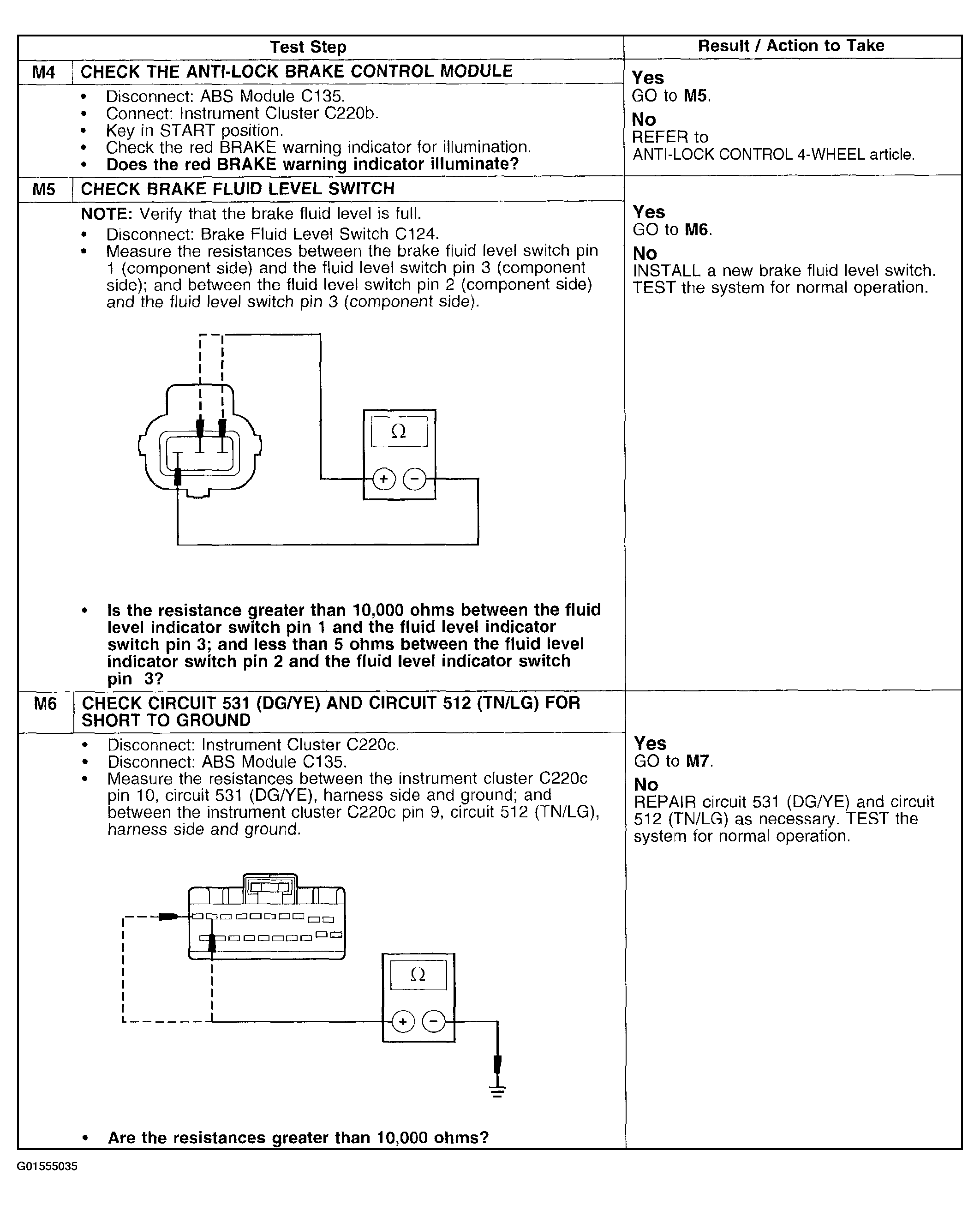

Fig 2: Pinpoint Test M: Brake Warning Indicator Is Never On (M4-M6)
G01555035Courtesy of FORD MOTOR CO.

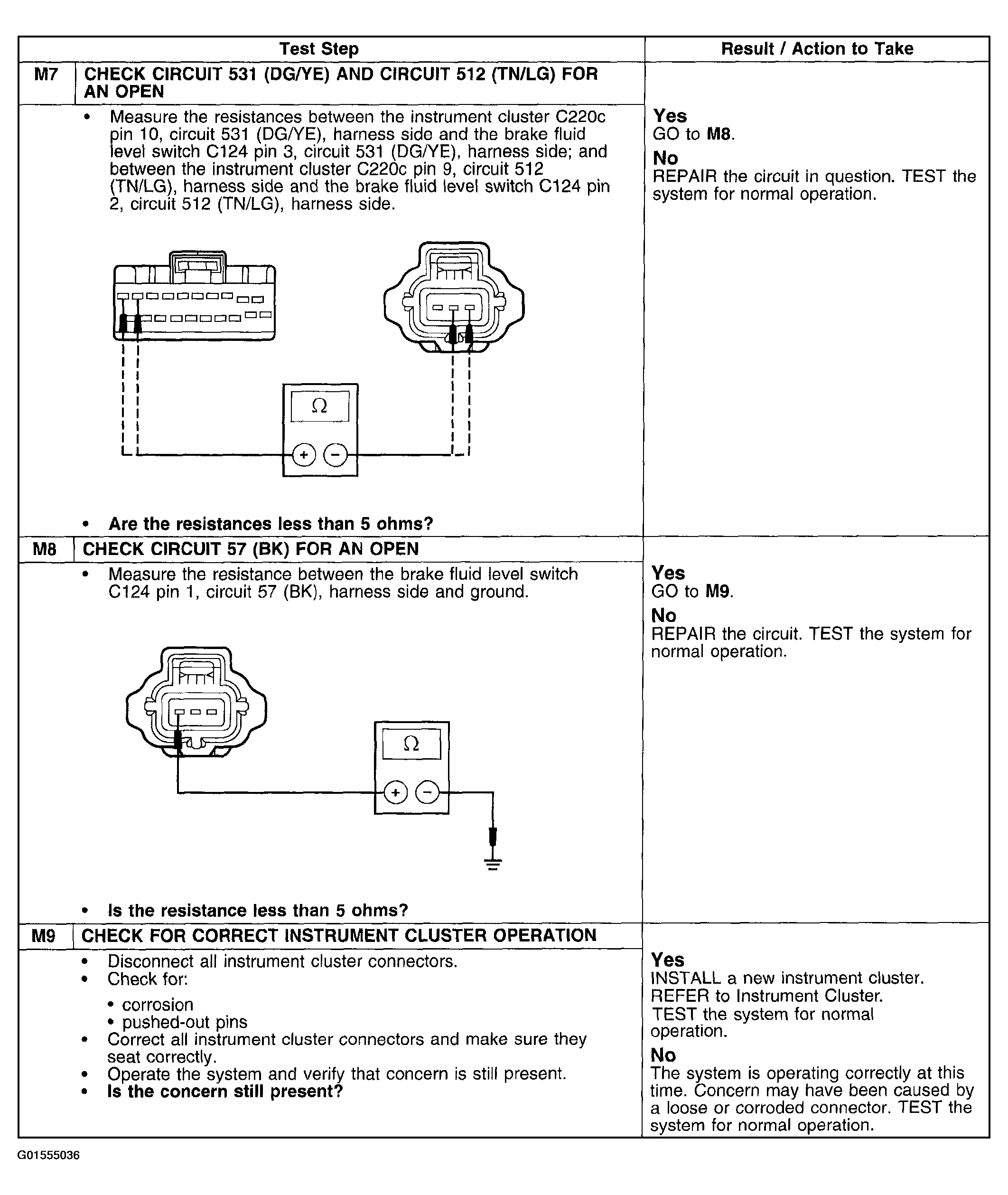

Fig 3: Pinpoint Test M: Brake Warning Indicator Is Never On (M7-M9)
G01555036Courtesy of FORD MOTOR CO.
