Pinpoint Test C: No Communication With Message Center - Excursion

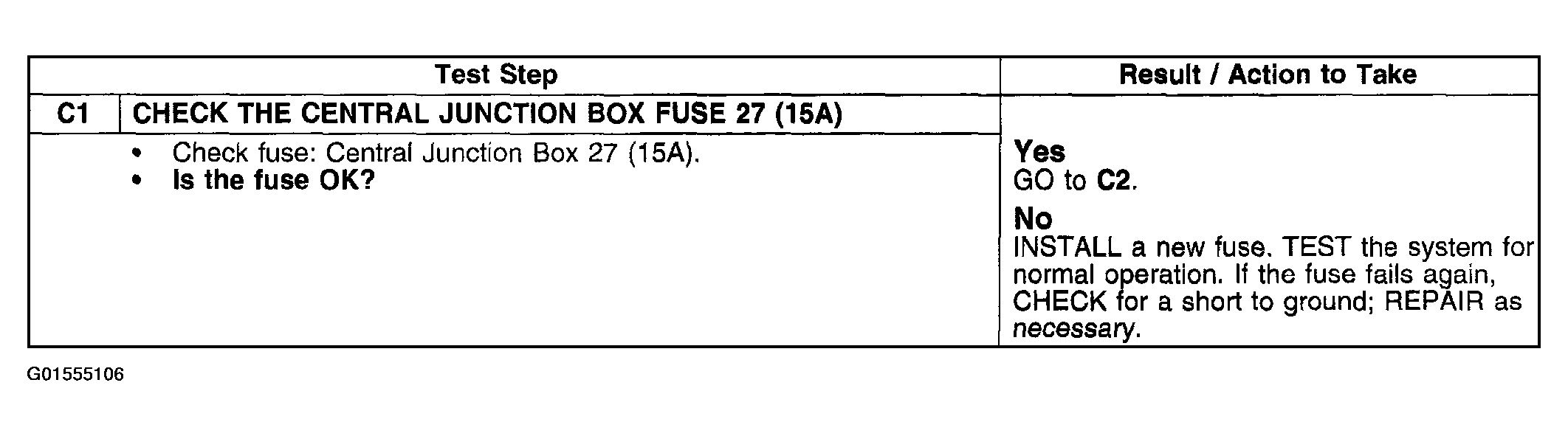

Fig 1: Pinpoint Test C: No Communication With Message Center - Excursion (C1)
G01555106Courtesy of FORD MOTOR CO.

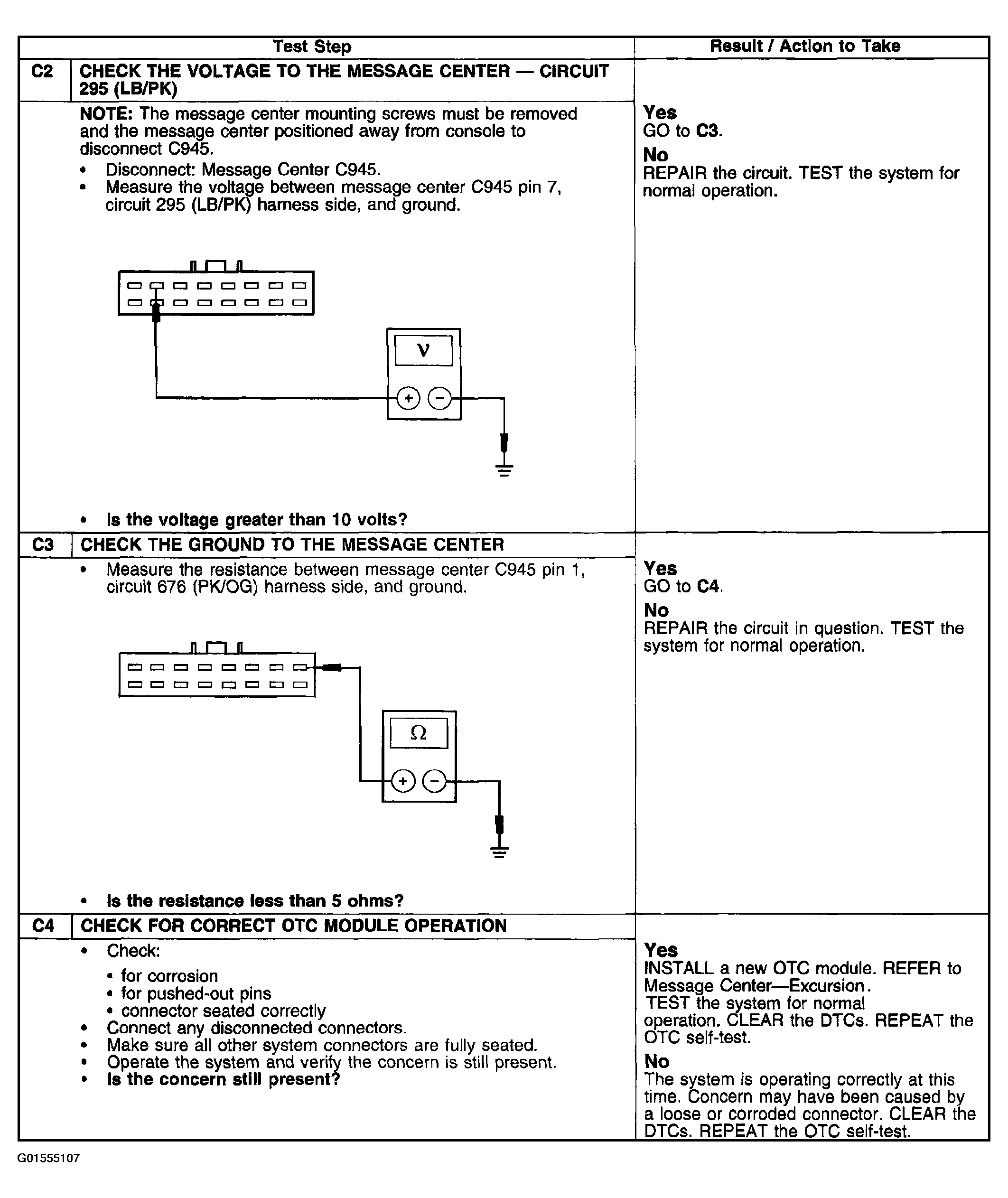

Fig 2: Pinpoint Test C: No Communication With Message Center - Excursion (C2-C4)
G01555107Courtesy of FORD MOTOR CO.
