Pinpoint Test A: Compass Is Inaccurate

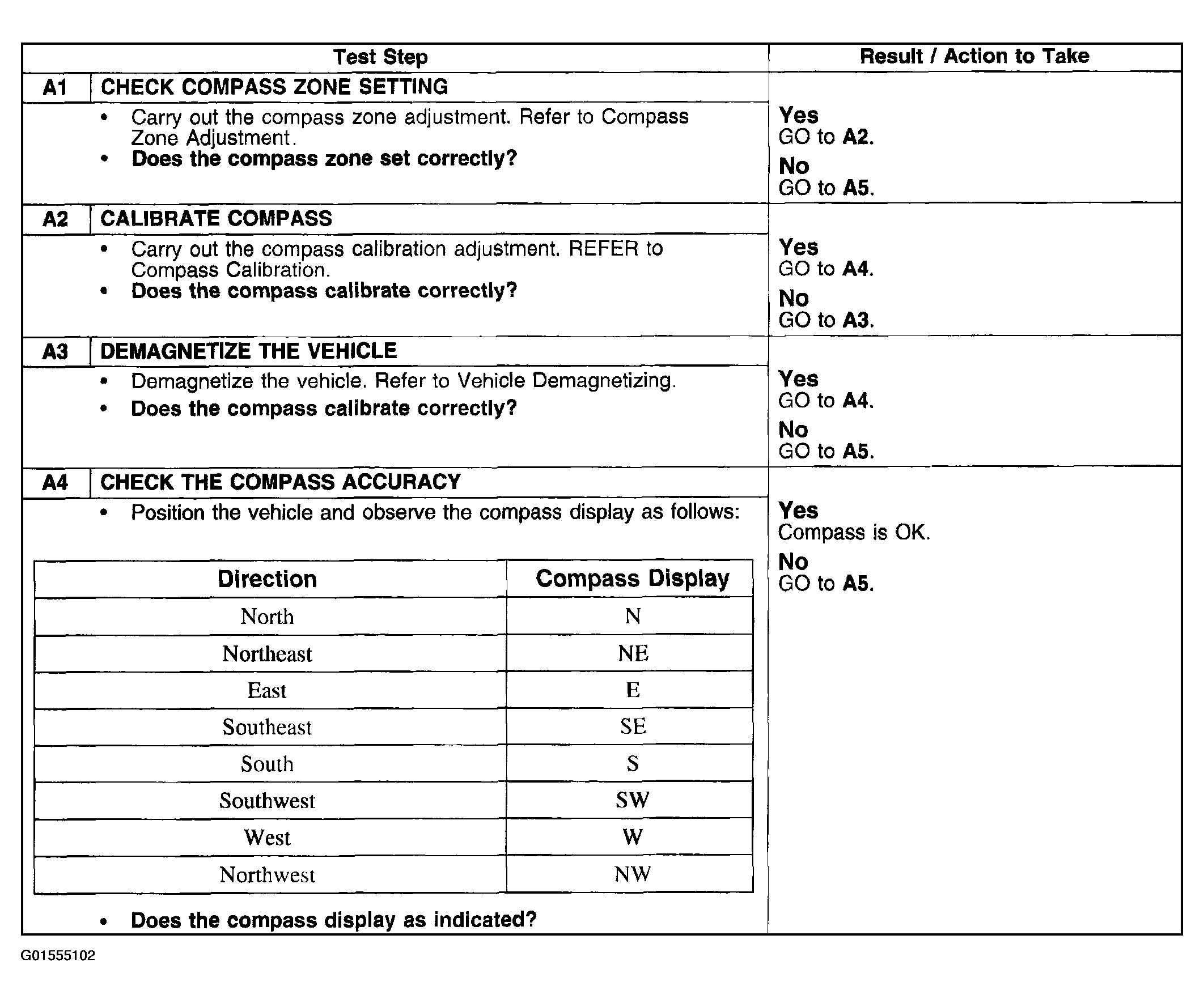

Fig 1: Pinpoint Test A: Compass Is Inaccurate (A1-A4)
G01555102Courtesy of FORD MOTOR CO.

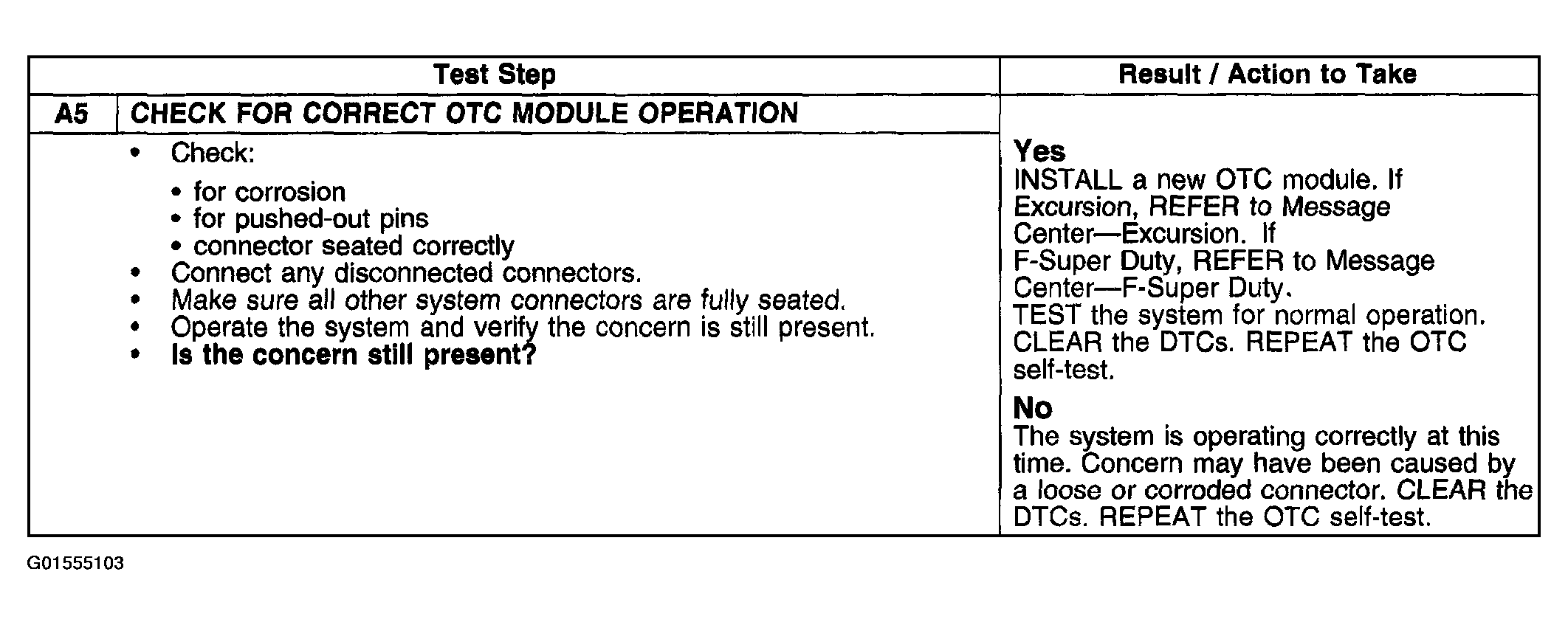

Fig 2: Pinpoint Test A: Compass Is Inaccurate (A5)
G01555103Courtesy of FORD MOTOR CO.
