Removal And Installation : Hub: Removal

All vehicles

1. Remove the tire and wheel assembly. Refer to WHEELS & TIRES - EXCURSION & F250-F550 SUPER DUTY PICKUPS .
2. Remove the anchor plate.

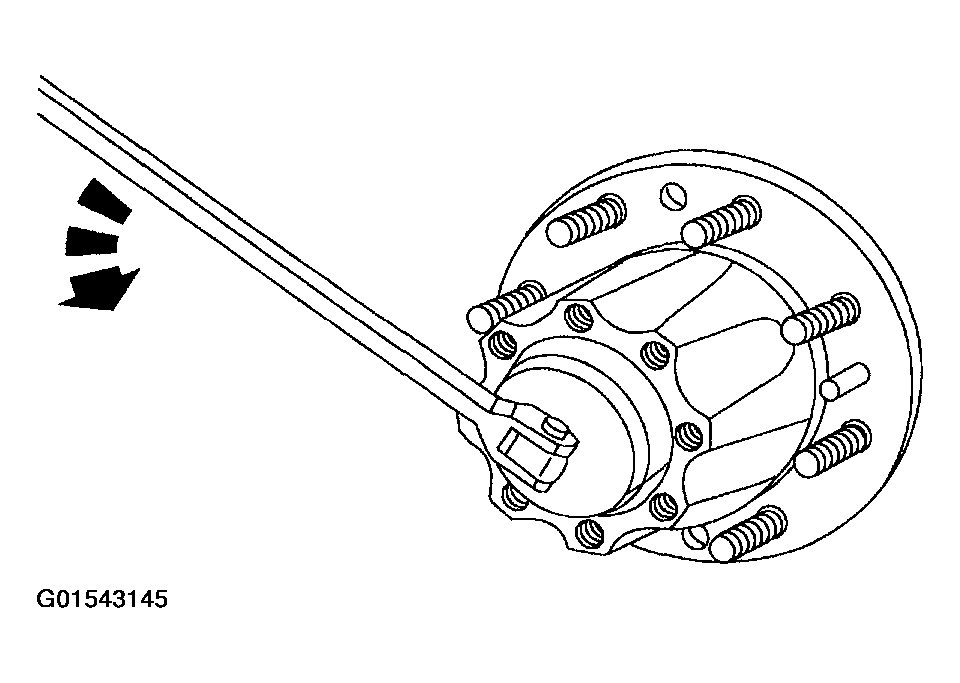

   Fig 1: Removing Anchor Plate

   Courtesy of FORD MOTOR CO.
3. Remove the axle shaft (4234). Refer to Axle Shaft .

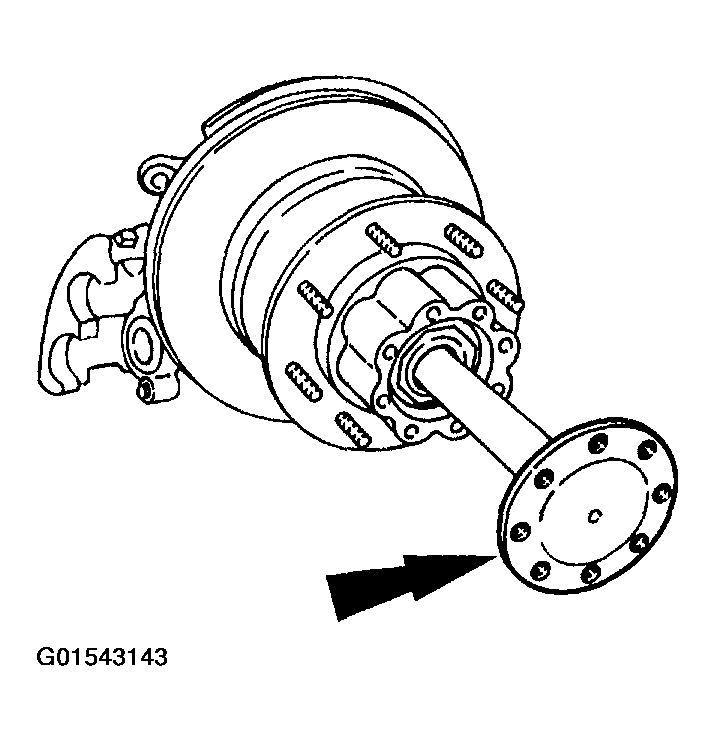

   Fig 2: Removing Axle Shaft

   Courtesy of FORD MOTOR CO.

   F-350

NOTE: Make sure that the drive tangs on the special tool engage the four slots of the hub nut.

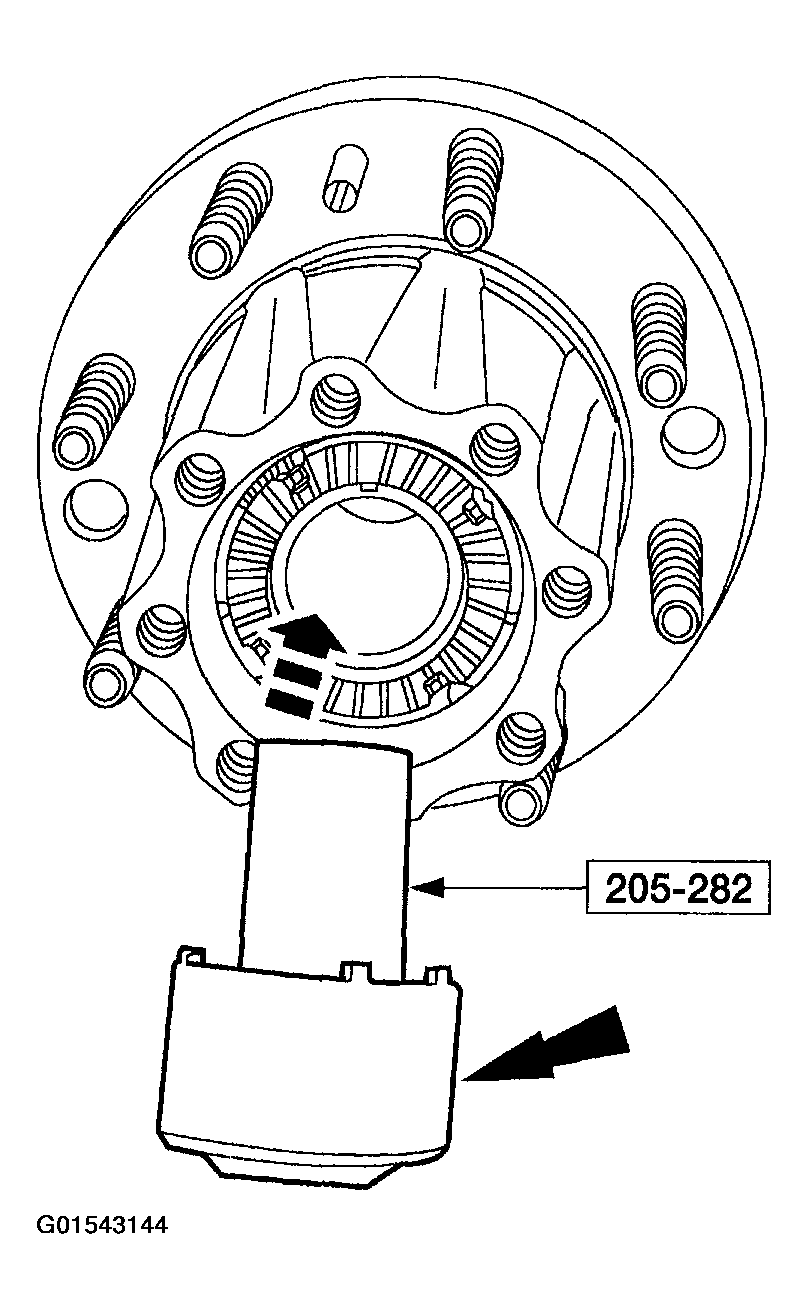

Fig 3: Removing Hub Nut (1124)
Courtesy of FORD MOTOR CO.
4. Using the special tool, remove the hub nut (1124).

   F-450 and F-550

5. Using a suitable socket, remove the hub nut (1A124).
   Fig 4: Removing Hub Nut (1A124)

   Courtesy of FORD MOTOR CO.

   All vehicles

6. Remove the outer rear wheel bearing (1240).

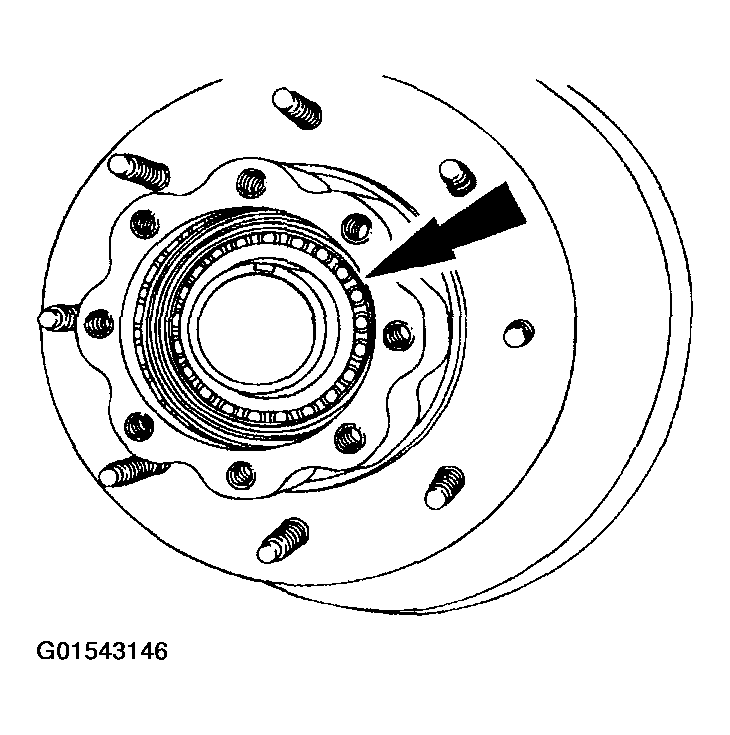

   Fig 5: Removing Outer Rear Wheel Bearing (1240)

   Courtesy of FORD MOTOR CO.
7. Remove the rear hub and brake disc assembly.
8. Remove the bolts and separate the rear hub (1109) from the rear brake disc (2C026).

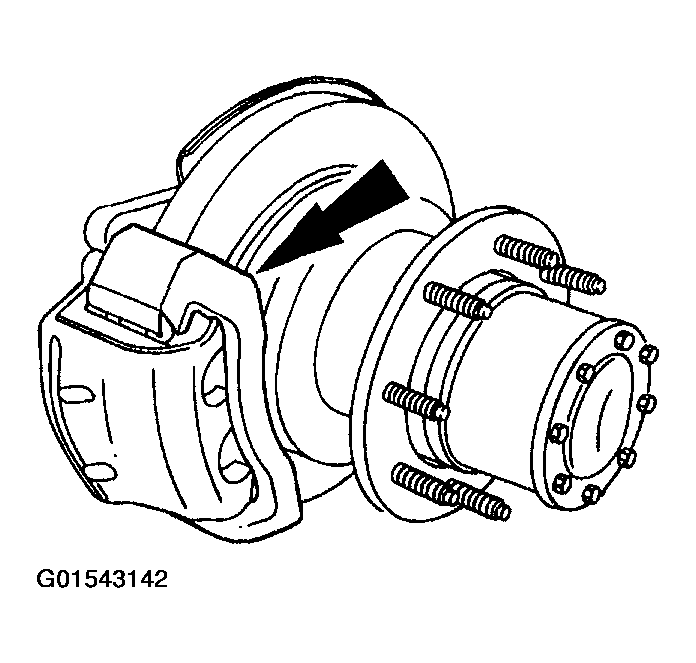

   Fig 6: Removing Bolts And Separating Rear Hub (1109) From Rear Brake Disc (2C026)

   Courtesy of FORD MOTOR CO.
9. Inspect the rear hub for the following:
   • Cracks and damage around the bolt holes.
   • Oversized holes.
