Pinpoint Test Y: Theft Indicator Is Never/Always On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

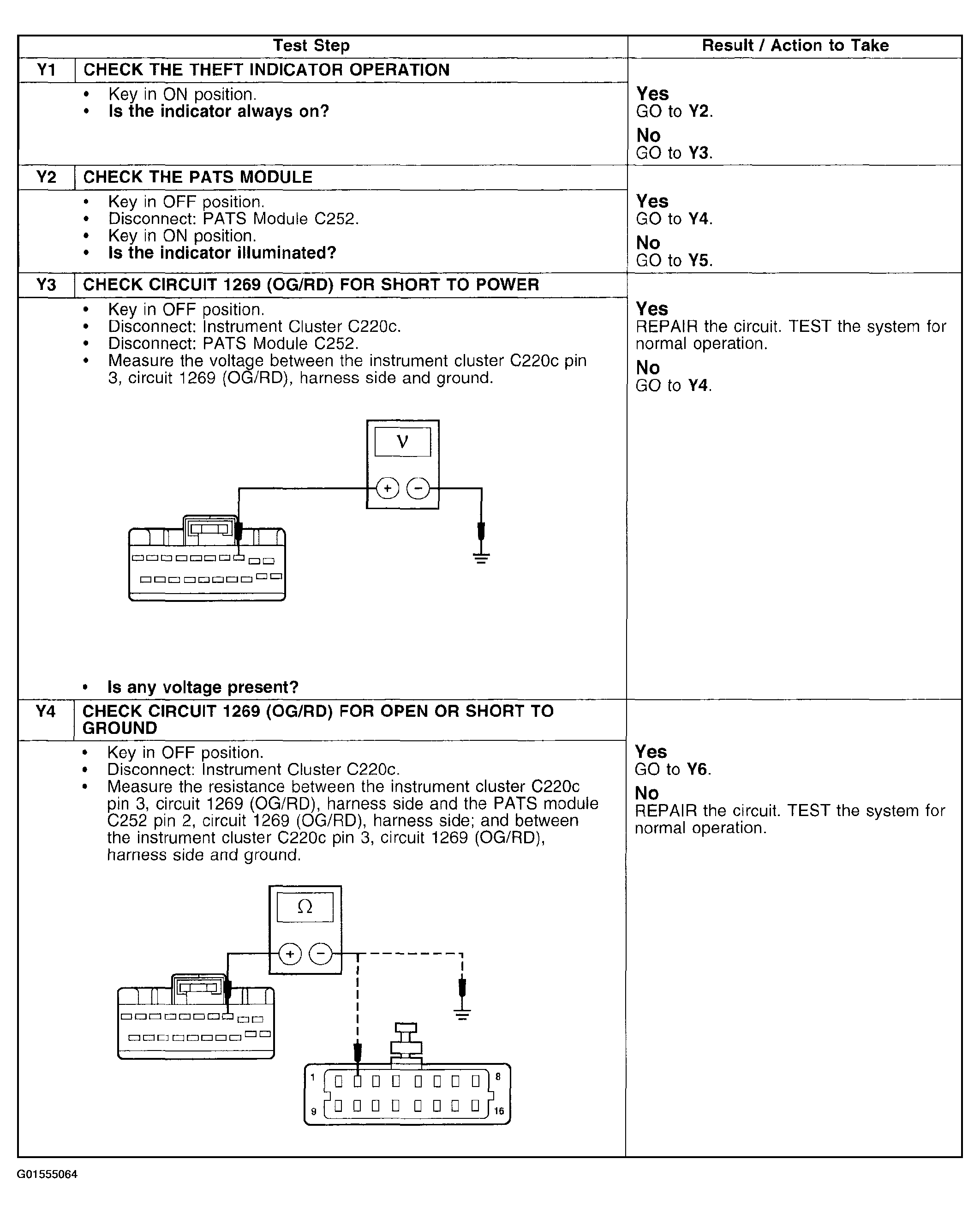

Fig 1: Pinpoint Test Y: Theft Indicator Is Never/Always On (Y1-Y4)
G01555064Courtesy of FORD MOTOR CO.

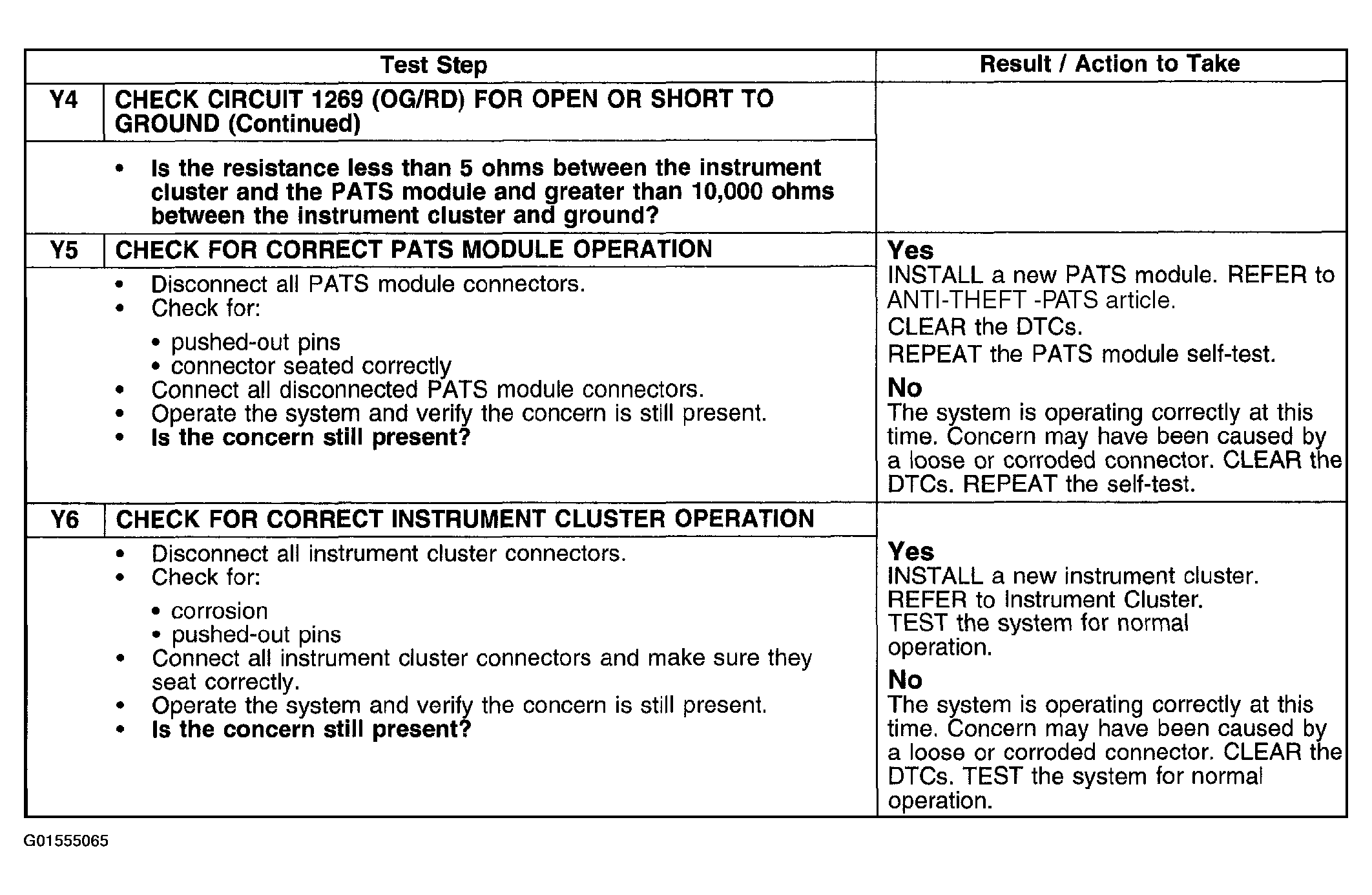

Fig 2: Pinpoint Test Y: Theft Indicator Is Never/Always On (Y4 Cont.-Y6)
G01555065Courtesy of FORD MOTOR CO.
