Pinpoint Test W: Water In Fuel Indicator Is Never/Always On-Diesel Only

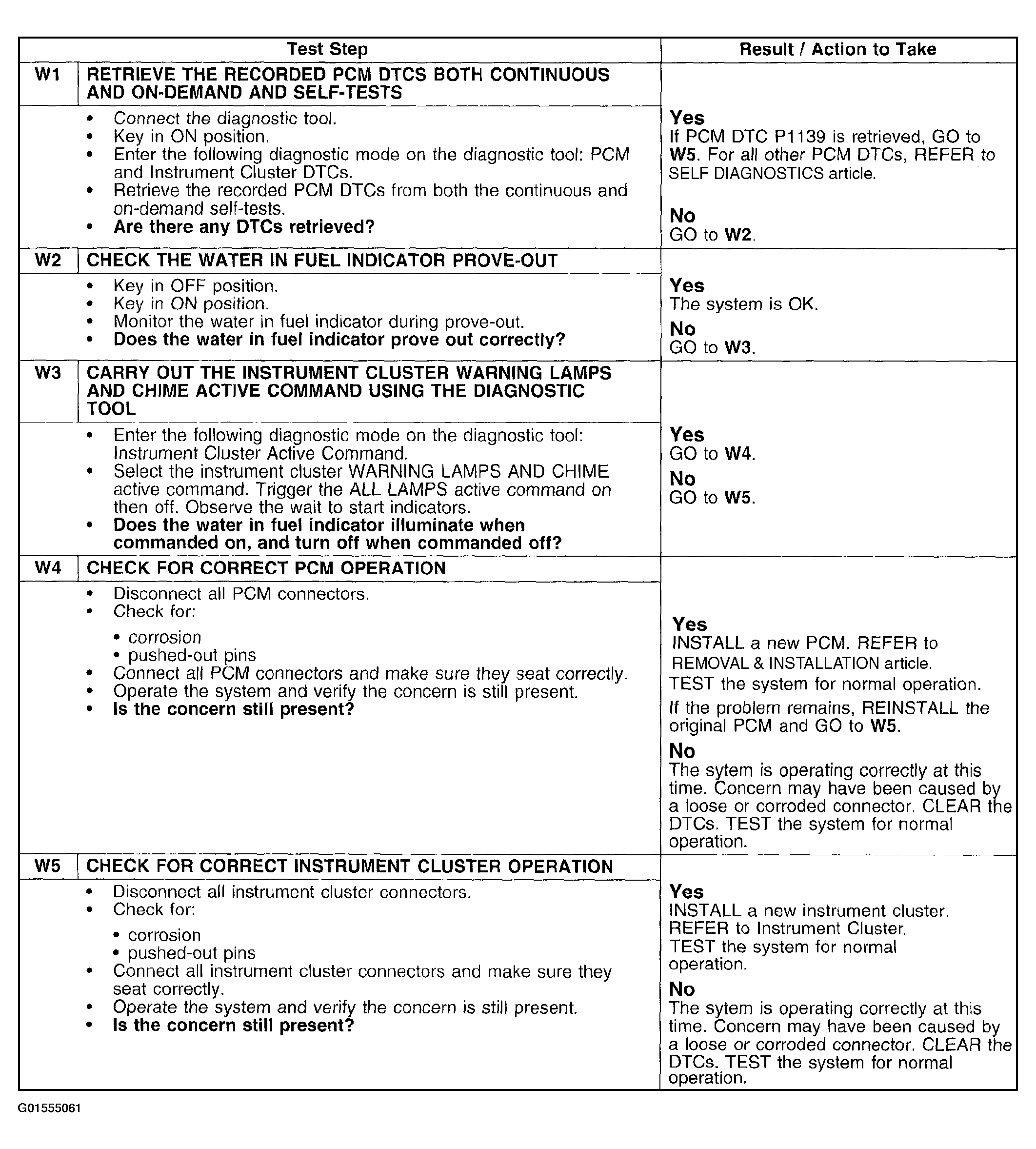

Fig 1: Pinpoint Test W: Water In Fuel Indicator Is Never/Always On-Diesel Only (W1-W5)

G01555061

Courtesy of FORD MOTOR CO.
