Pinpoint Test U: 4X4 High/Low Range Indicator Is Never/Always On-Manual Shift

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

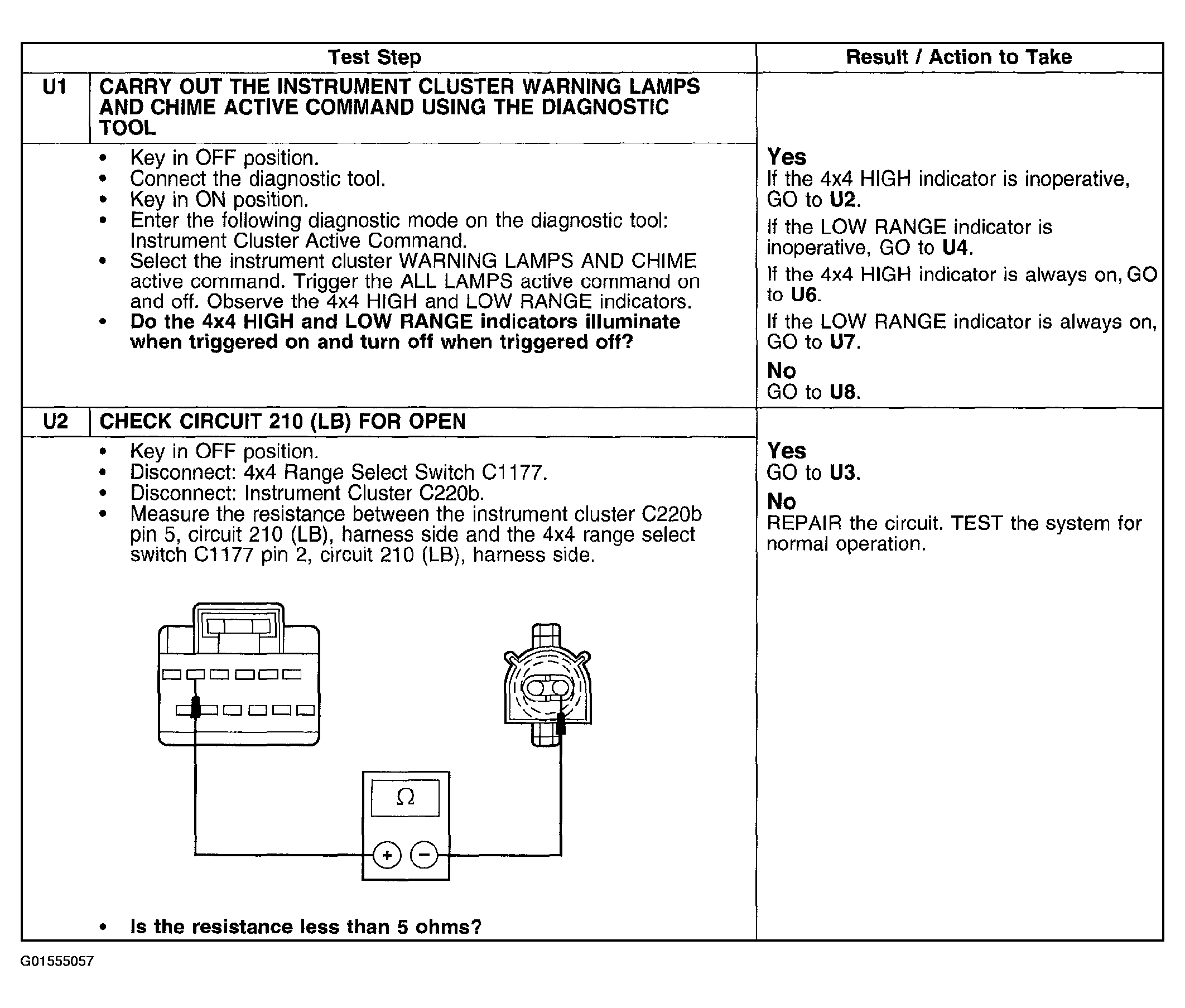

Fig 1: Pinpoint Test U: 4X4 High/Low Range Indicator Is Never/Always On-Manual Shift (U1 & U2)

Courtesy of FORD MOTOR CO.

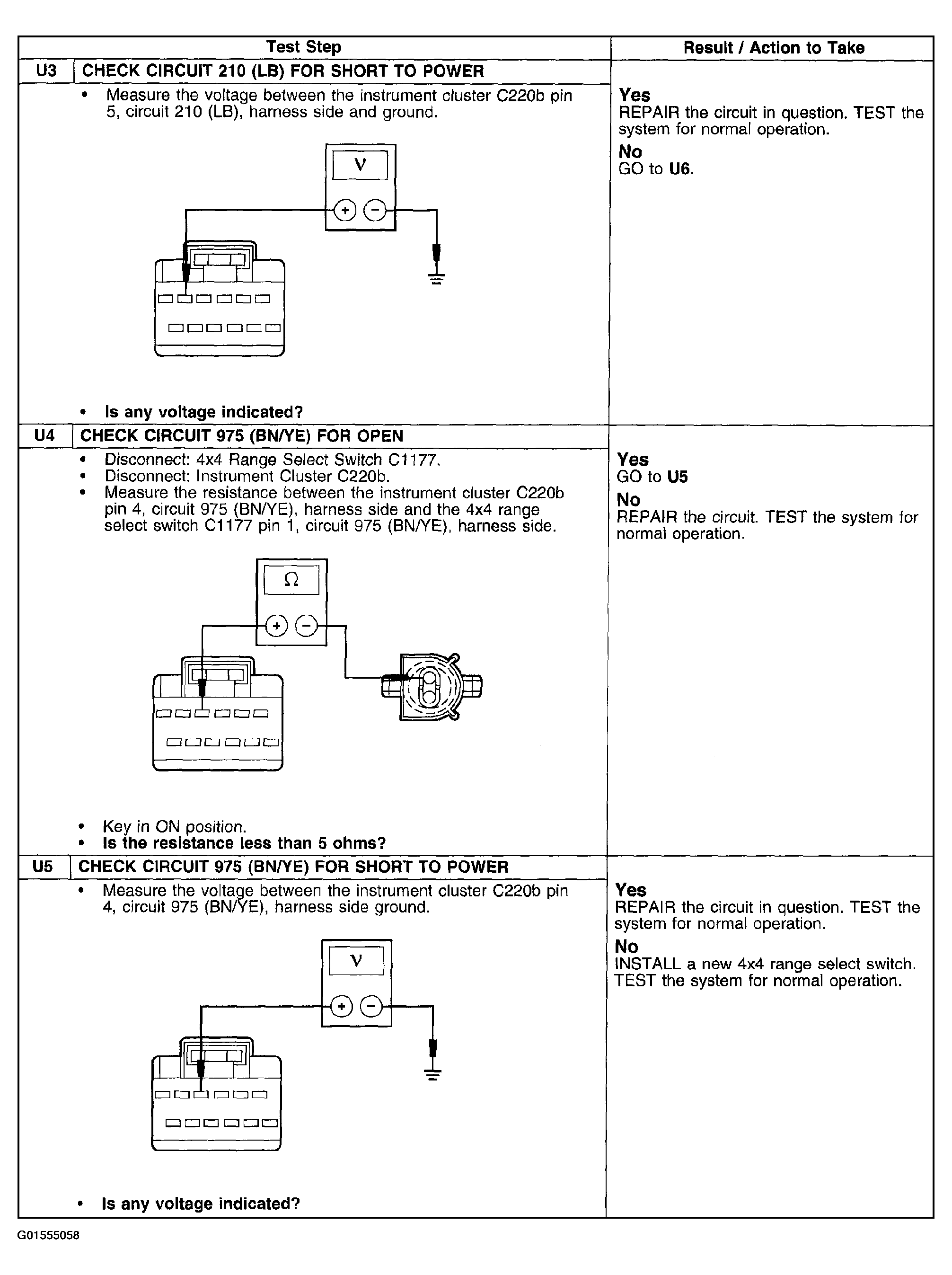

Fig 2: Pinpoint Test U: 4X4 High/Low Range Indicator Is Never/Always On-Manual Shift (U3-U5)

Courtesy of FORD MOTOR CO.

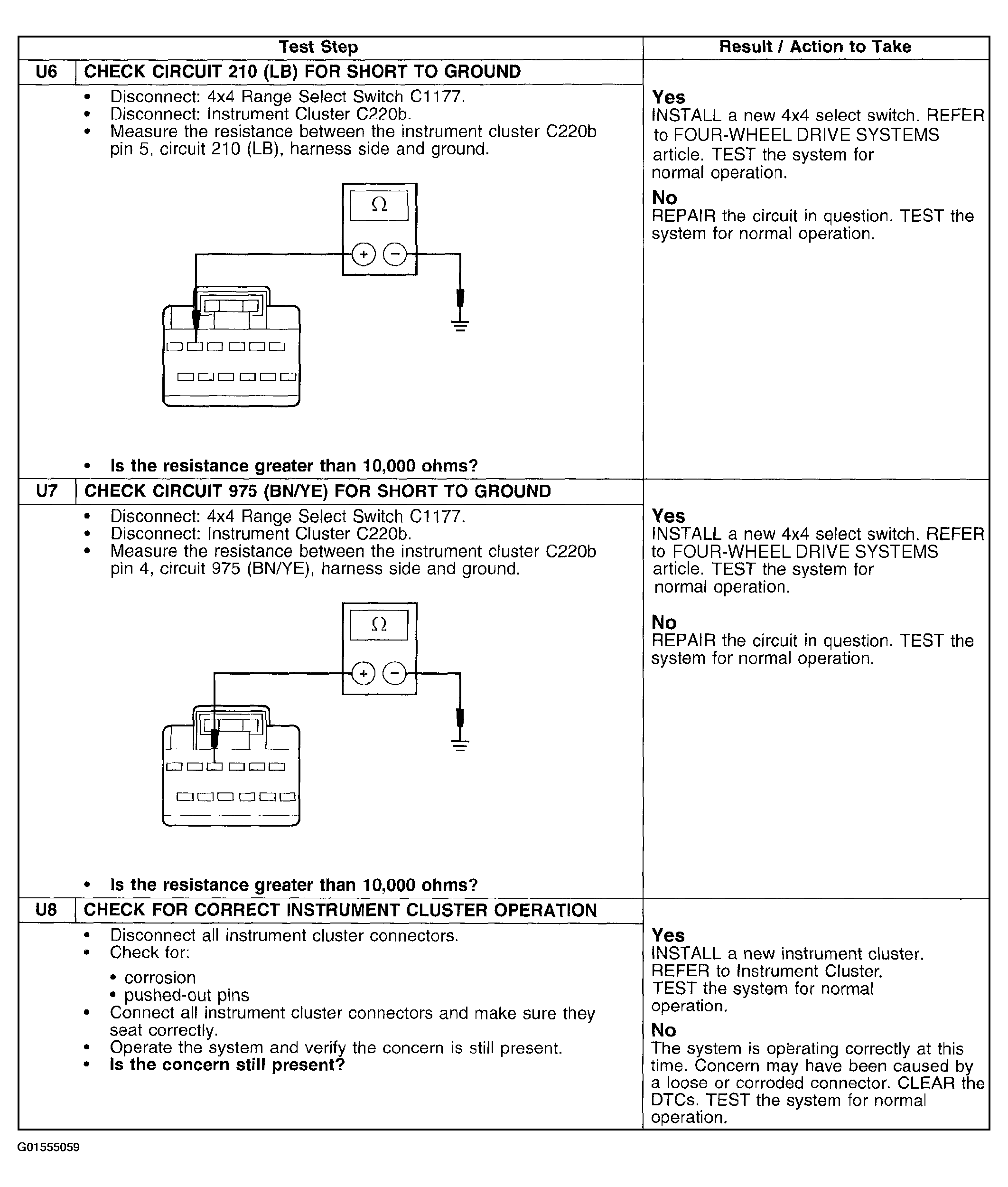

Fig 3: Pinpoint Test U: 4X4 High/Low Range Indicator Is Never/Always On-Manual Shift (U6-U8)

Courtesy of FORD MOTOR CO.
