Pinpoint Test Q: High Beam Indicator Is Never On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

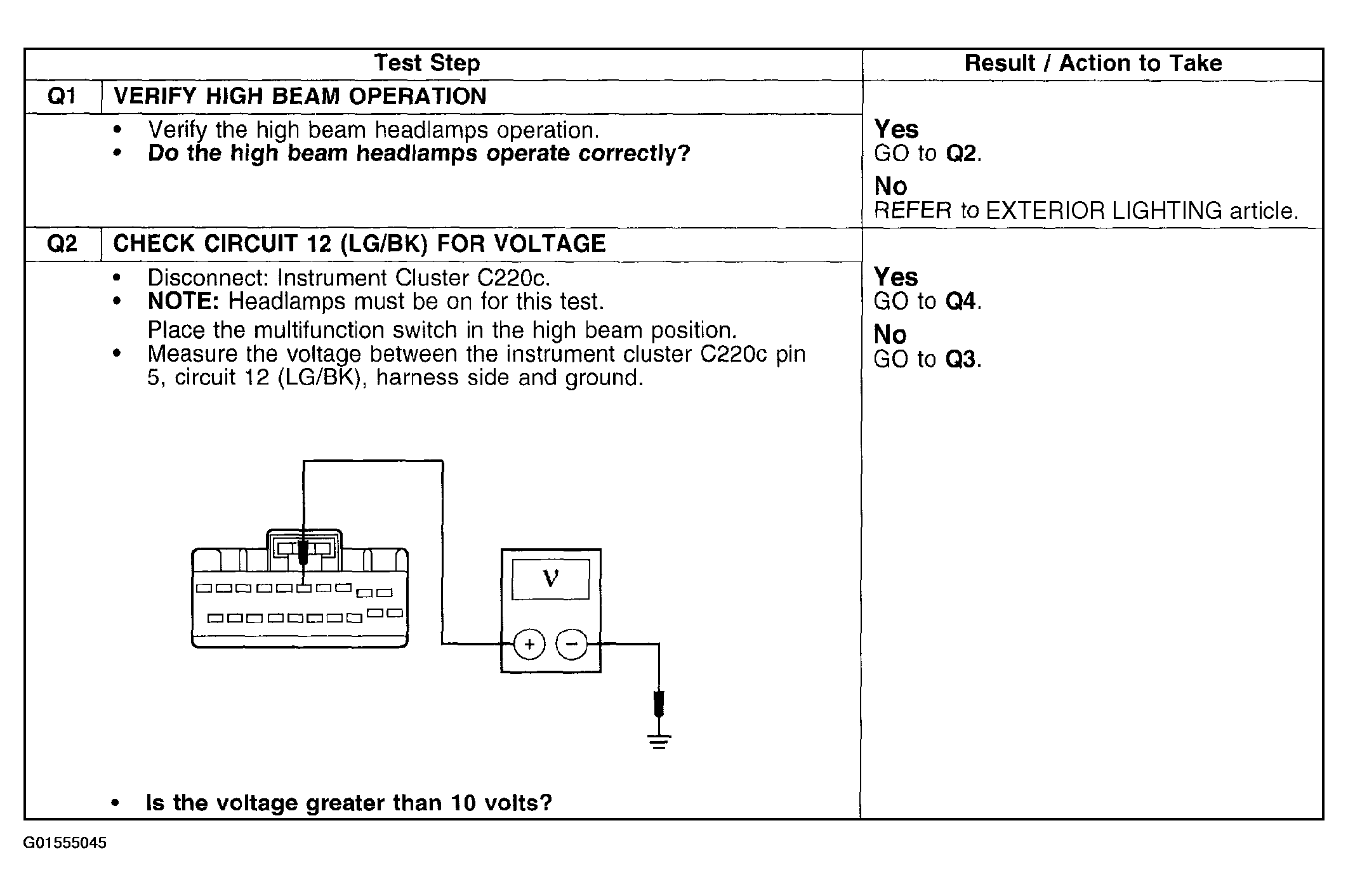

Fig 1: Pinpoint Test Q: High Beam Indicator Is Never On (Q1 & Q2)
G01555045Courtesy of FORD MOTOR CO.

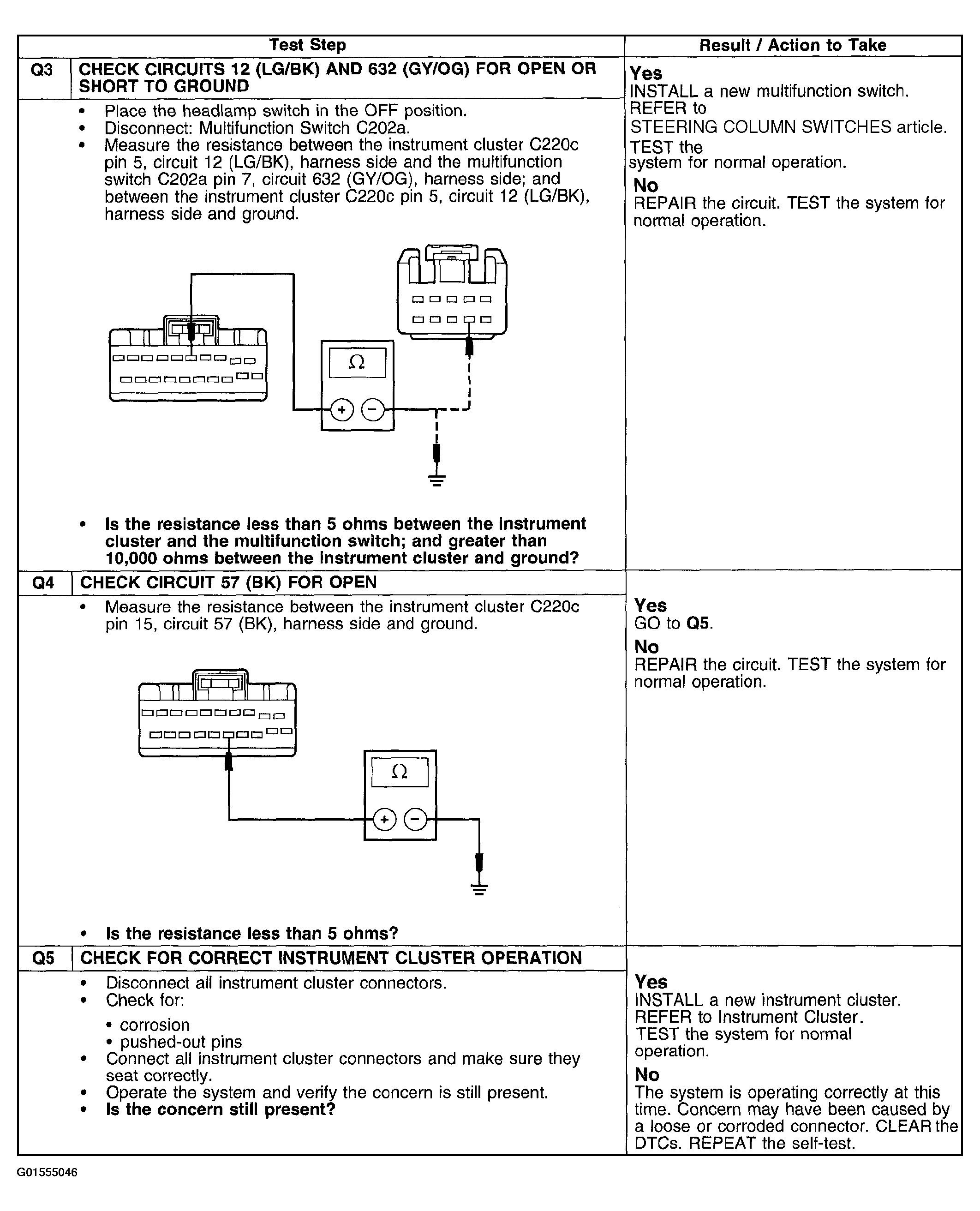

Fig 2: Pinpoint Test Q: High Beam Indicator Is Never On (Q3-Q5)
G01555046Courtesy of FORD MOTOR CO.
