Pinpoint Test N: Malfunction Indicator Lamp (Mil) Indicator Is Never On

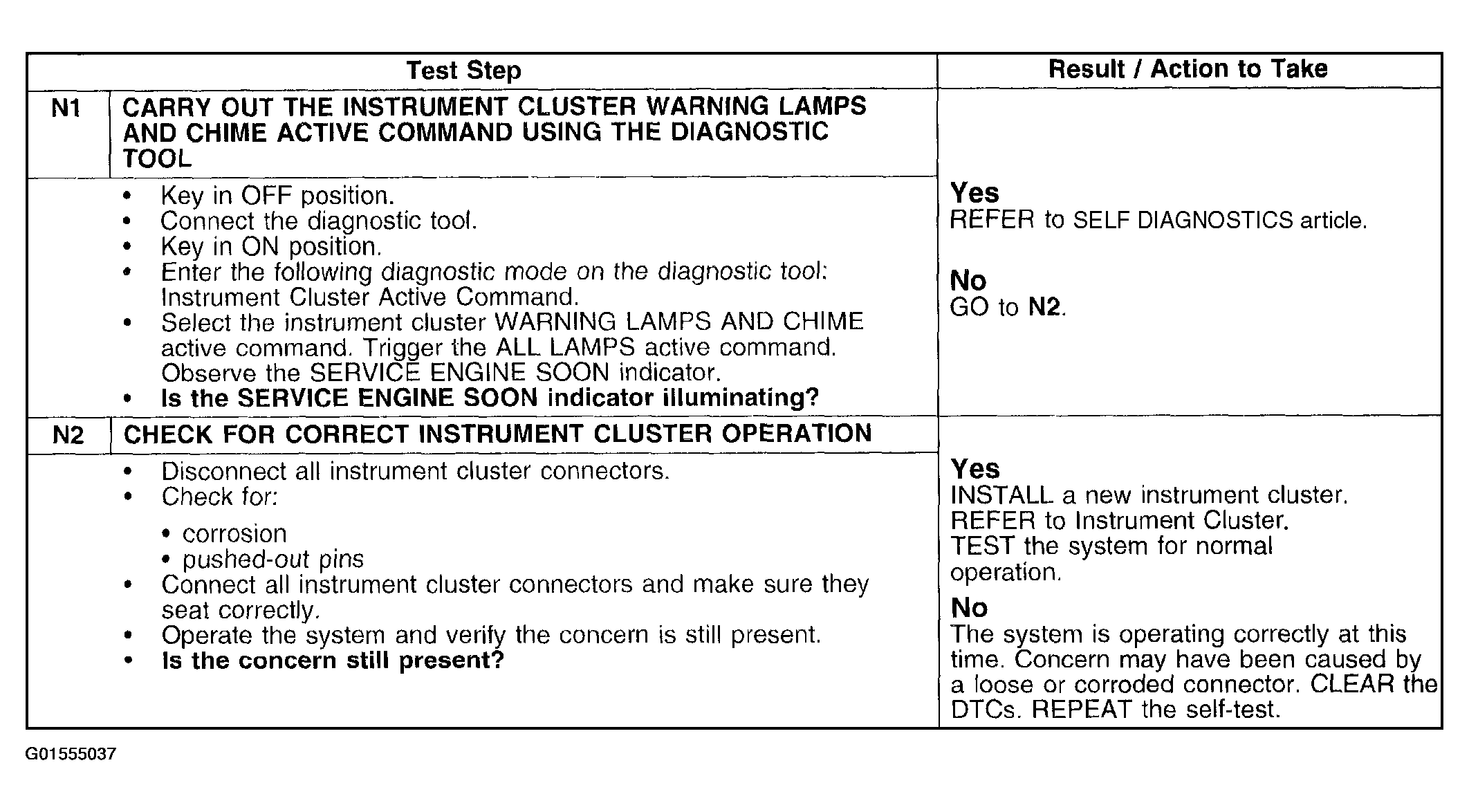

Fig 1: Pinpoint Test N: Malfunction Indicator Lamp (MIL) Indicator Is Never On (N1 & N2)

G01555037

Courtesy of FORD MOTOR CO.
