Pinpoint Test B: No Communication With Message Center - F Series Superduty

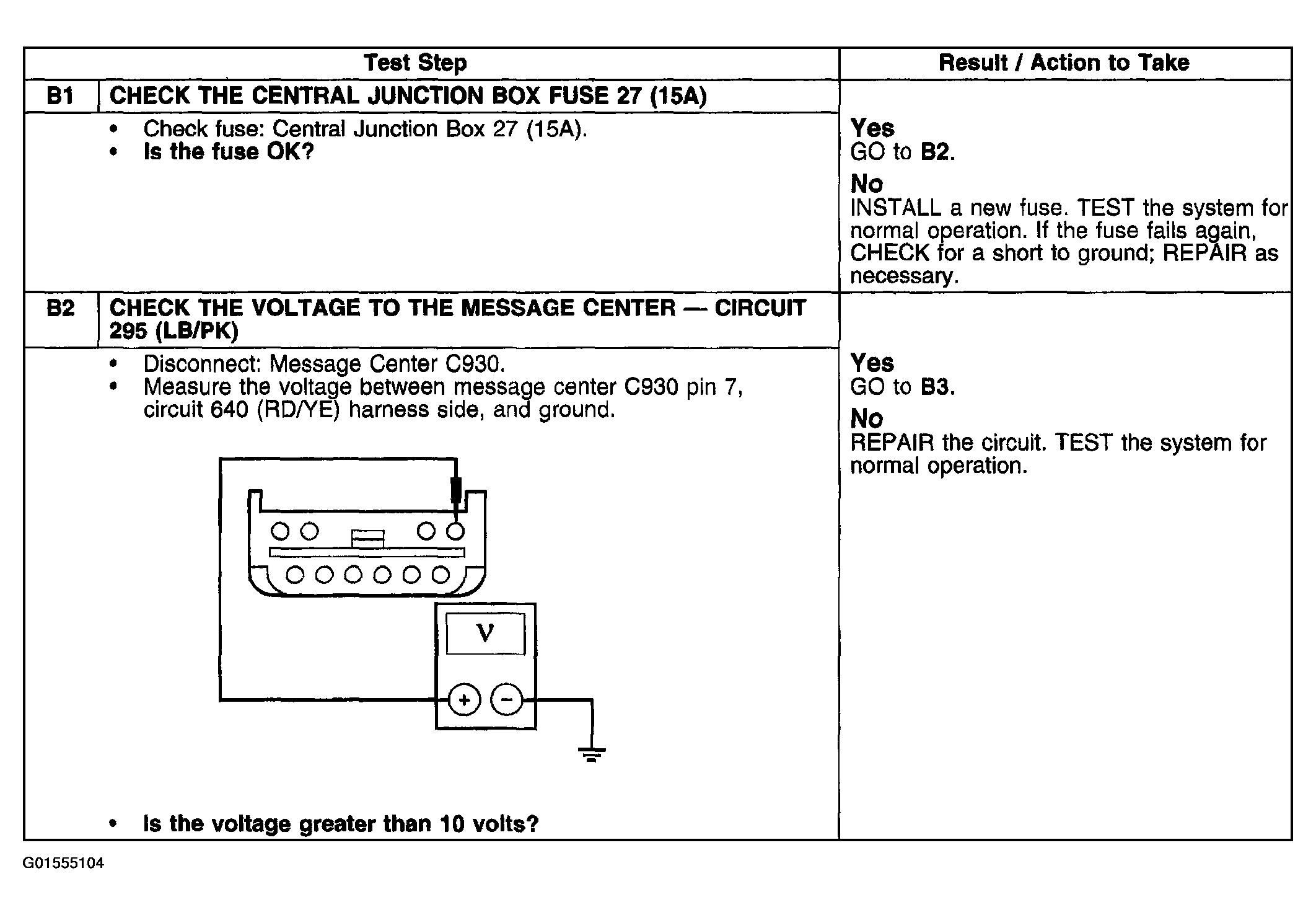

Fig 1: Pinpoint Test B: No Communication With Message Center - F Series Superduty (B1 & B2)
G01555104Courtesy of FORD MOTOR CO.

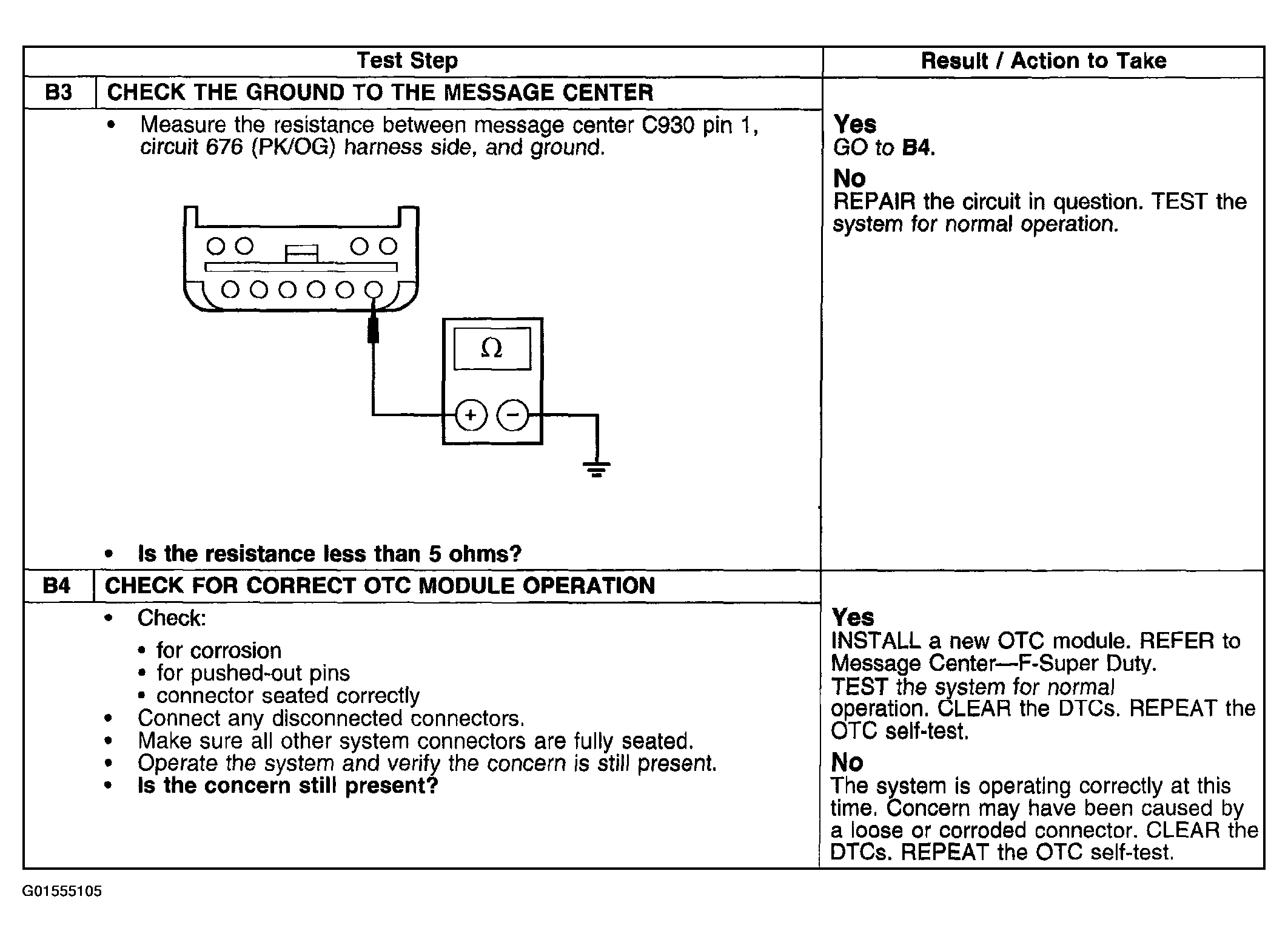

Fig 2: Pinpoint Test B: No Communication With Message Center - F Series Superduty (B3 & B4)
G01555105Courtesy of FORD MOTOR CO.
