Pinpoint Test A: Ignition Switch Is Inoperative

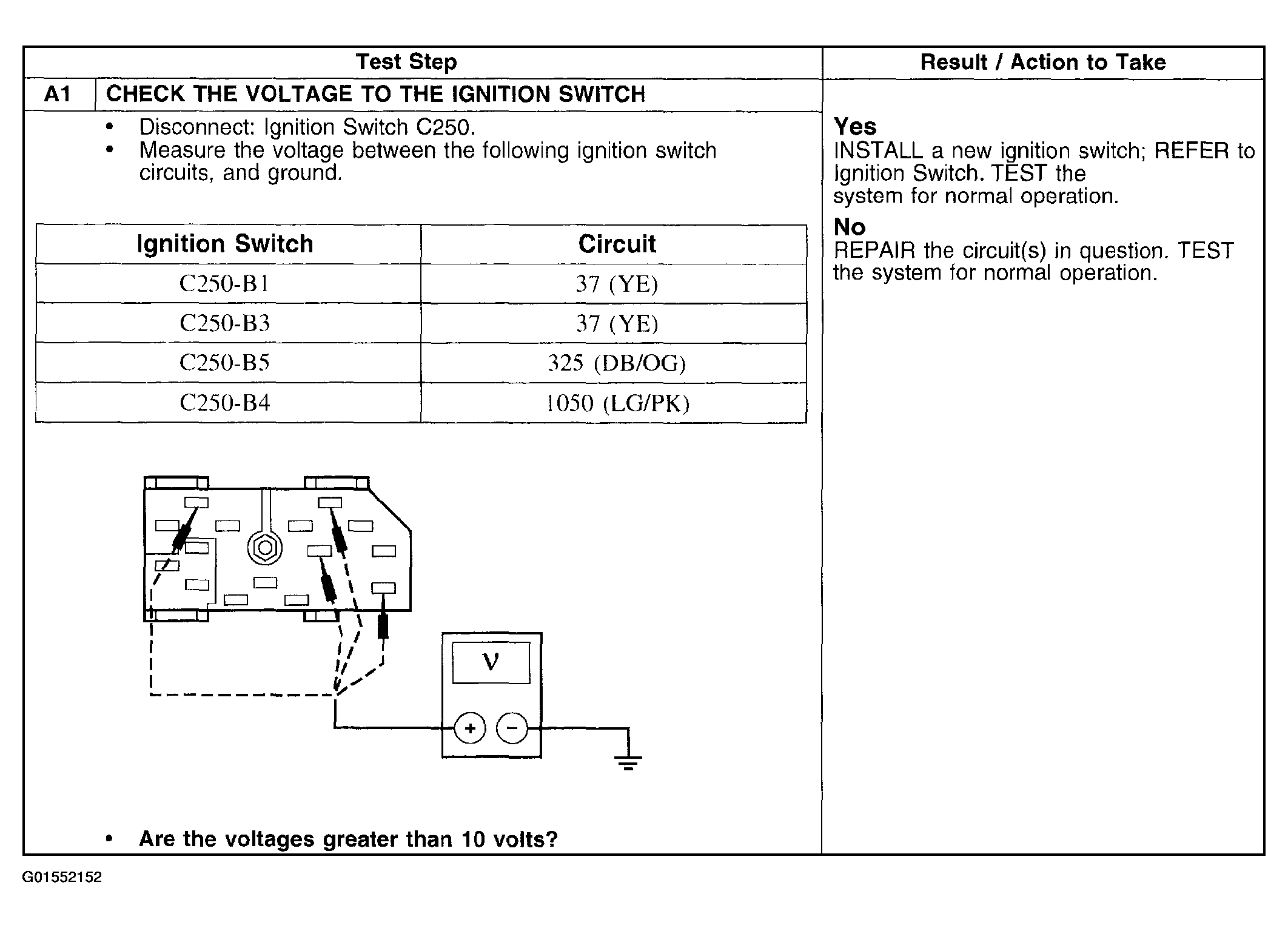

Fig 1: Pinpoint Test A: Ignition Switch Is Inoperative (A1)

G01552152

Courtesy of FORD MOTOR CO.
