Pinpoint Test C: No Power In Run

Fig 1: Pinpoint Test C: No Power In Run (C1)
G01552154Courtesy of FORD MOTOR CO.

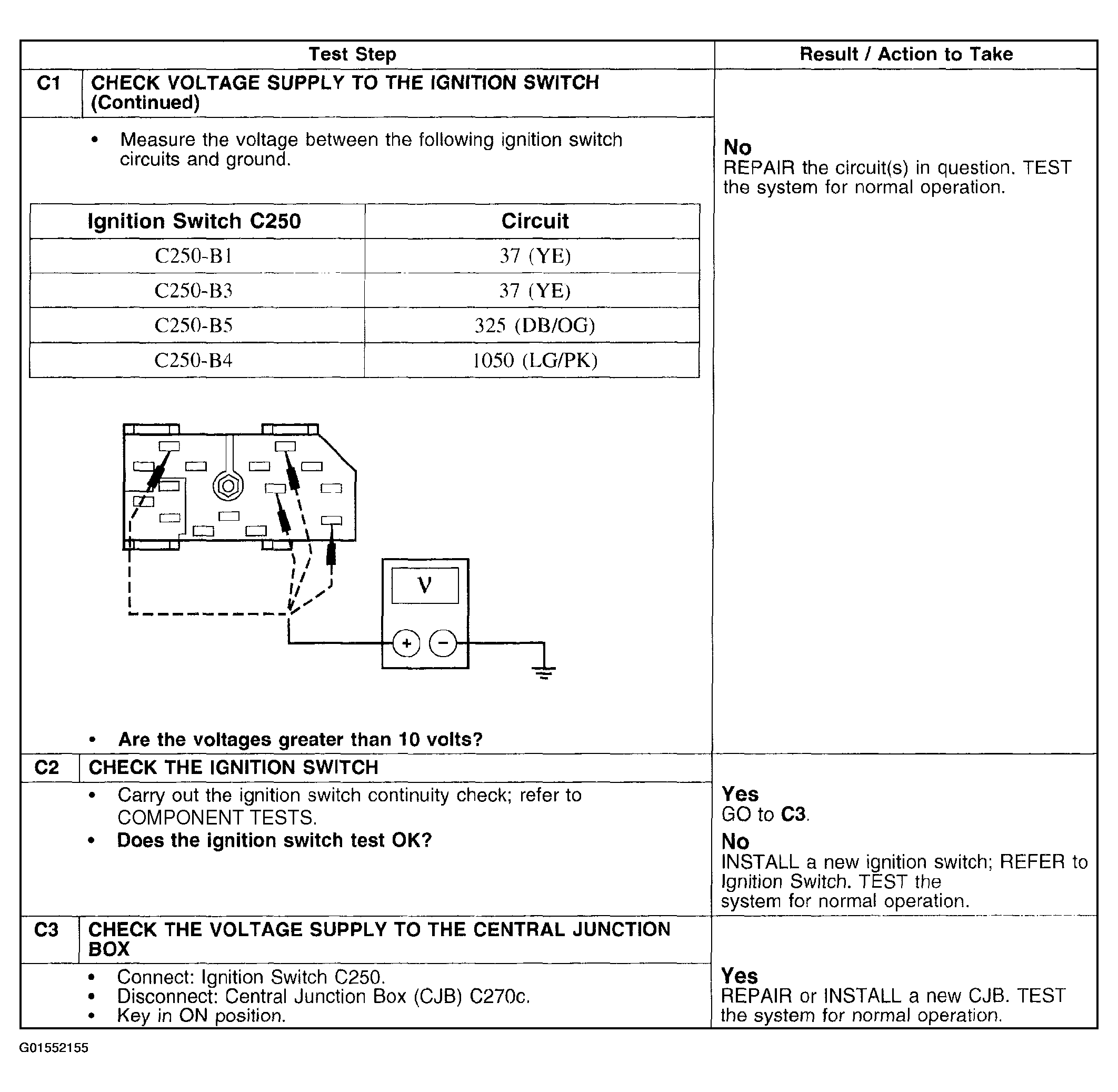

Fig 2: Pinpoint Test C: No Power In Run (C1 Cont.- C3)
G01552155Courtesy of FORD MOTOR CO.

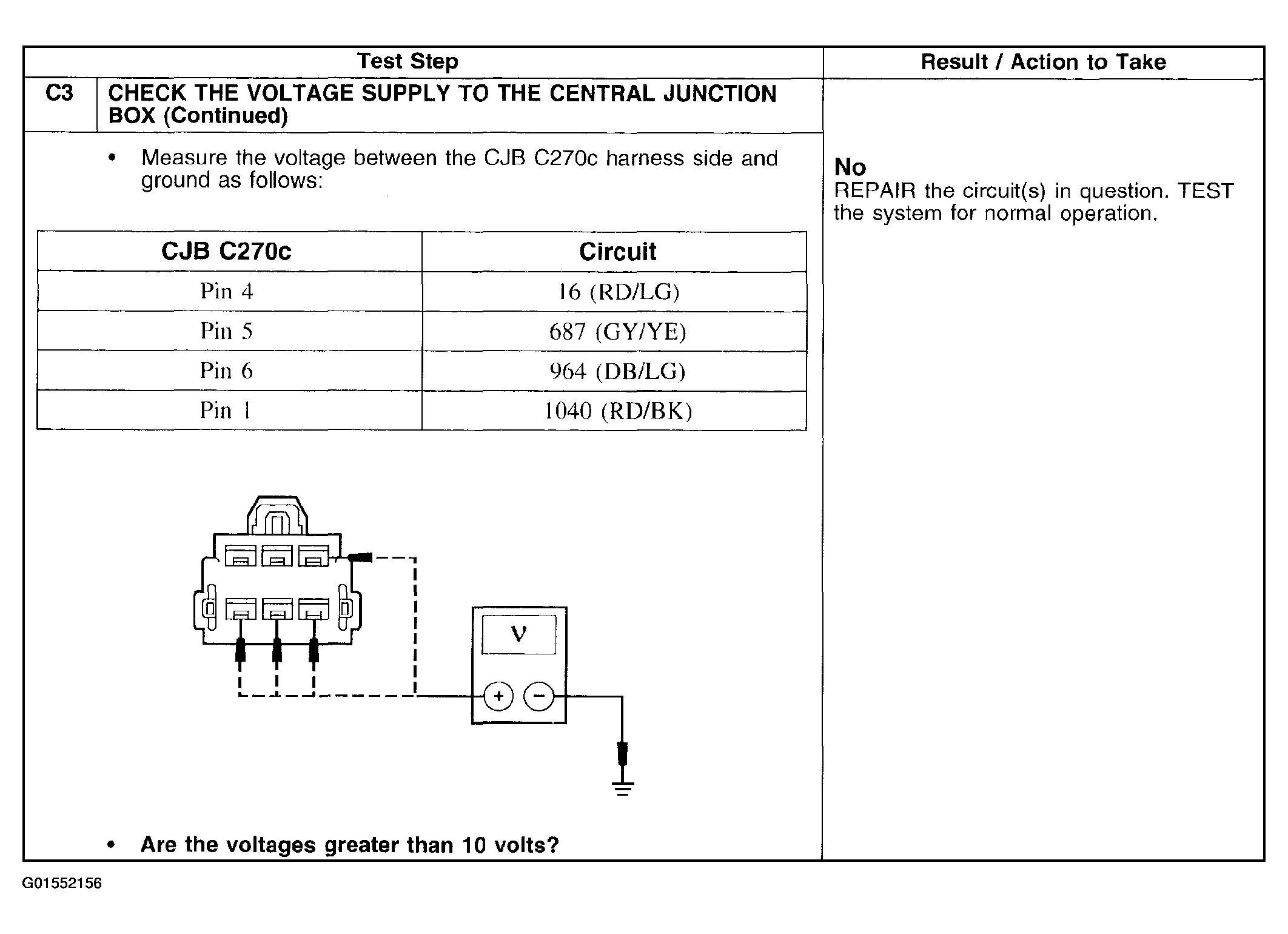

Fig 3: Pinpoint Test C: No Power In Run (C3)
G01552156Courtesy of FORD MOTOR CO.
