Wheels & Tires - Excursion & F250-F550 Super Duty
>>
Diagnosis And Testing
>>
Wheels And Tires
>>
Symptom Chart
Symptom Chart

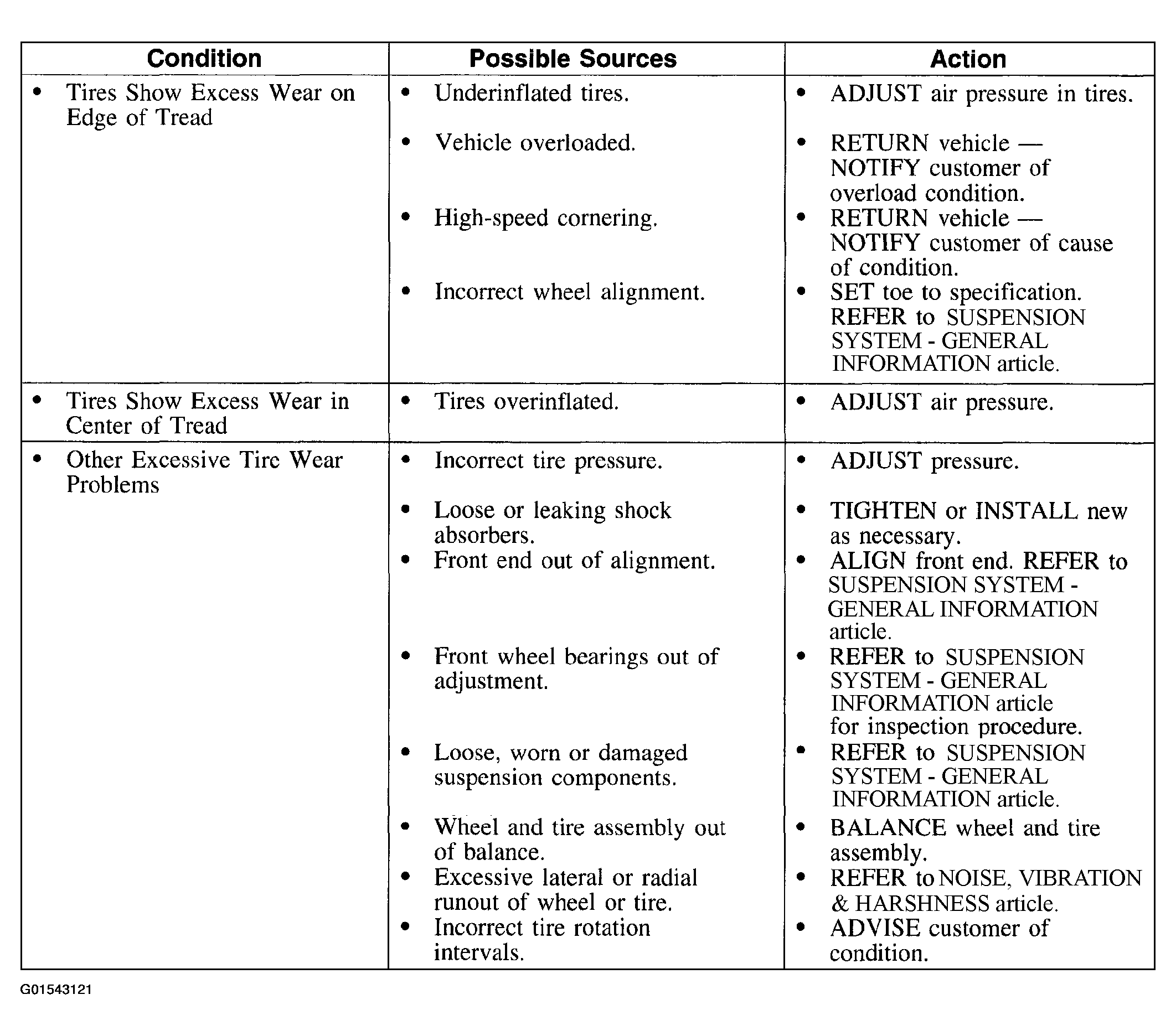

Fig 1: Symptom Diagnosis And Testing Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

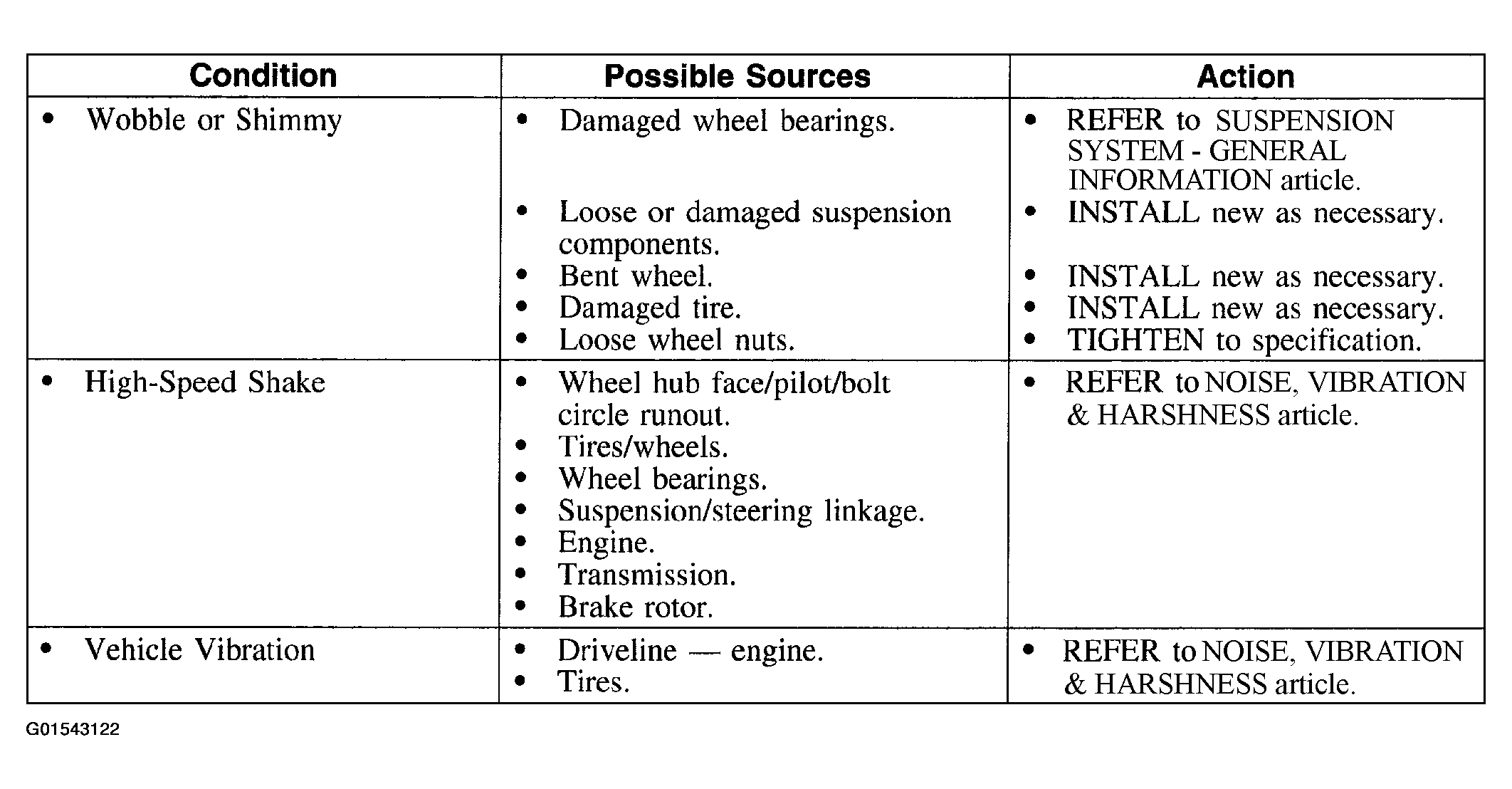

Fig 2: Symptom Diagnosis And Testing Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
