Pcm Connector Identification

WARNING: This page is about a different variant/trim than selected.

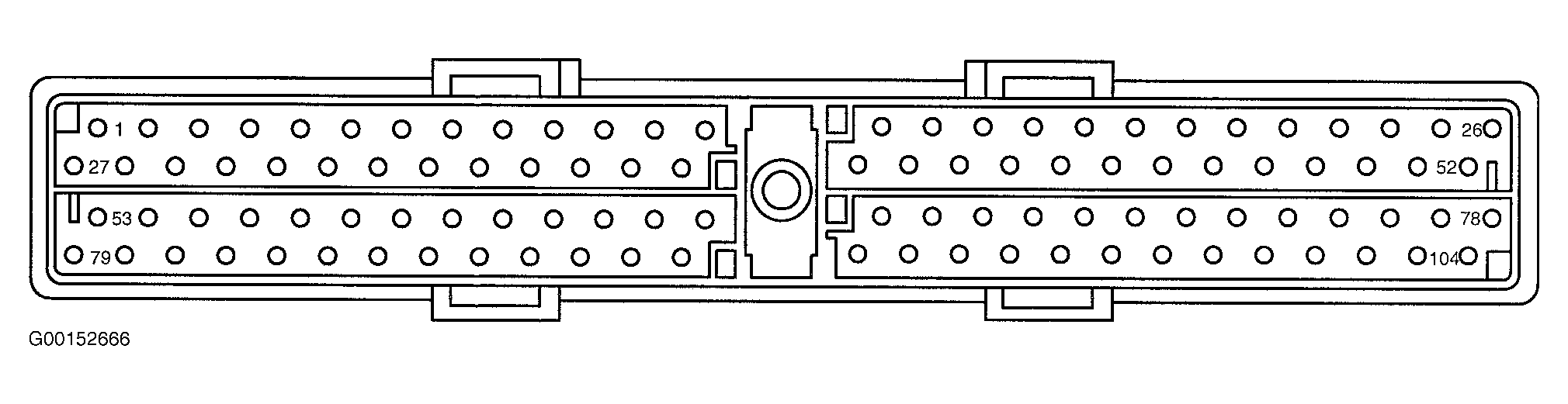

Fig 1: Identifying PCM Connector Terminals (Econoline, Excursion & F250-550)

Courtesy of FORD MOTOR CO.

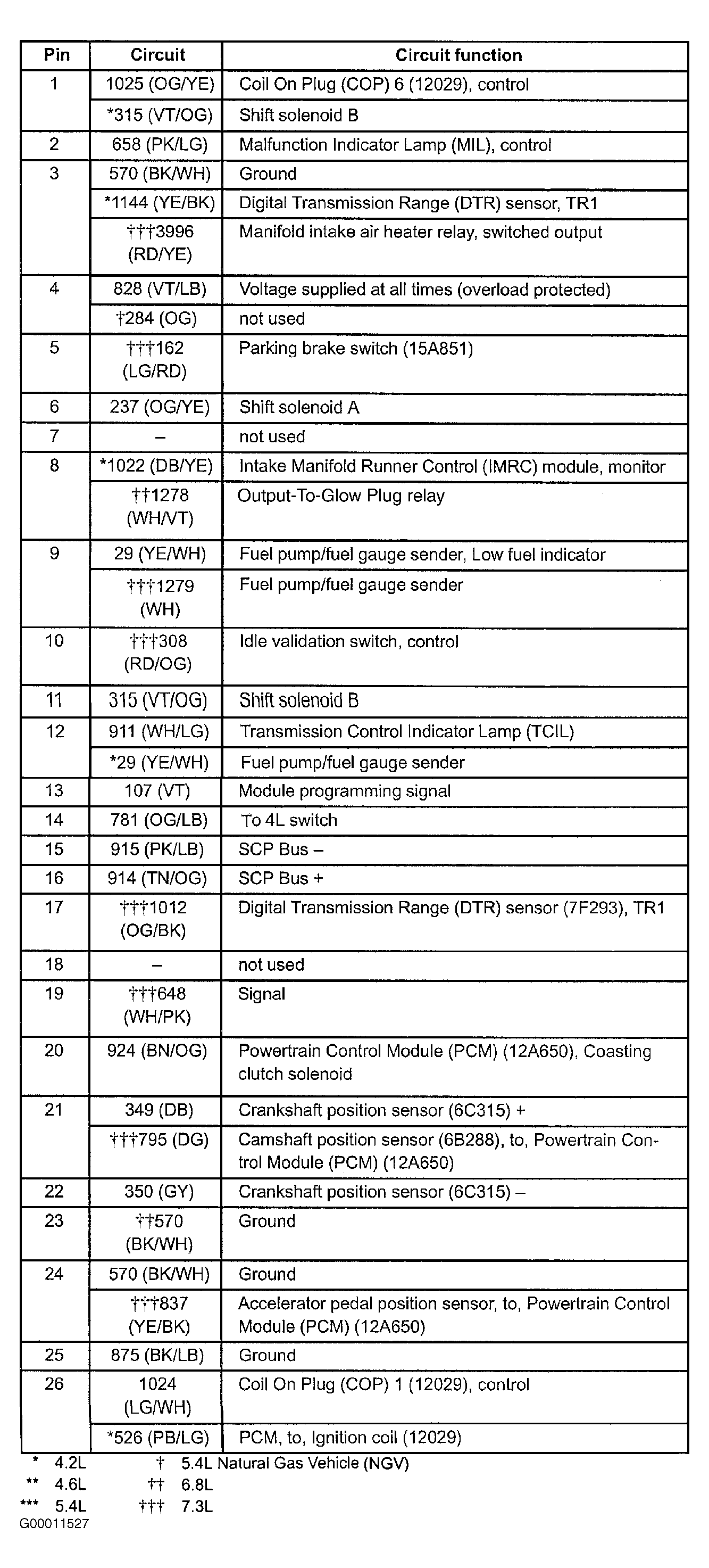

Fig 2: Identifying PCM Connector Circuit Functions (Econoline - 1 Of 6)

Courtesy of FORD MOTOR CO.

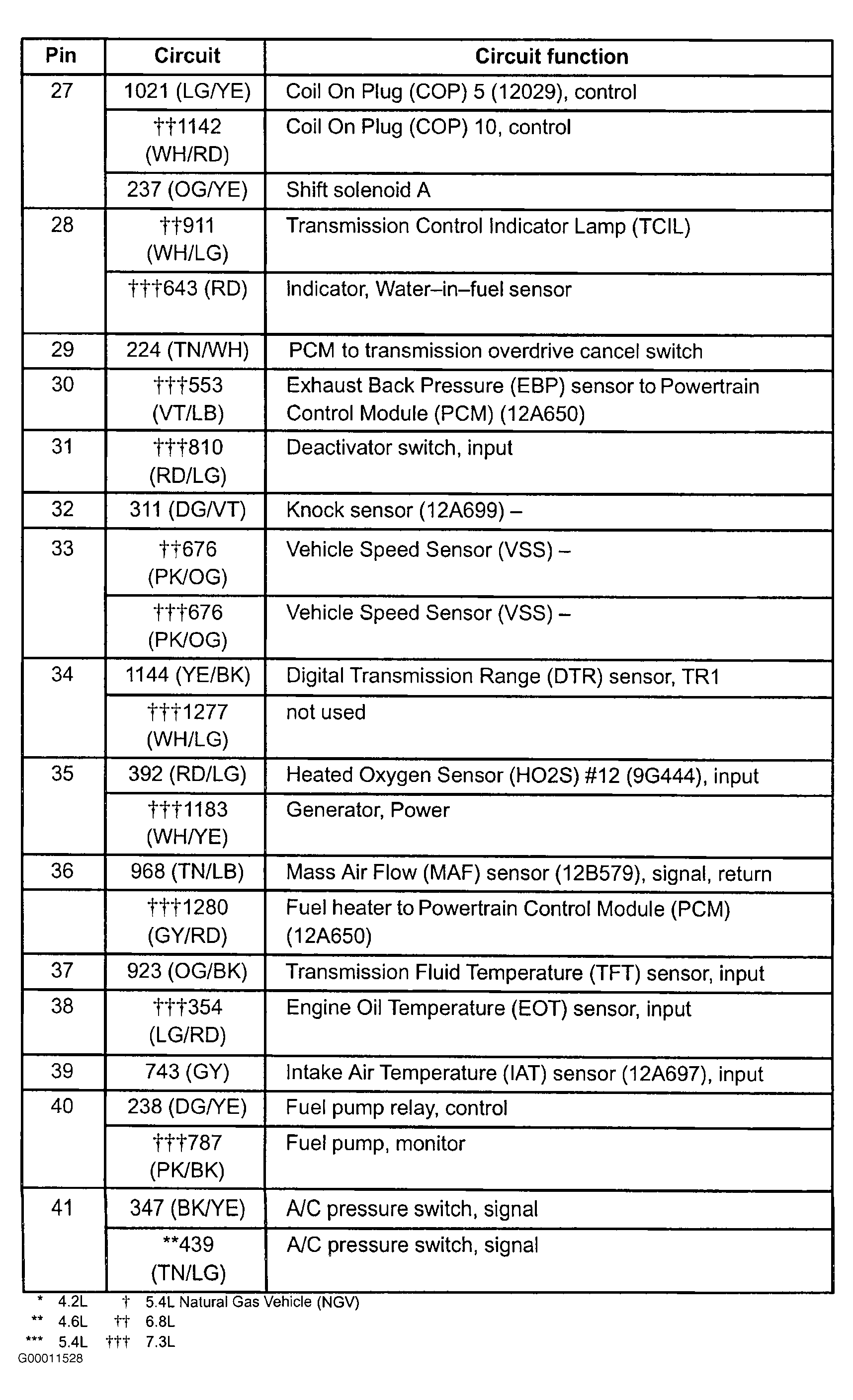

Fig 3: Identifying PCM Connector Circuit Functions (Econoline - 2 Of 6)

Courtesy of FORD MOTOR CO.

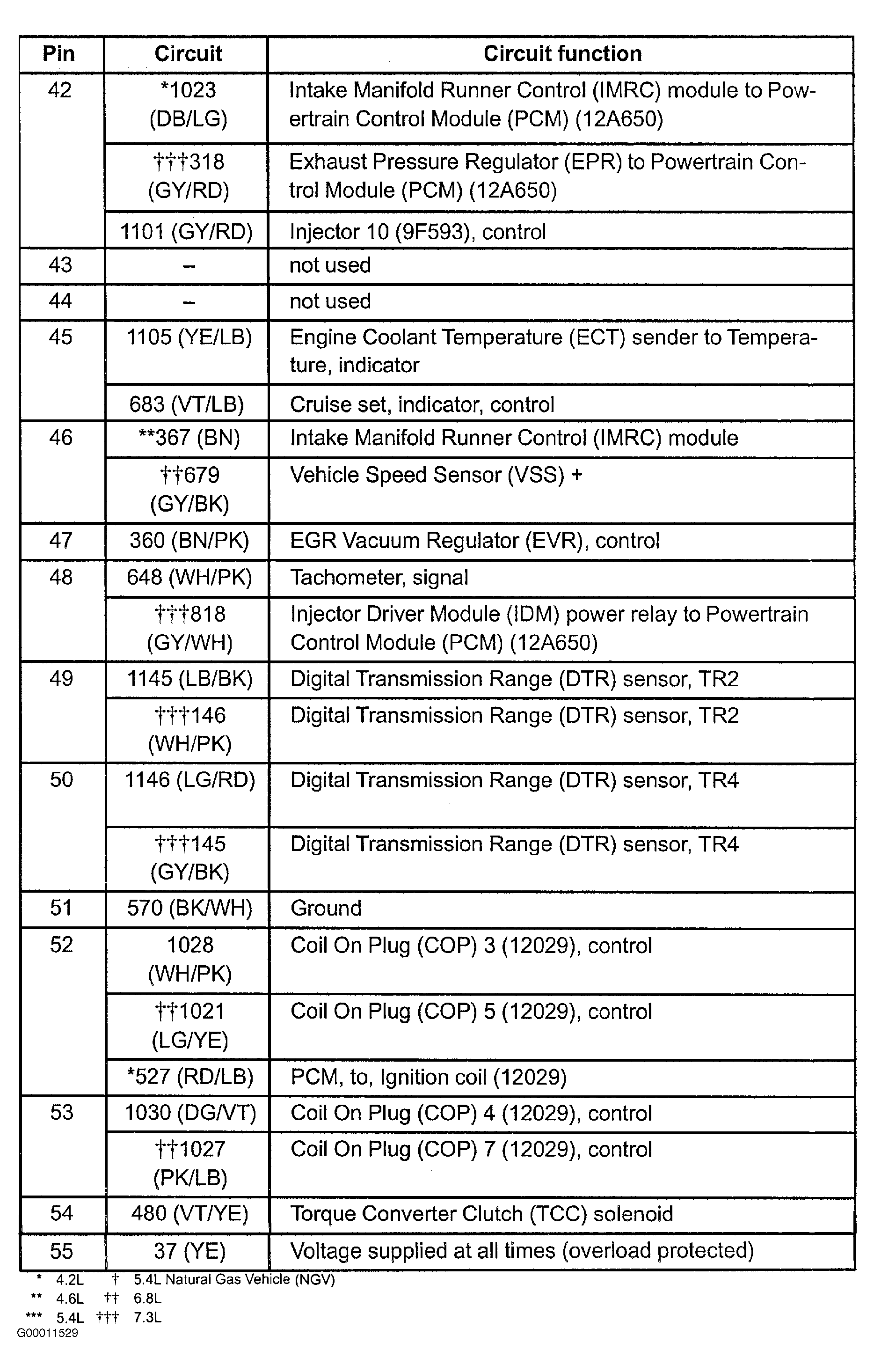

Fig 4: Identifying PCM Connector Circuit Functions (Econoline - 3 Of 6)

Courtesy of FORD MOTOR CO.

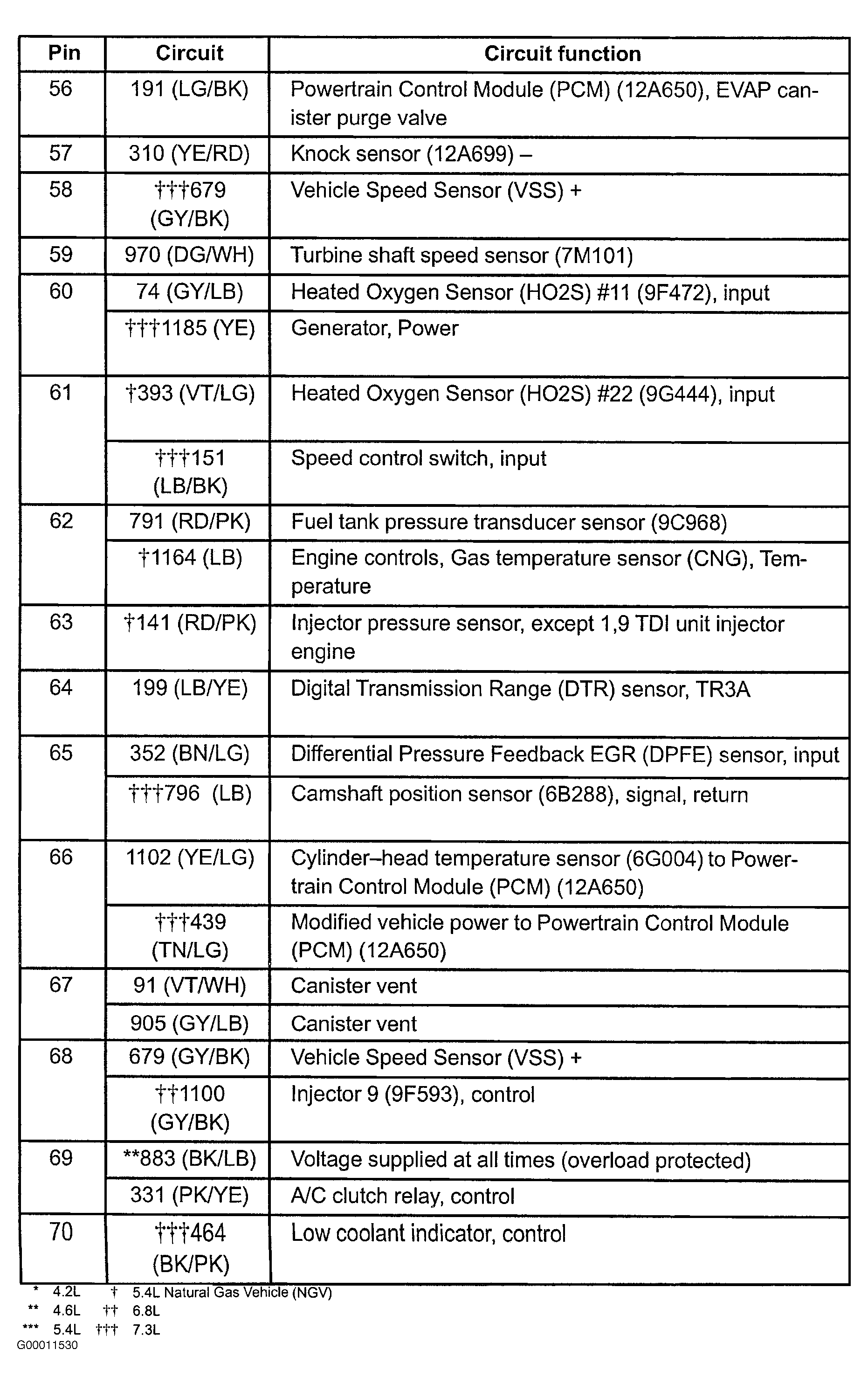

Fig 5: Identifying PCM Connector Circuit Functions (Econoline - 4 Of 6)

Courtesy of FORD MOTOR CO.

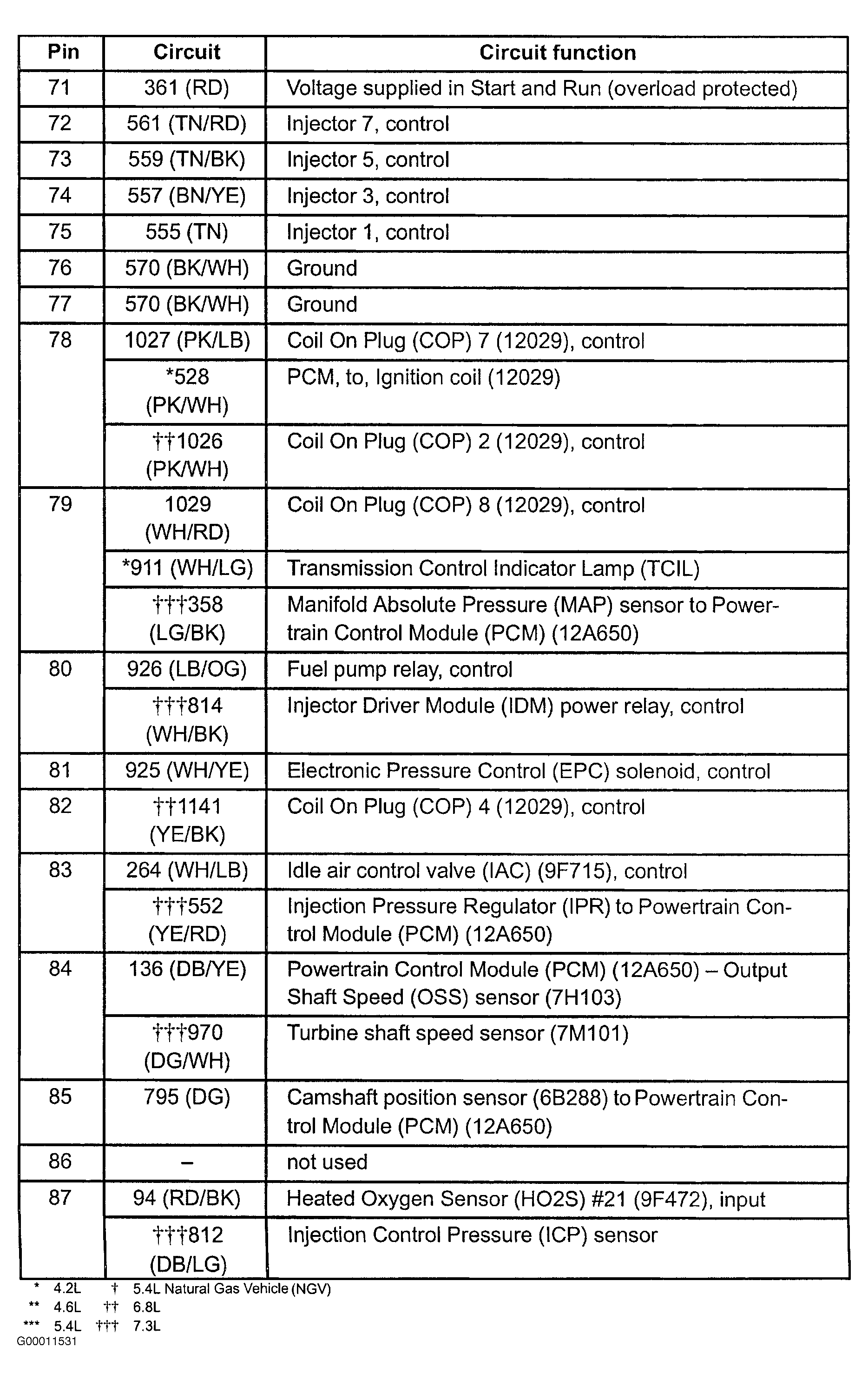

Fig 6: Identifying PCM Connector Circuit Functions (Econoline - 5 Of 6)

Courtesy of FORD MOTOR CO.

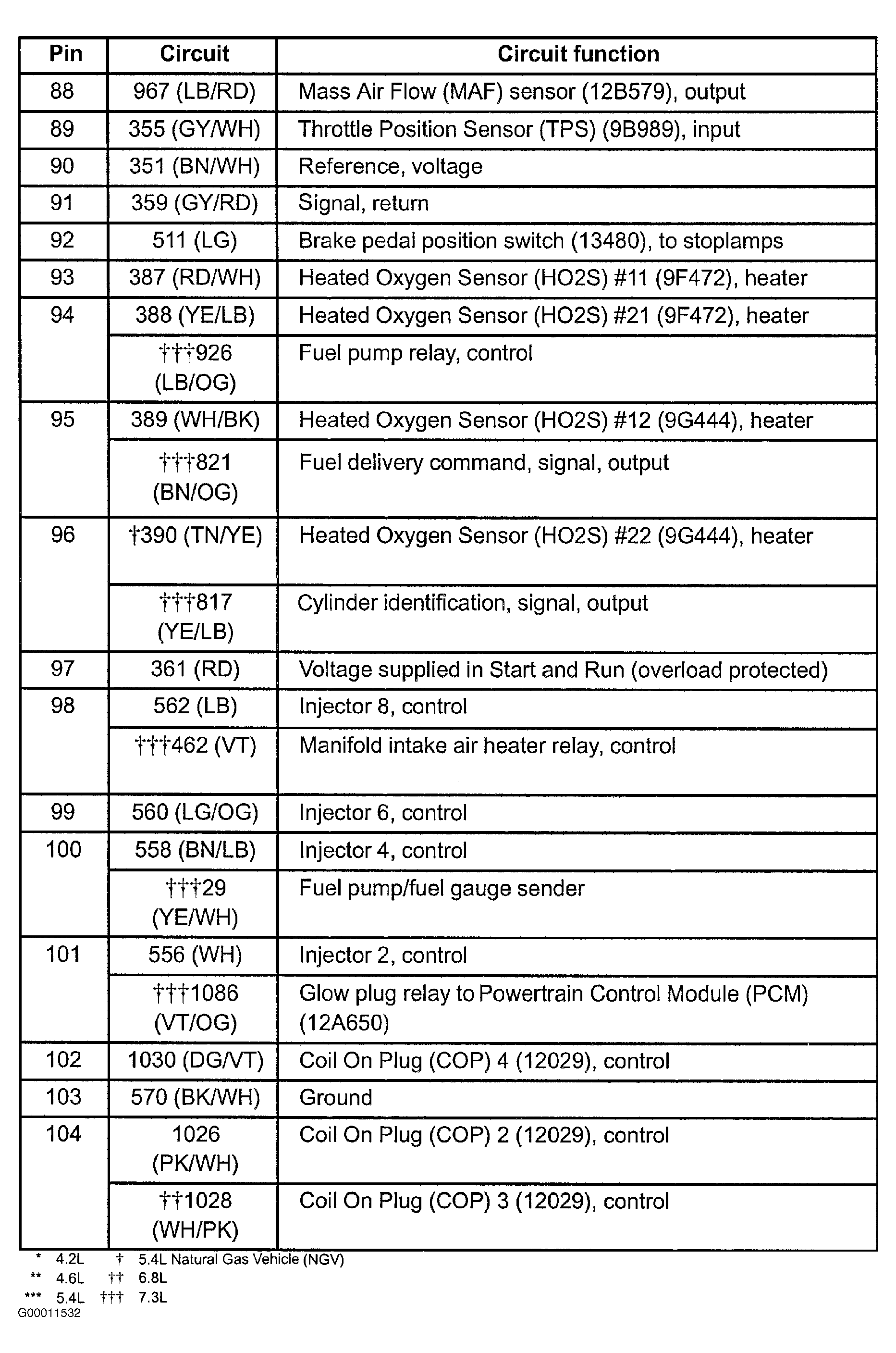

Fig 7: Identifying PCM Connector Circuit Functions (Econoline - 6 Of 6)

Courtesy of FORD MOTOR CO.

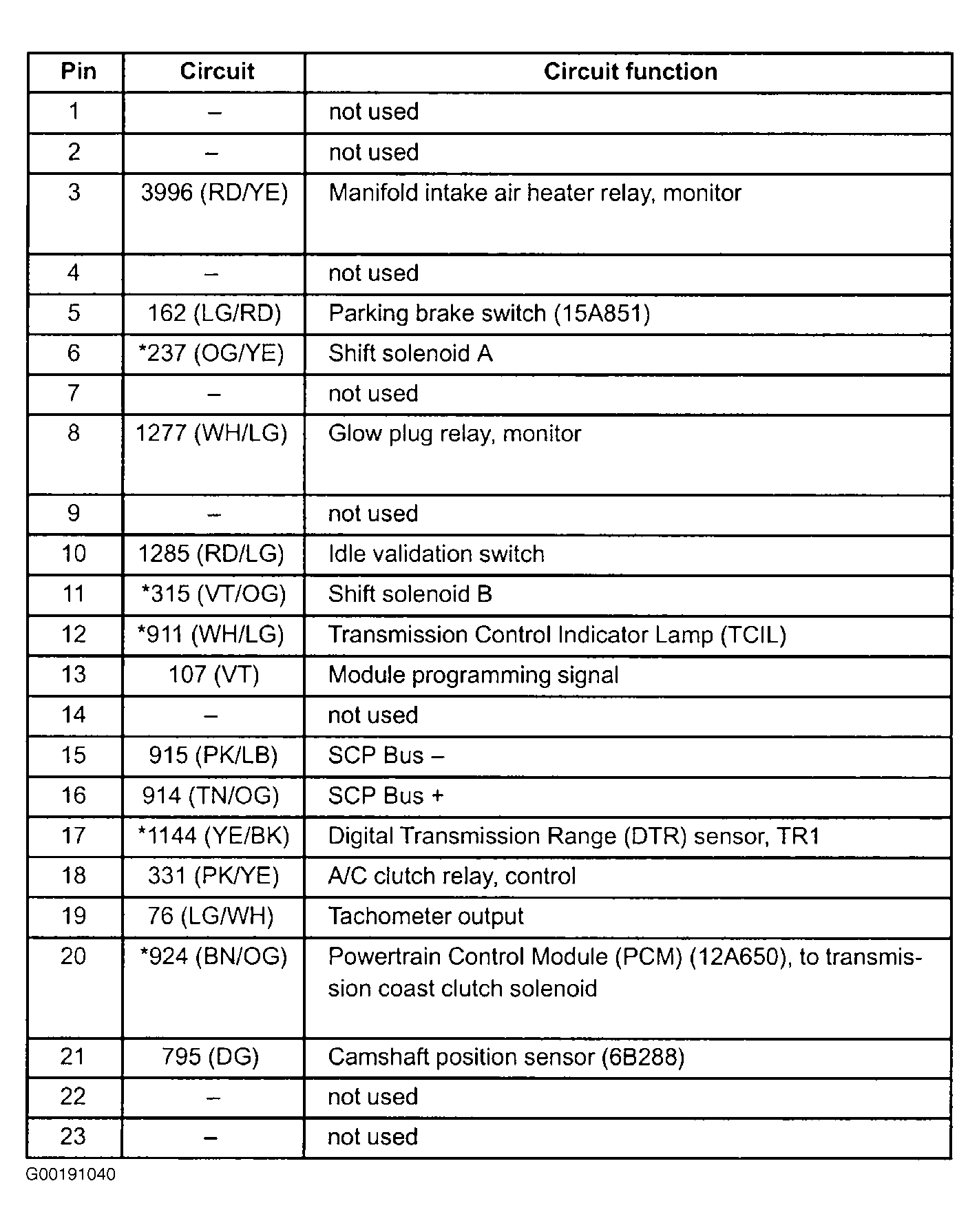

Fig 8: Identifying PCM Connector Circuit Functions (Excursion & F250-550 - 1 Of 4)

Courtesy of FORD MOTOR CO.

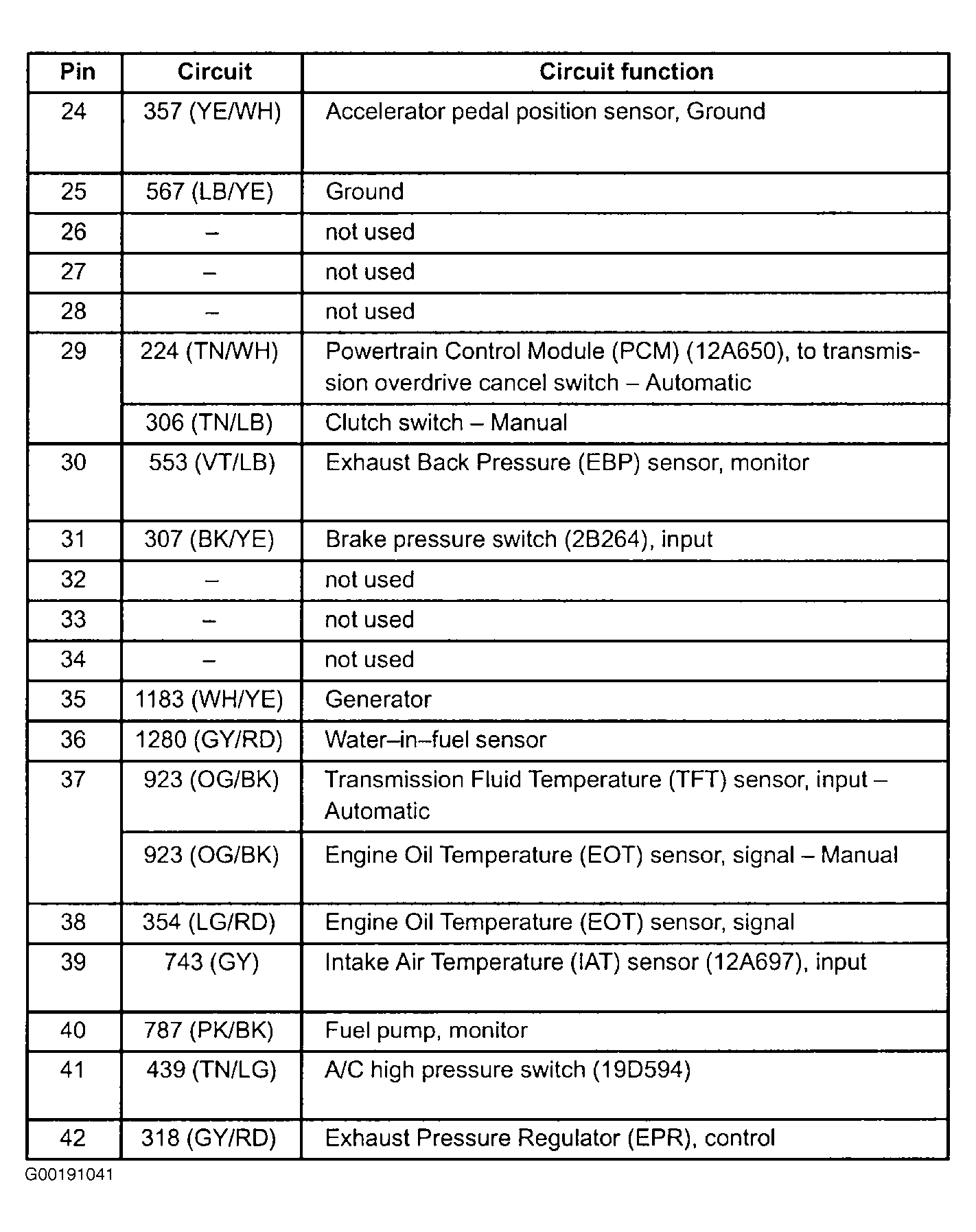

Fig 9: Identifying PCM Connector Circuit Functions (Excursion & F250-550 - 2 Of 4)

Courtesy of FORD MOTOR CO.

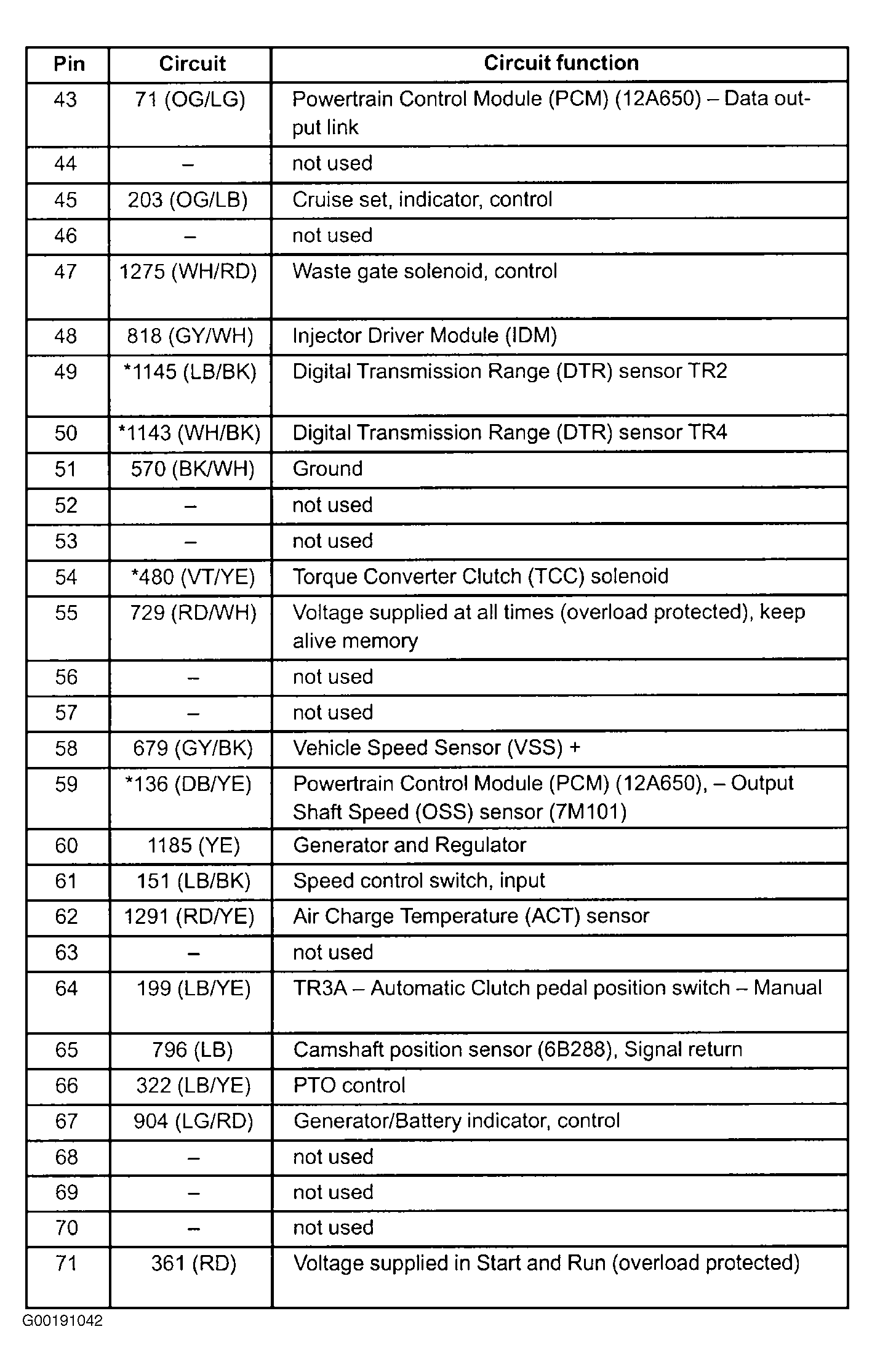

Fig 10: Identifying PCM Connector Circuit Functions (Excursion & F250-550 - 3 Of 4)

Courtesy of FORD MOTOR CO.

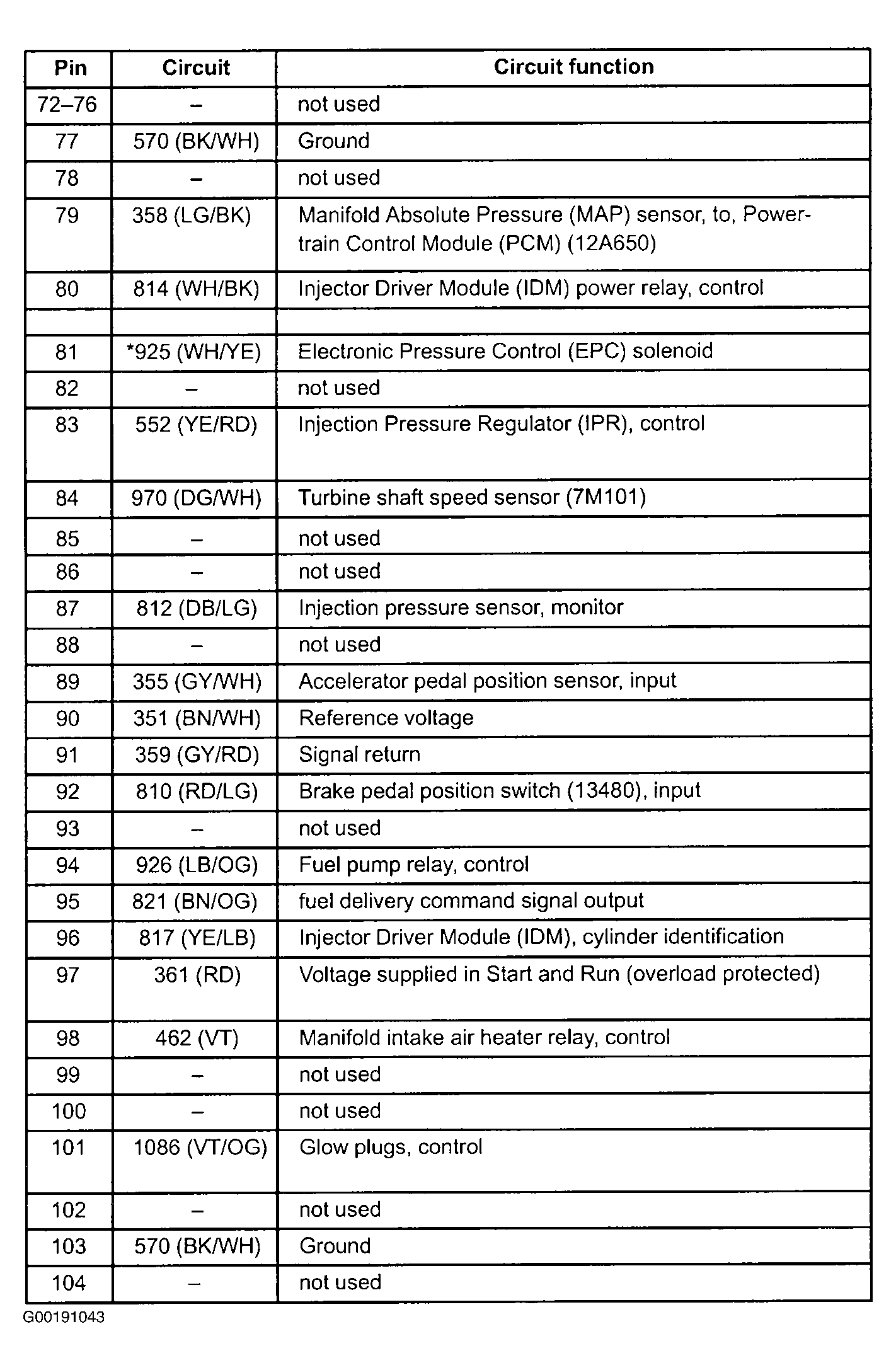

Fig 11: Identifying PCM Connector Circuit Functions (Excursion & F250-550 - 4 Of 4)

Courtesy of FORD MOTOR CO.

Fig 12: Identifying PCM Connector Terminals (F650-750)

Courtesy of FORD MOTOR CO.

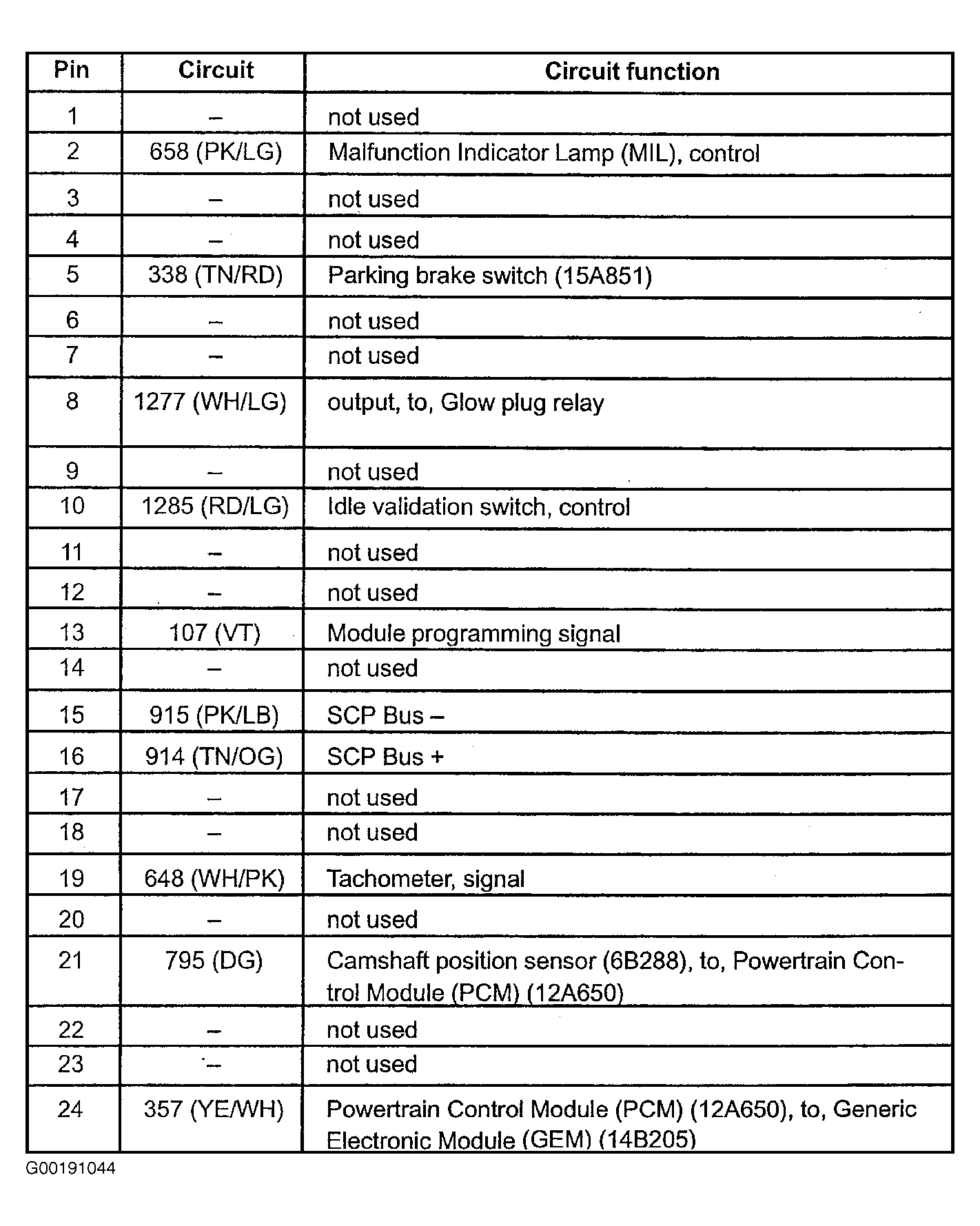

Fig 13: Identifying PCM Connector Circuit Functions (F650-750 - 1 Of 4)

Courtesy of FORD MOTOR CO.

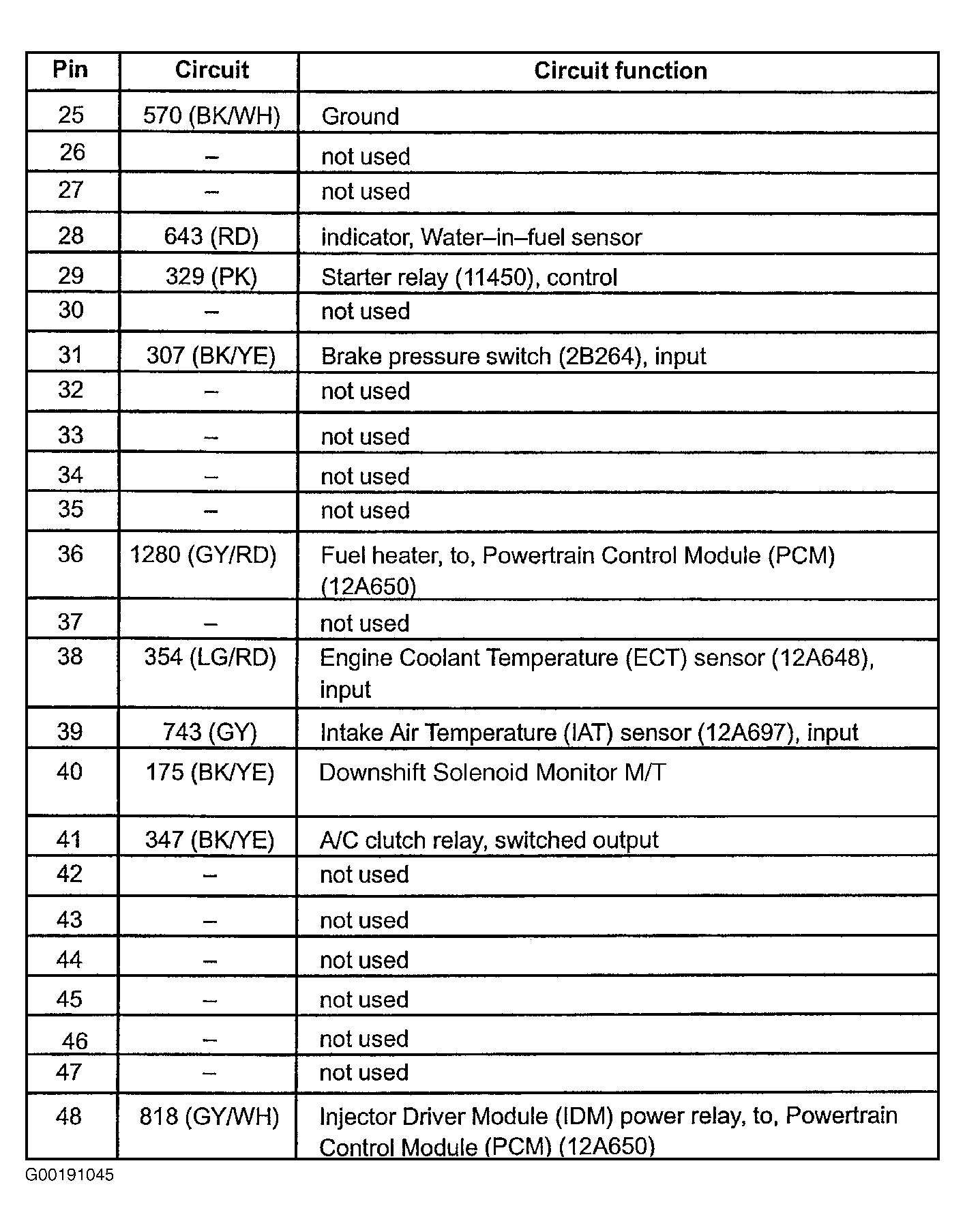

Fig 14: Identifying PCM Connector Circuit Functions (F650-750 - 2 Of 4)

Courtesy of FORD MOTOR CO.

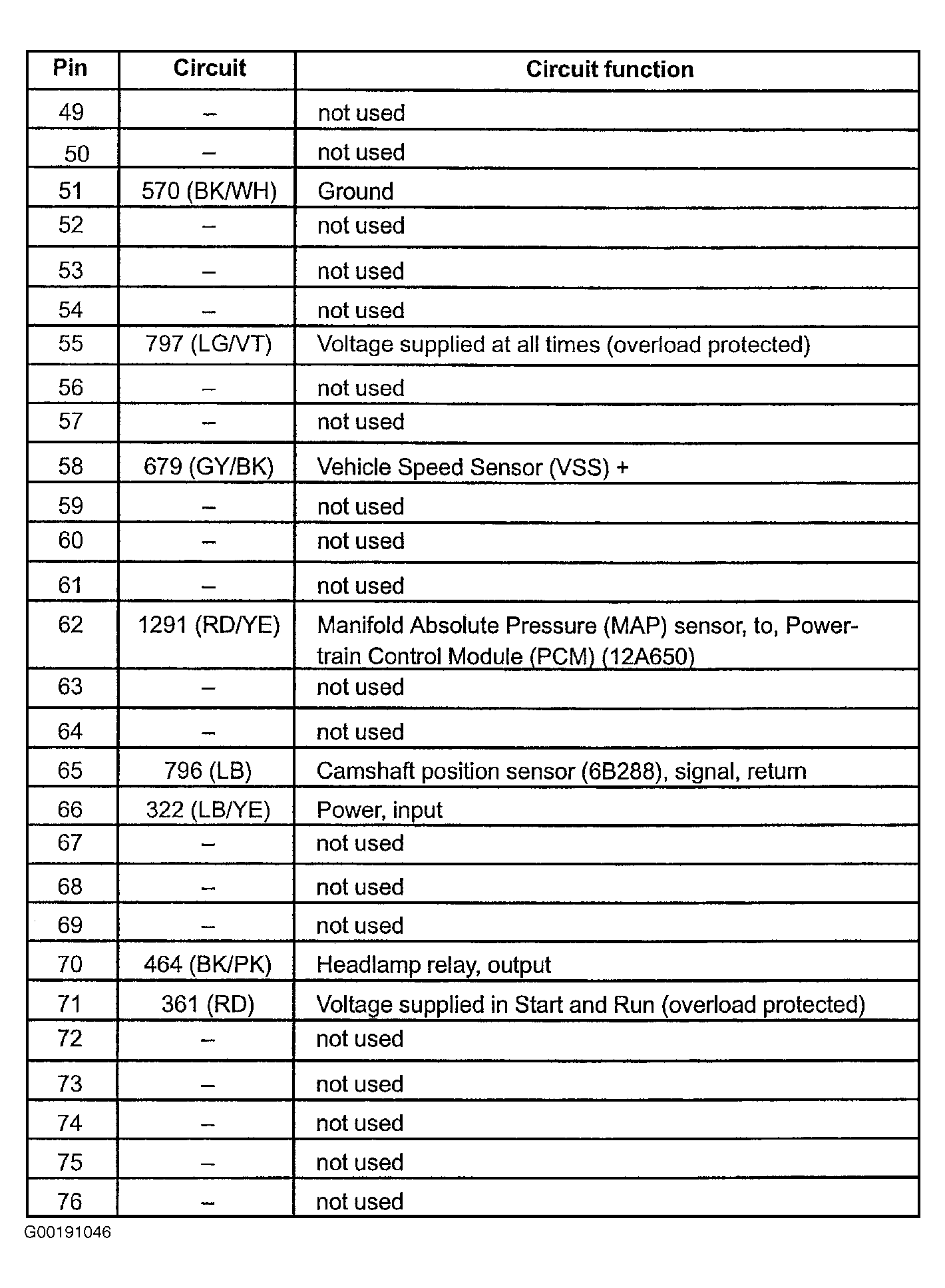

Fig 15: Identifying PCM Connector Circuit Functions (F650-750 - 3 Of 4)

Courtesy of FORD MOTOR CO.

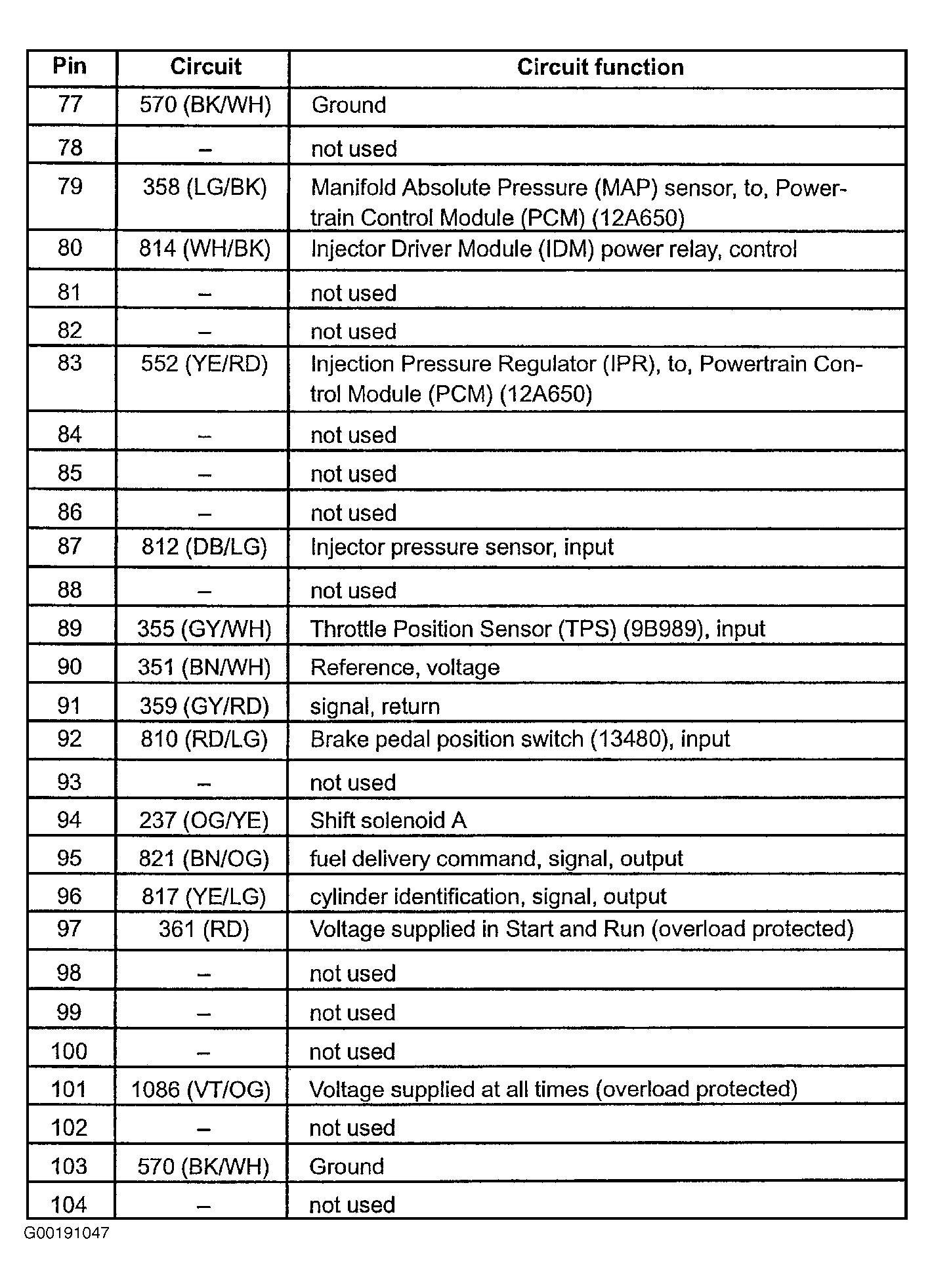

Fig 16: Identifying PCM Connector Circuit Functions (F650-750 - 4 Of 4)

Courtesy of FORD MOTOR CO.
