Pinpoint Test T: 4X4 High/Low Range Indicator Is Never/Always On-Electronic

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

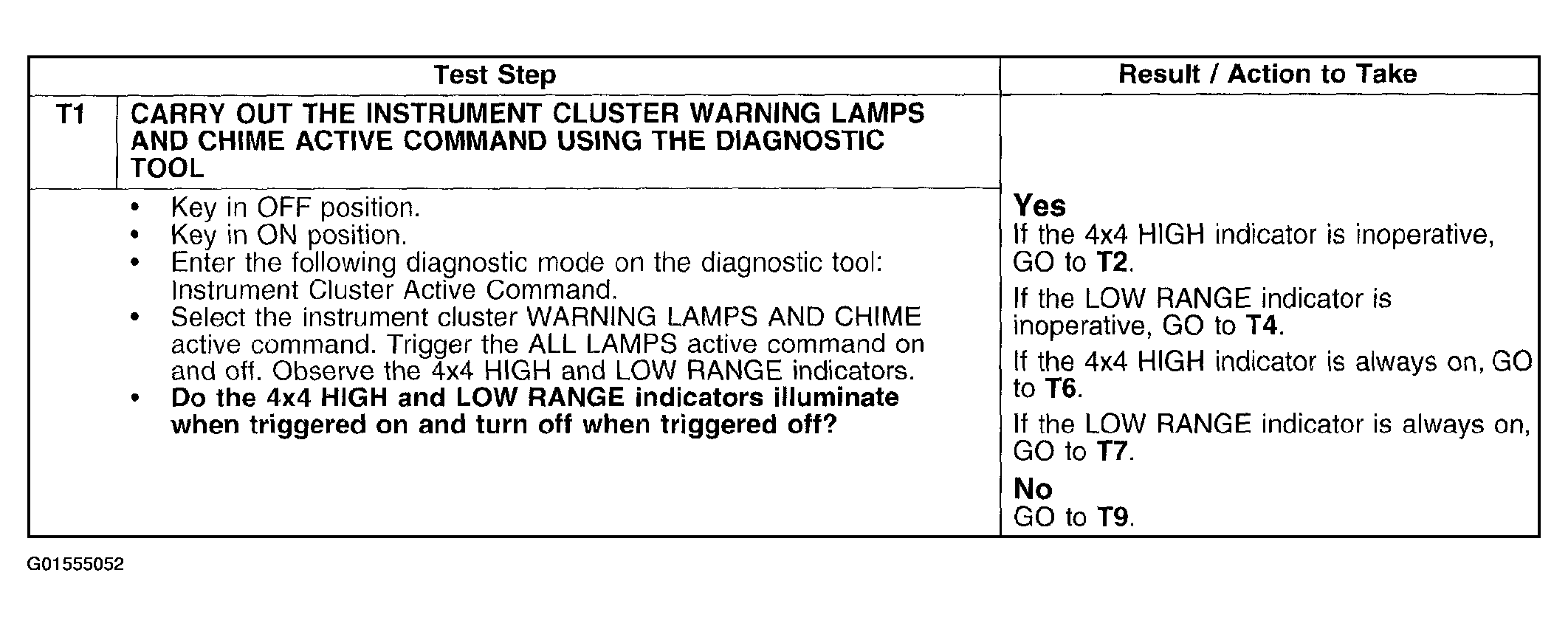

Fig 1: Pinpoint Test T: 4X4 High/Low Range Indicator Is Never/Always On-Electronic (T1)

Courtesy of FORD MOTOR CO.

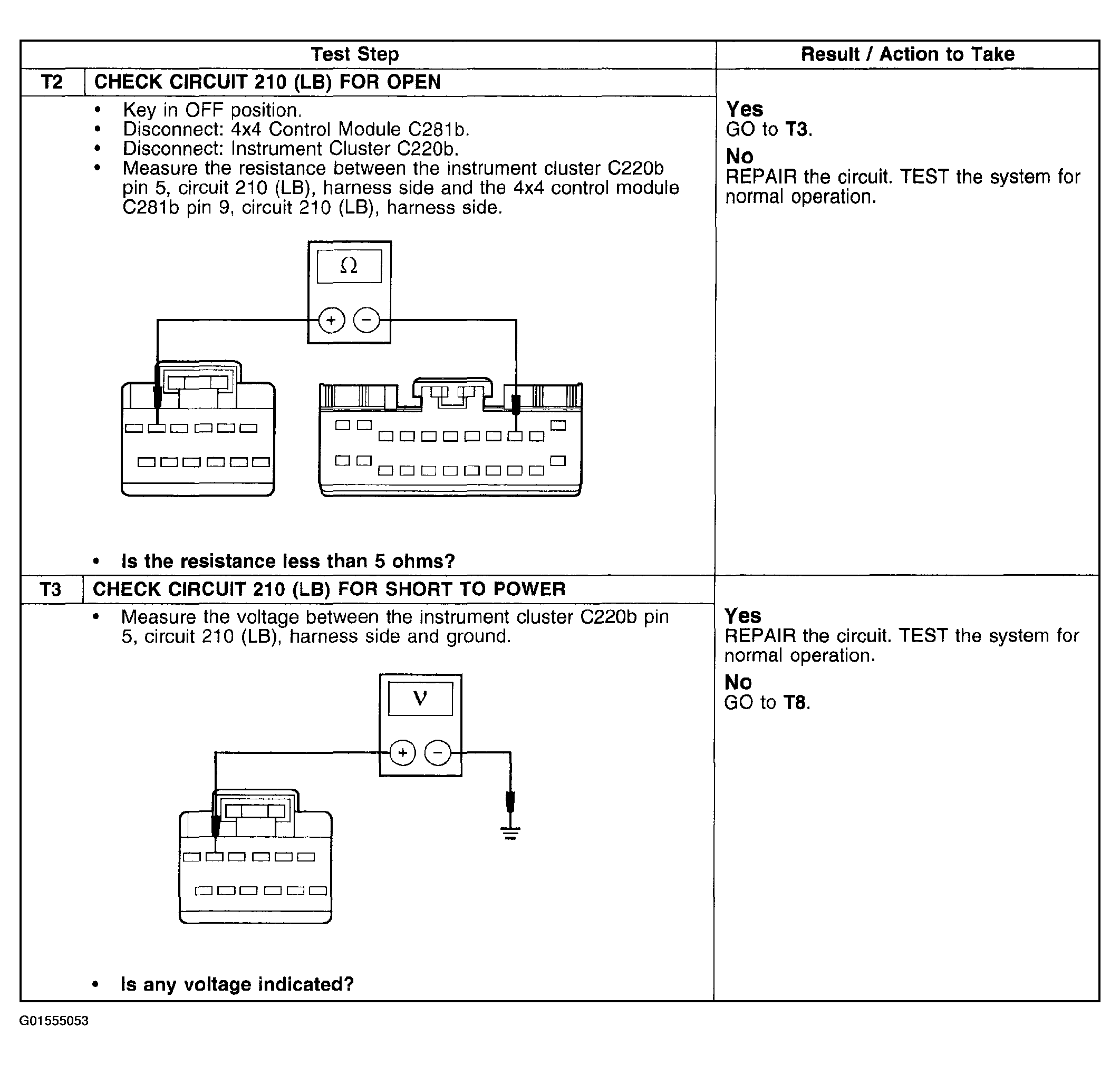

Fig 2: Pinpoint Test T: 4X4 High/Low Range Indicator Is Never/Always On-Electronic (T2 & T3)

Courtesy of FORD MOTOR CO.

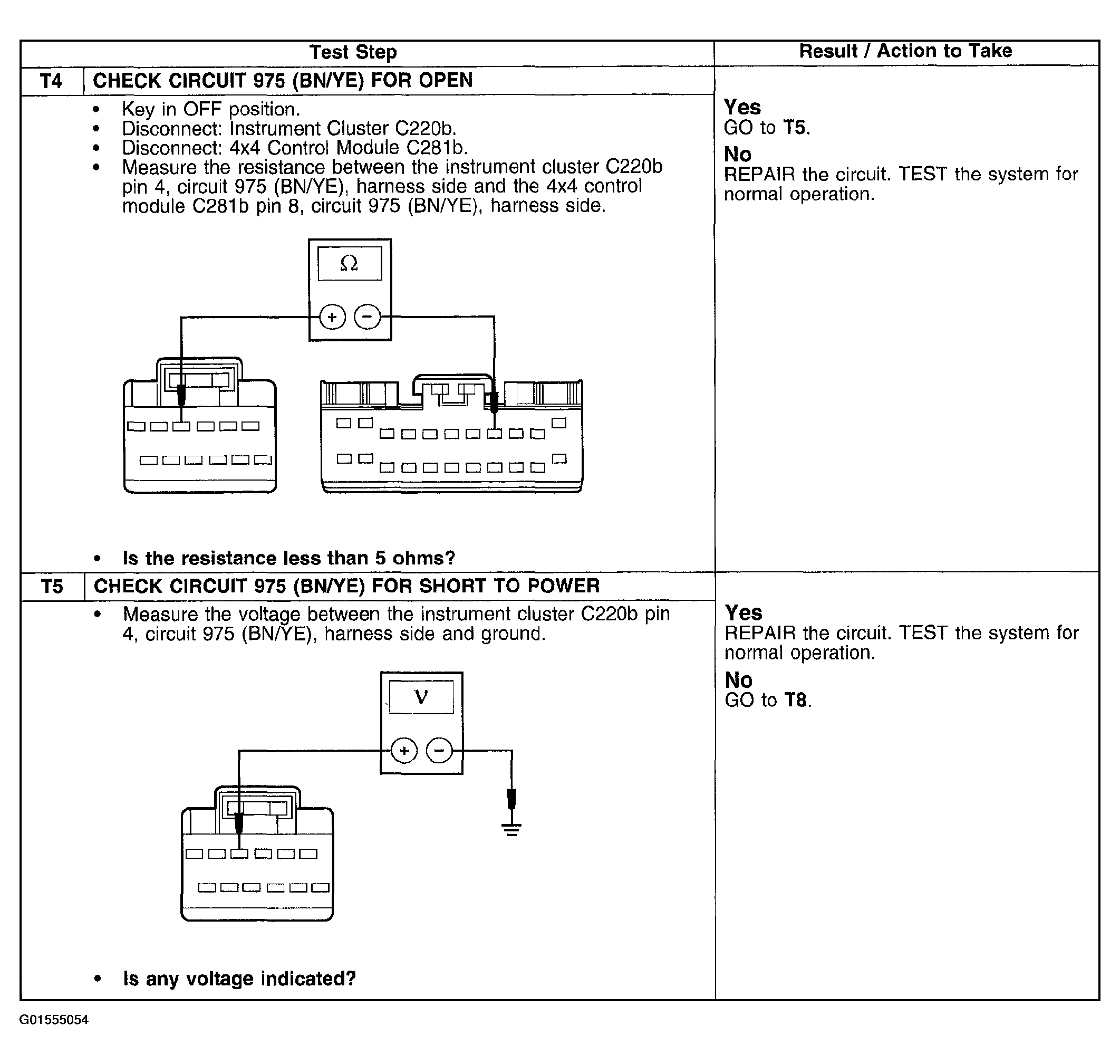

Fig 3: Pinpoint Test T: 4X4 High/Low Range Indicator Is Never/Always On-Electronic (T4 & T5)

Courtesy of FORD MOTOR CO.

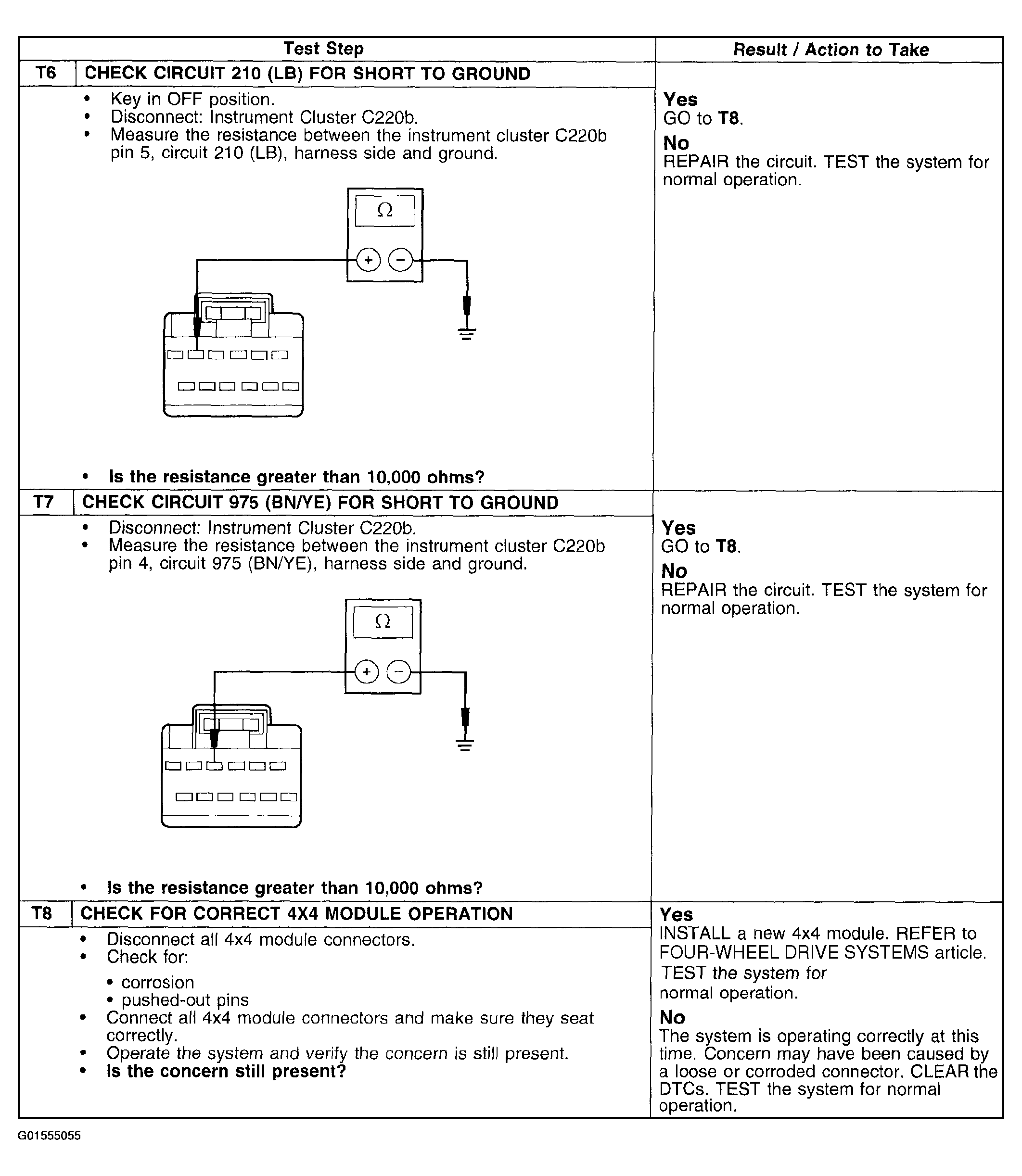

Fig 4: Pinpoint Test T: 4X4 High/Low Range Indicator Is Never/Always On-Electronic (T6-T8)

Courtesy of FORD MOTOR CO.

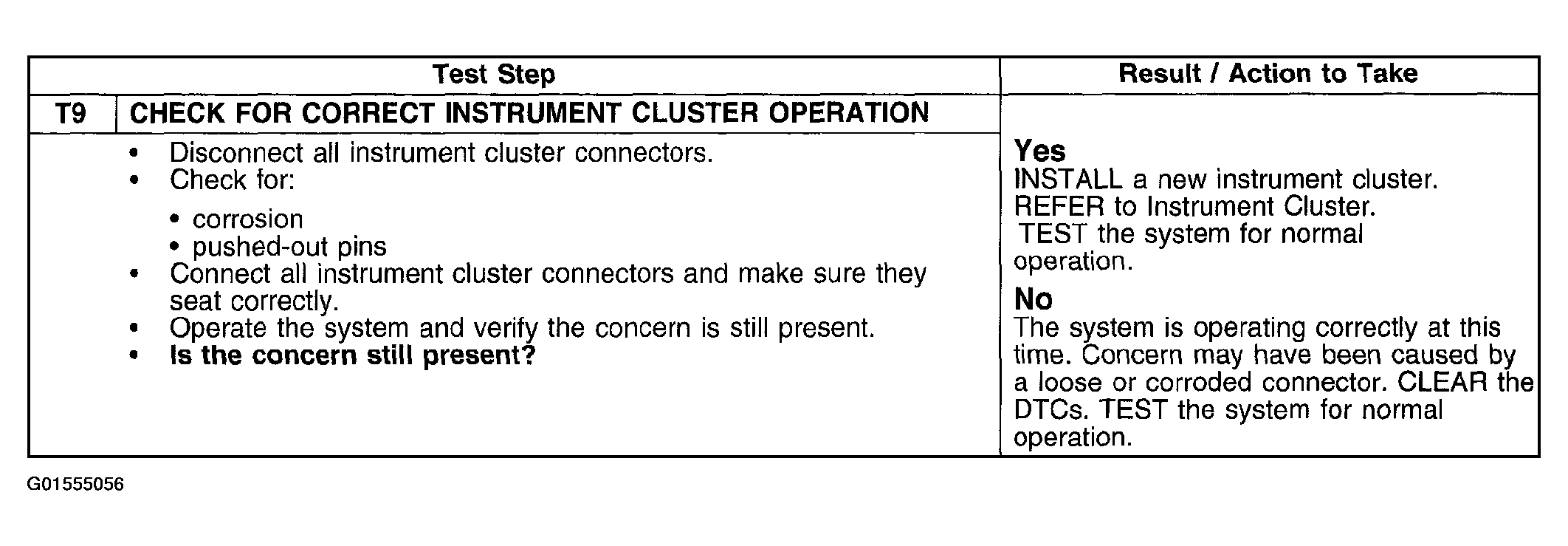

Fig 5: Pinpoint Test T: 4X4 High/Low Range Indicator Is Never/Always On-Electronic (T9)

Courtesy of FORD MOTOR CO.
