Pinpoint Test S: RH Turn Indicator Is Never On

CAUTION: Use the correct probe adapter(s) when making measurements. Failure to use the correct probe adapter(s) may damage the connector.

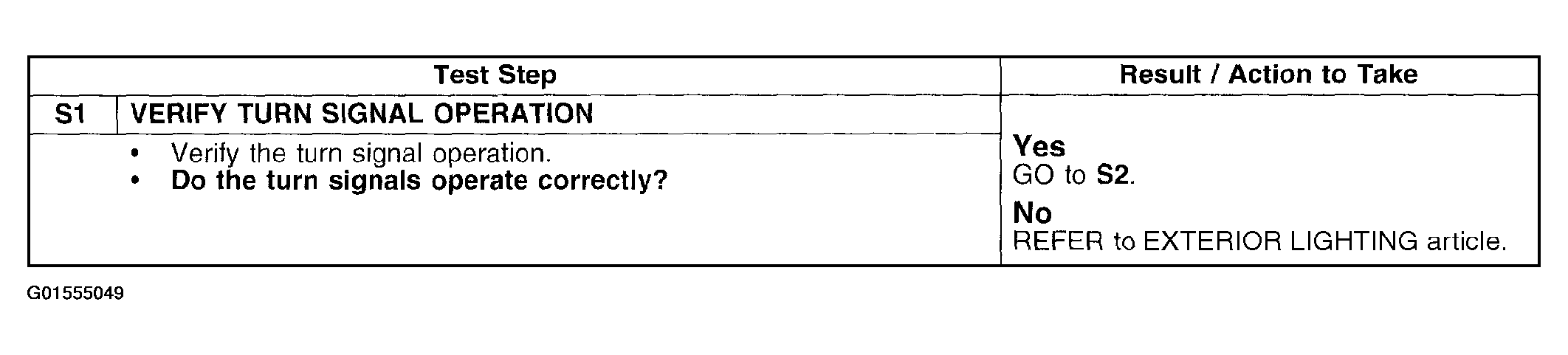

Fig 1: Pinpoint Test S: RH Turn Indicator Is Never On (S1)

Courtesy of FORD MOTOR CO.

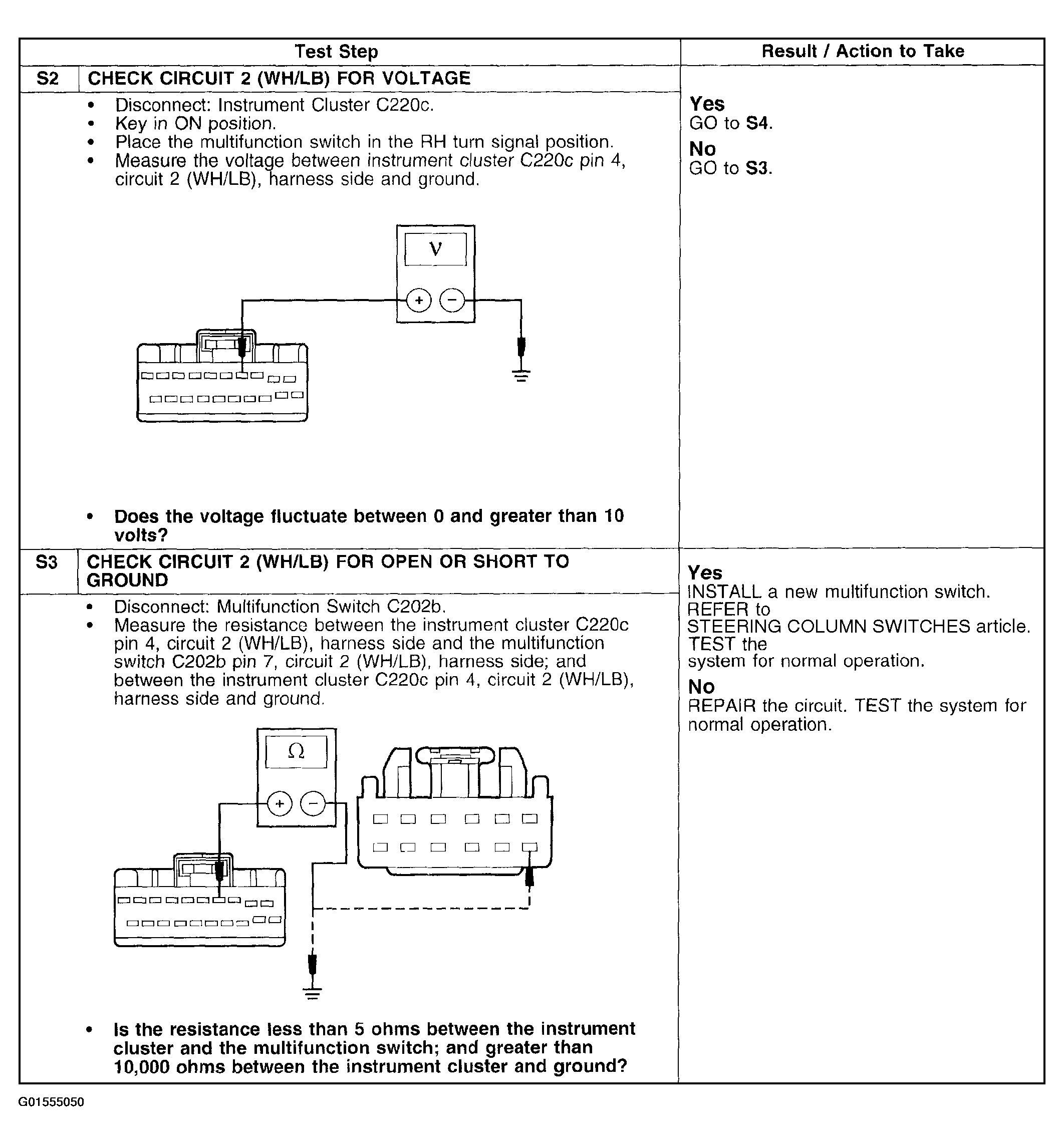

Fig 2: Pinpoint Test S: RH Turn Indicator Is Never On (S2 & S3)

Courtesy of FORD MOTOR CO.

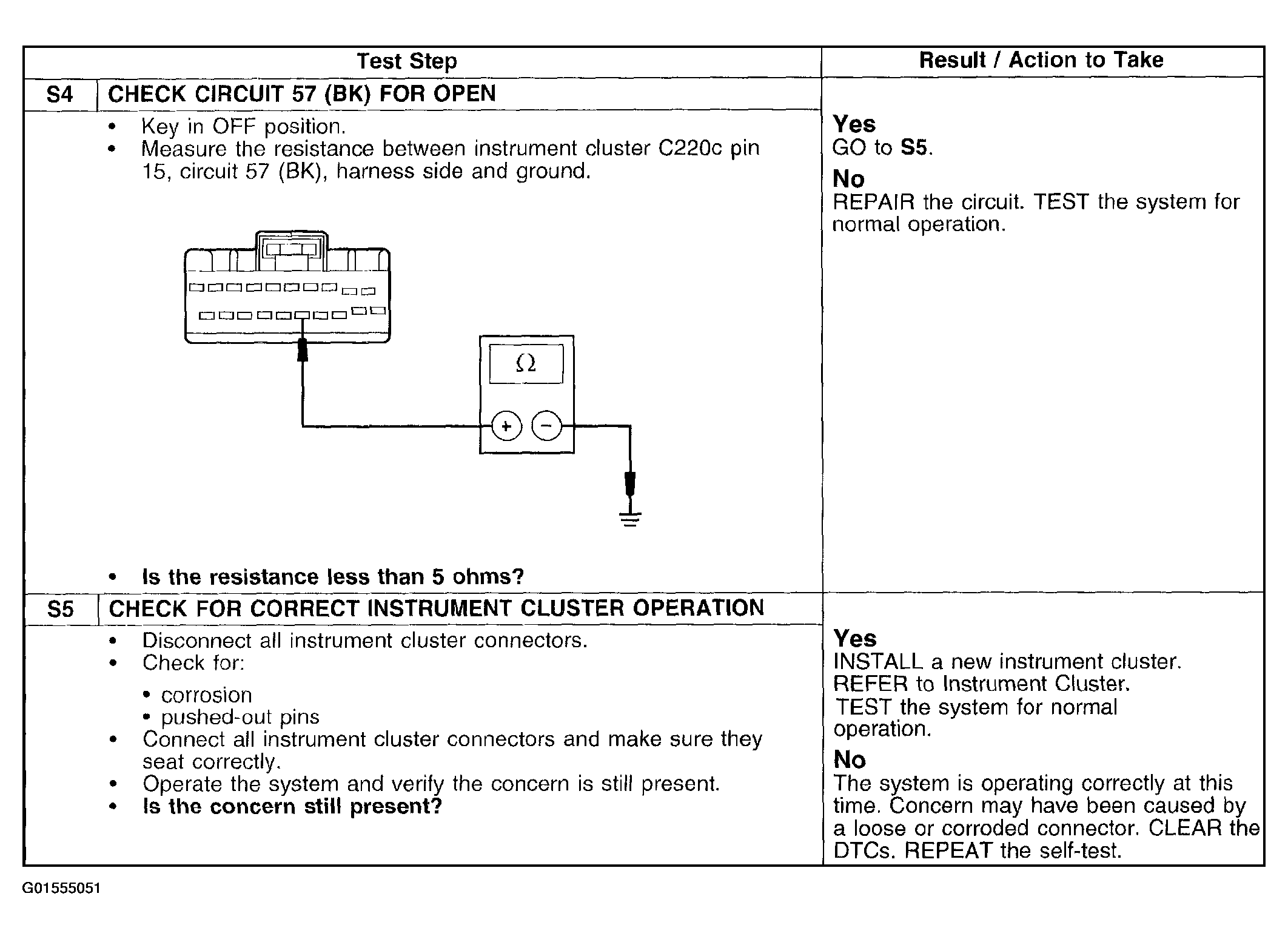

Fig 3: Pinpoint Test S: RH Turn Indicator Is Never On (S4 & S5)

Courtesy of FORD MOTOR CO.
