Flywheel Runout Check

WARNING: This page is about a different car, the 2004 Ford Pickup, 2004 Ford F550 Super Duty, 2004 Ford F450 Super Duty, and 2004 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Special Tool(s)

Fig 1: Identifying Special Tool
G02776341Courtesy of FORD MOTOR CO.
  1. Push the flywheel forward.
  2. Install the special tool against the flywheel face 25 mm (1 in) from the outer edge of the flywheel. Zero the dial indicator.
    Fig 2: Inspecting Flywheel Runout (1 Of 2)
    G02776342Courtesy of FORD MOTOR CO.
  3. Turn the flywheel one complete revolution while observing the total indicator runout (TIR). The flywheel TIR must not exceed the specification.
    • If the flywheel TIR does not exceed the specification, proceed to the next step in this procedure to check the ring gear runout.
    • If the flywheel TIR exceeds the specification, remove the flywheel. Refer to CLUTCH . Check for burrs between the flywheel and the crankshaft mounting flange. If burrs exist, remove them. Check the crankshaft flange runout.
      • If the crankshaft flange TIR does not exceed specification, and no burrs were found between the flywheel and the crankshaft mounting flange, install a new flywheel.
      • If the crankshaft flange TIR does not exceed specification, but burrs were removed from between the flywheel and the crankshaft mounting flange, reinstall the flywheel. Refer to CLUTCH . Recheck the flywheel runout. If the flywheel TIR exceeds the specification, install a new flywheel.
      • If the crankshaft flange TIR exceeds specification, repair as necessary. Reinstall the flywheel. Refer to CLUTCH . Recheck the flywheel runout. If the flywheel TIR exceeds the specification, install a new flywheel.
        Fig 3: Inspecting Flywheel Runout (2 Of 2)
        G02776343Courtesy of FORD MOTOR CO.
  4. Install the special tool against the ring gear face adjacent to the teeth. Zero the dial indicator.

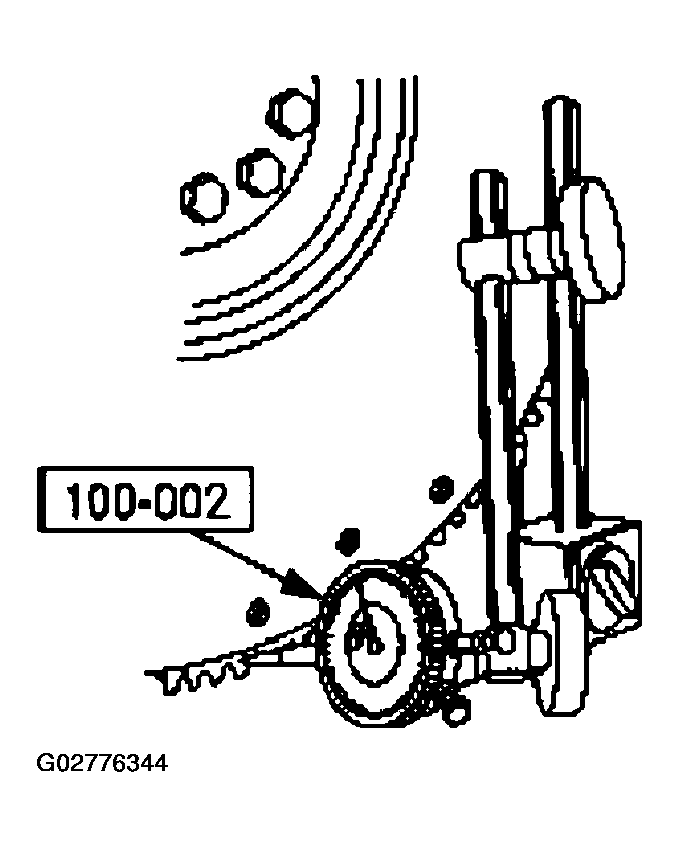

    Fig 4: Checking Ring Gear Teeth (1 Of 2)
    G02776344Courtesy of FORD MOTOR CO.
  5. Turn the flywheel one complete revolution while observing the total indicator runout (TIR). The ring gear TIR must not exceed the specification.
    • If the ring gear TIR exceeds the specification, install a new flywheel and ring gear assembly.

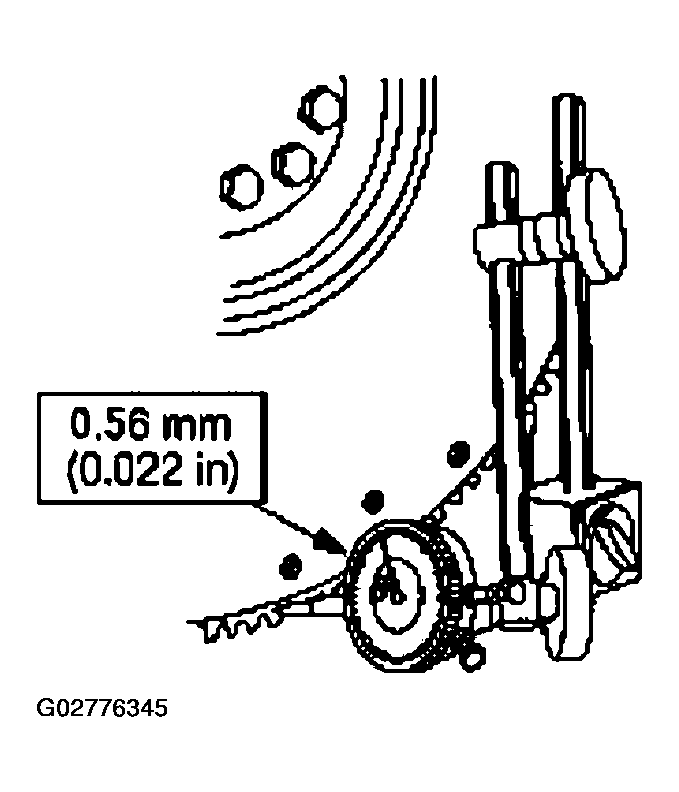

      Fig 5: Checking Ring Gear Teeth (2 Of 2)
      G02776345Courtesy of FORD MOTOR CO.
