4R100 Automatic Transmission (Diagnostic)

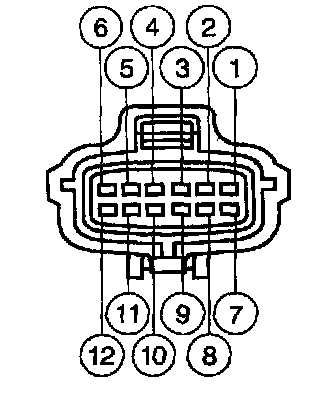

Digital Transmission Range (TR) Sensor Connector

Part 1 Of 2:

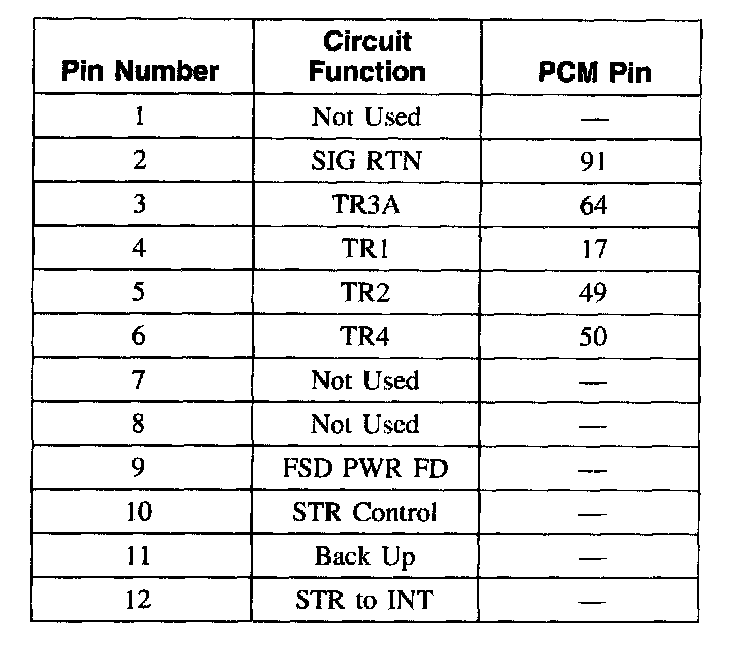

Part 2 Of 2:
