Front Suspension Balljoint Inspection Job Aid

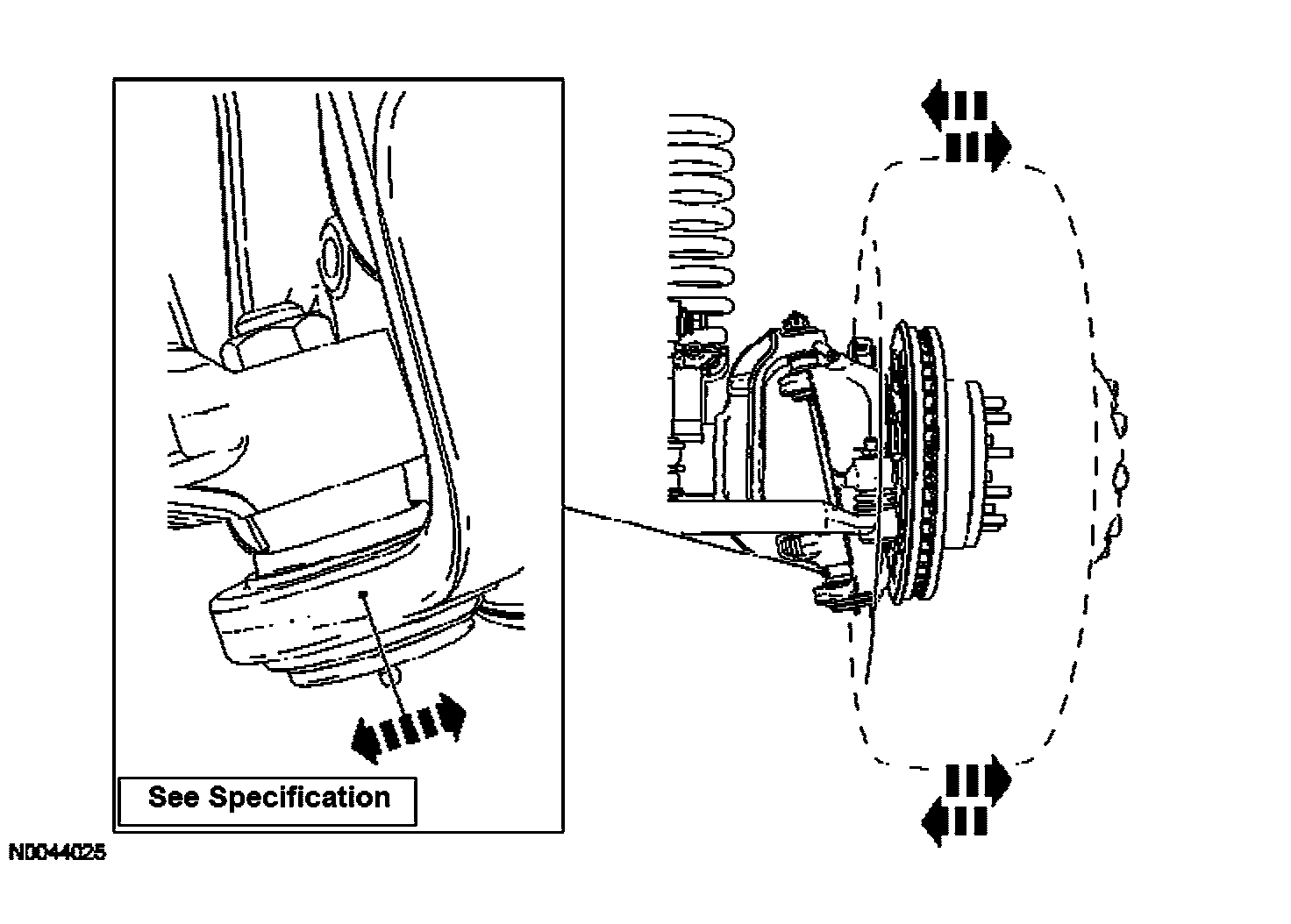

Front Lower Ball Joint

Measurement At lower ball joint between axle/twin I beam and spindle/knuckle

Deflection 0-0.040 in (0-1.0mm)






Reference Diagram E

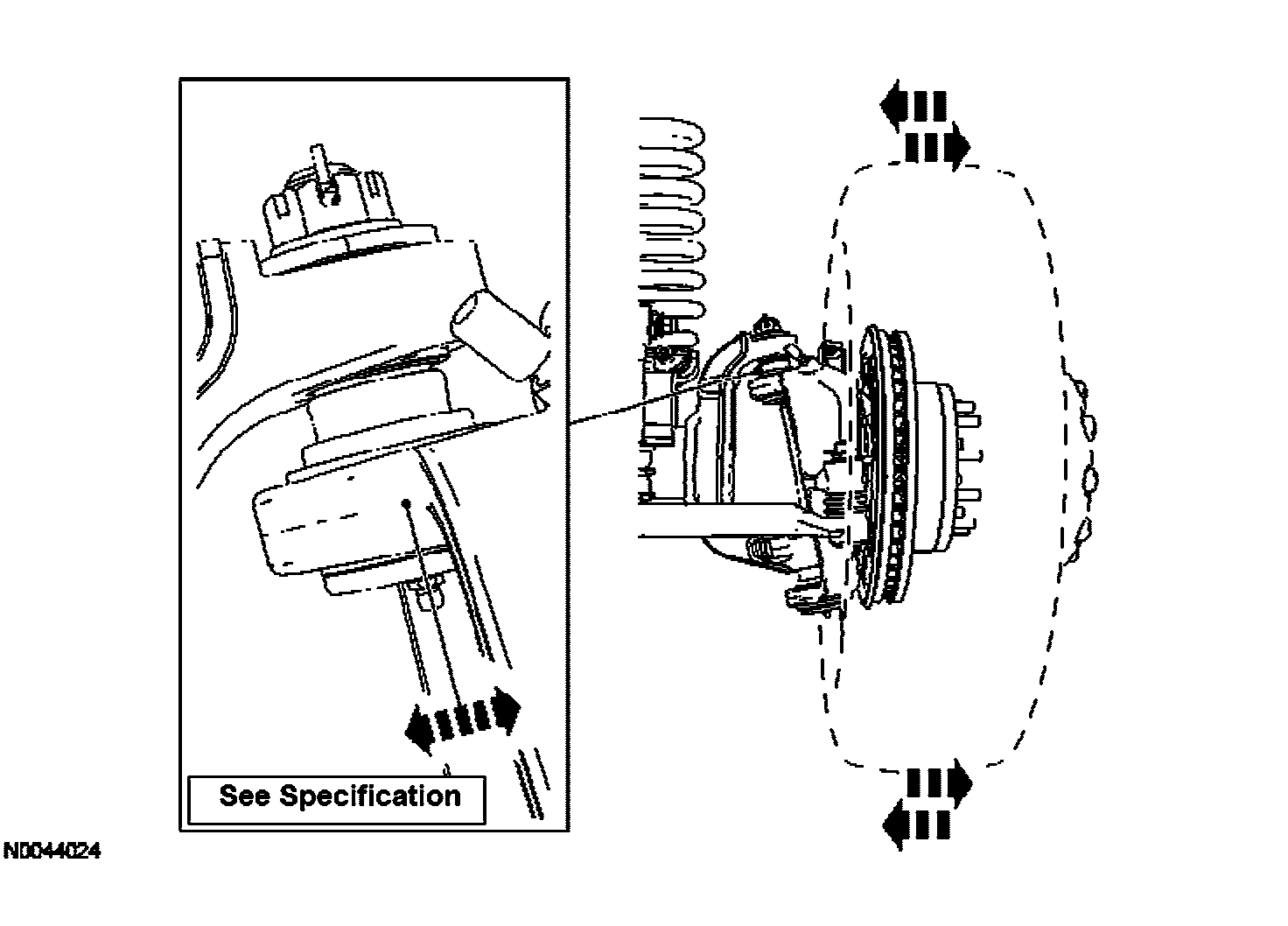

Front Upper Ball Joint

Measurement At upper ball joint between axle/twin I beam and spindle/knuckle

Deflection 0-0.024 in (0-0.6mm)






Reference Diagram F
