Drive Belt: Diagrams





Accessory Drive Belts

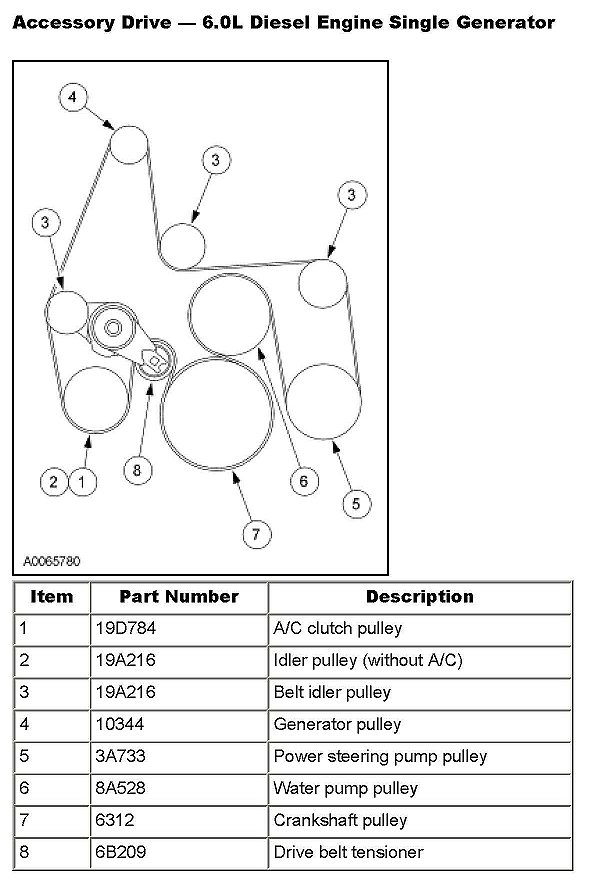

6.0L Diesel Engine Single Generator

6.0L Diesel With Single Generator:

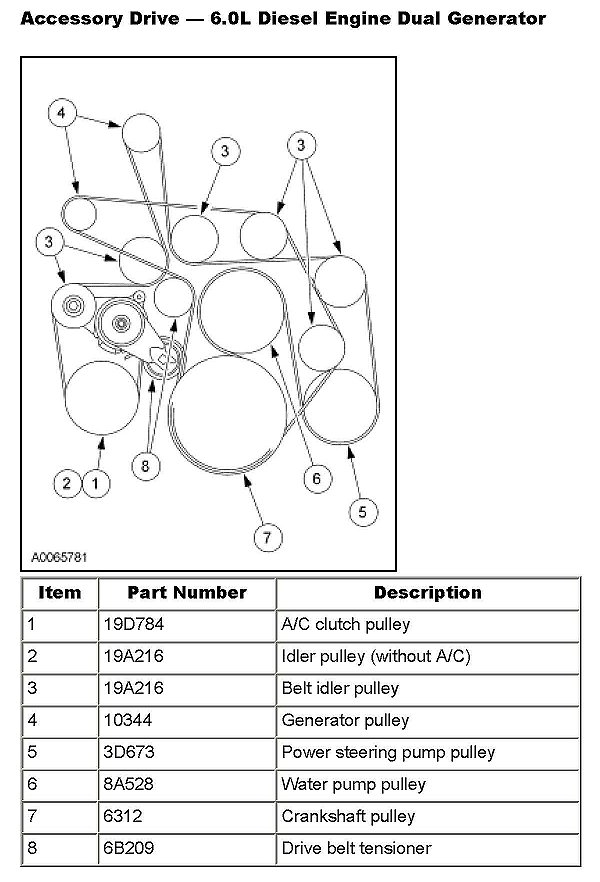

6.0L Diesel Engine Dual Generator


6.0L Diesel With Dual Generator:
