Cooling Fan - 6.0L Diesel

Cooling Fan - 6.0L Diesel





Special Tool(s)

Removal and Installation
1. Remove the radiator assembly.

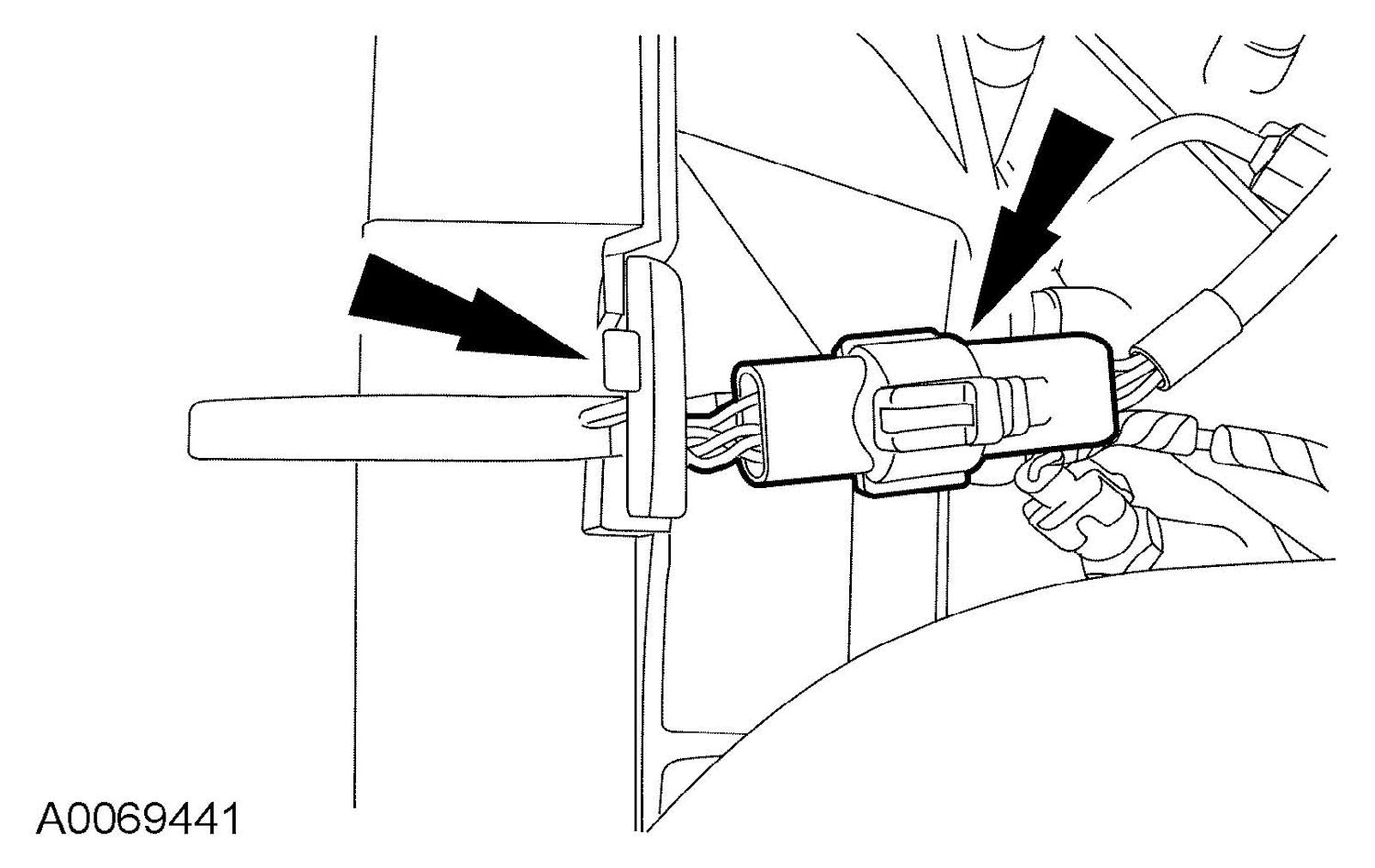

2. Disconnect the cooling fan clutch electrical-11 connector. Unclip and position the fan wiring aside.






3. NOTE: Use a hole in the fan hub to prevent the fan from turning.

CAUTION: The large clutch assembly nut has a right-hand thread and must be rotated counterclockwise to remove it.

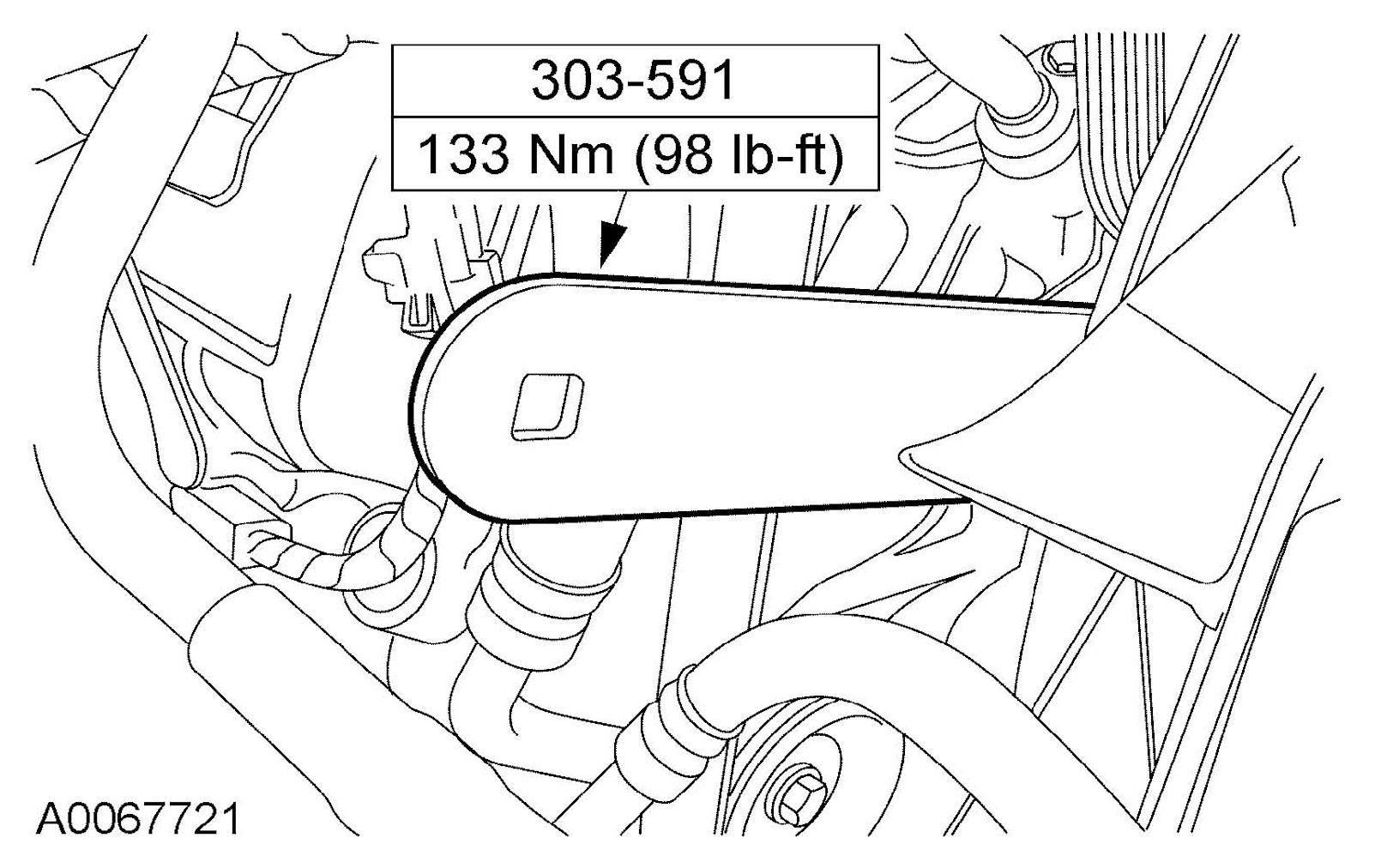

Using the special tool, remove the cooling fan and clutch.
4. Remove the cooling fan and clutch assembly.

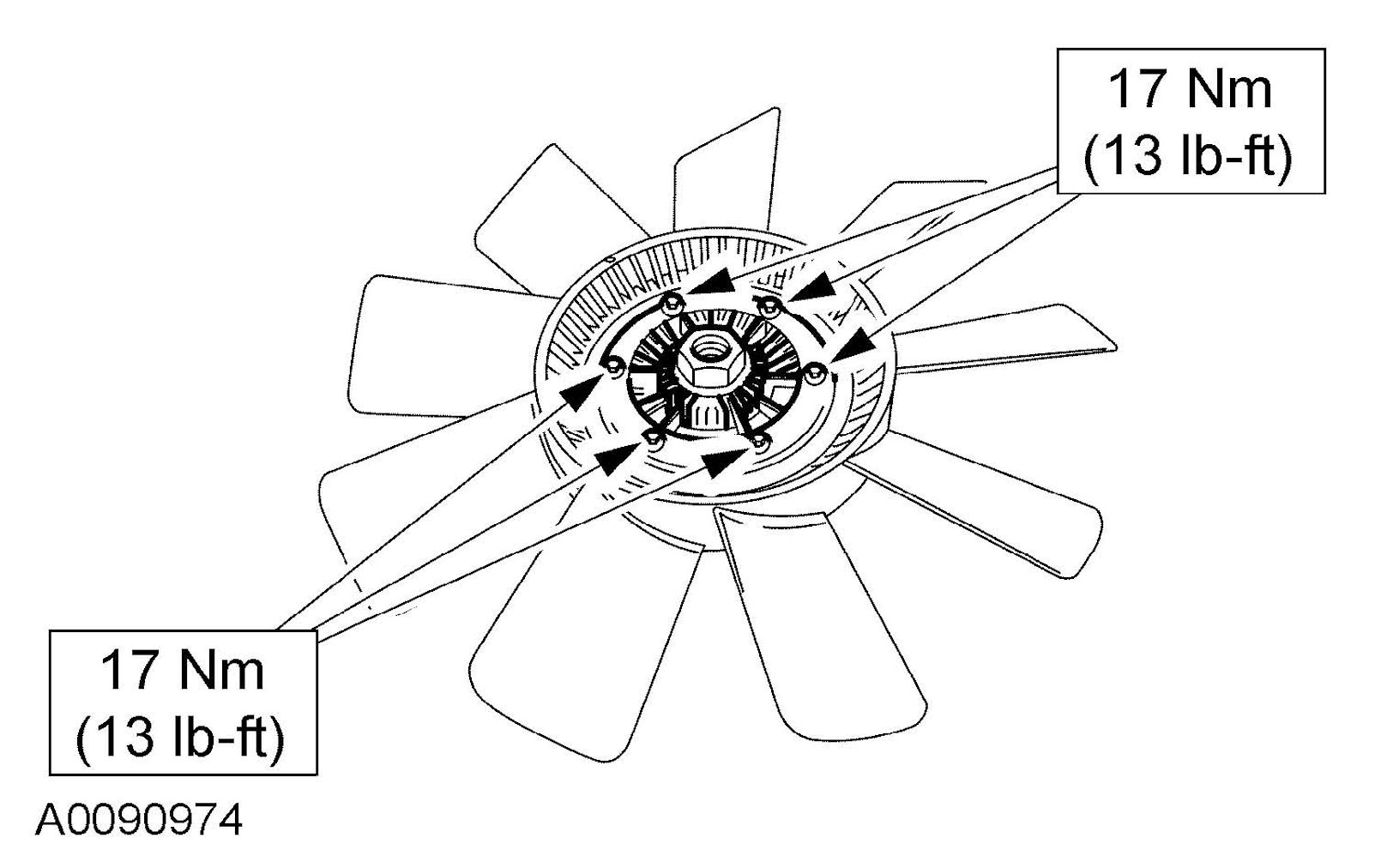

5. If necessary, remove the bolts and separate the cooling fan and the clutch.
6. To install, reverse the removal procedure.
