Home >> Ford >> 2003 >> Excursion 2WD V8-6.0L DSL Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set 26 >> 26-11 to 26-14

26-11 to 26-14

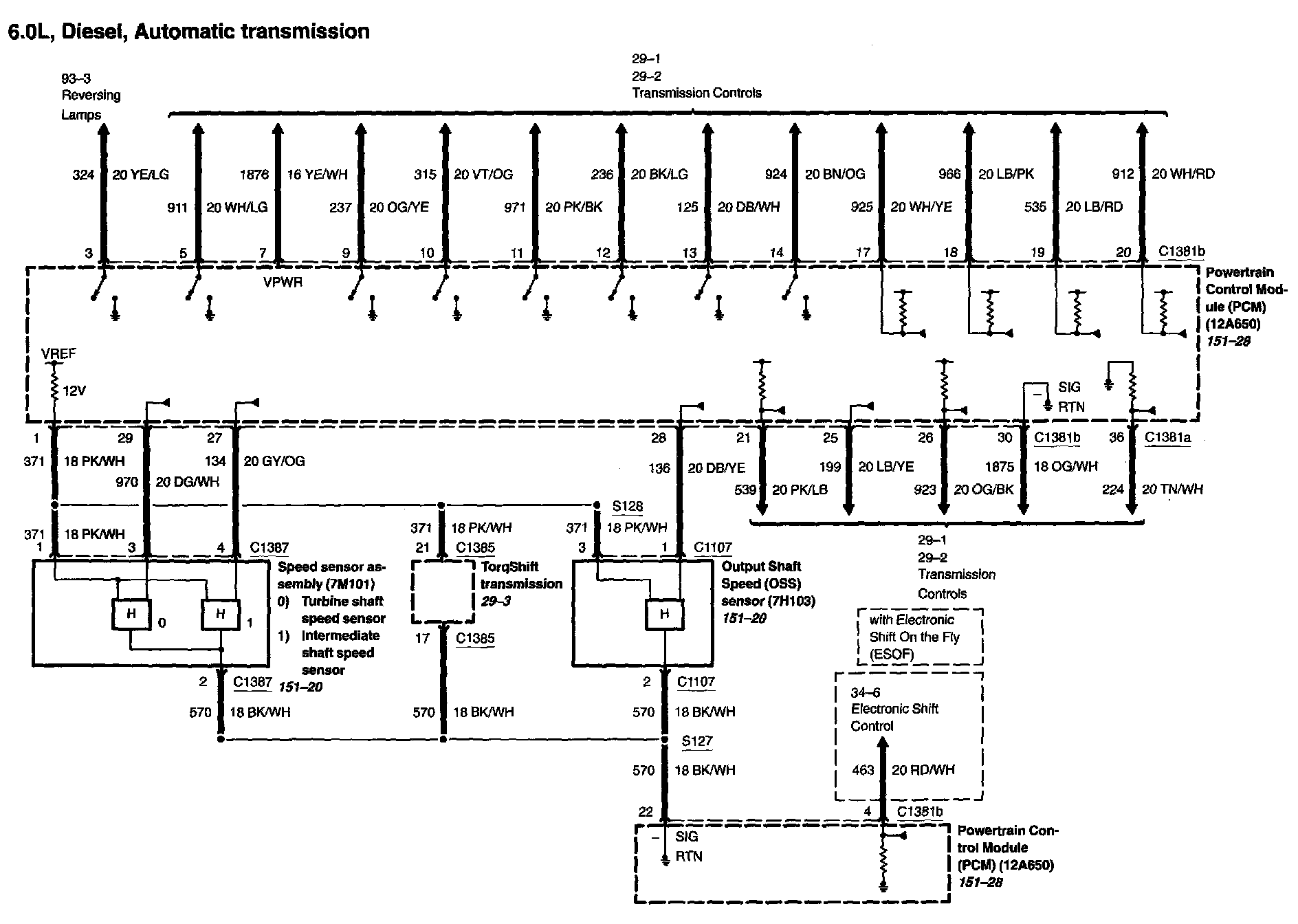

26-11:

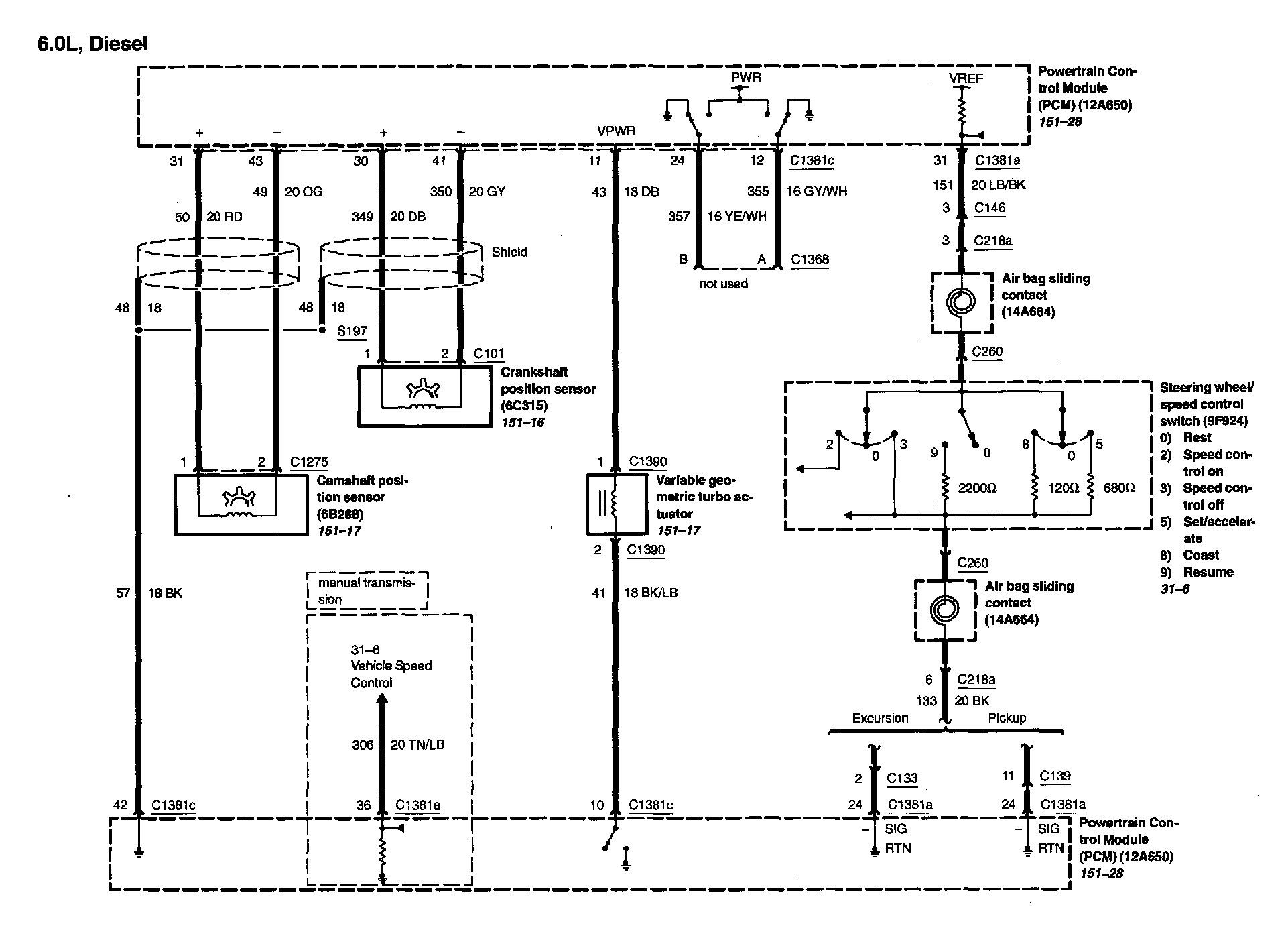

26-12:

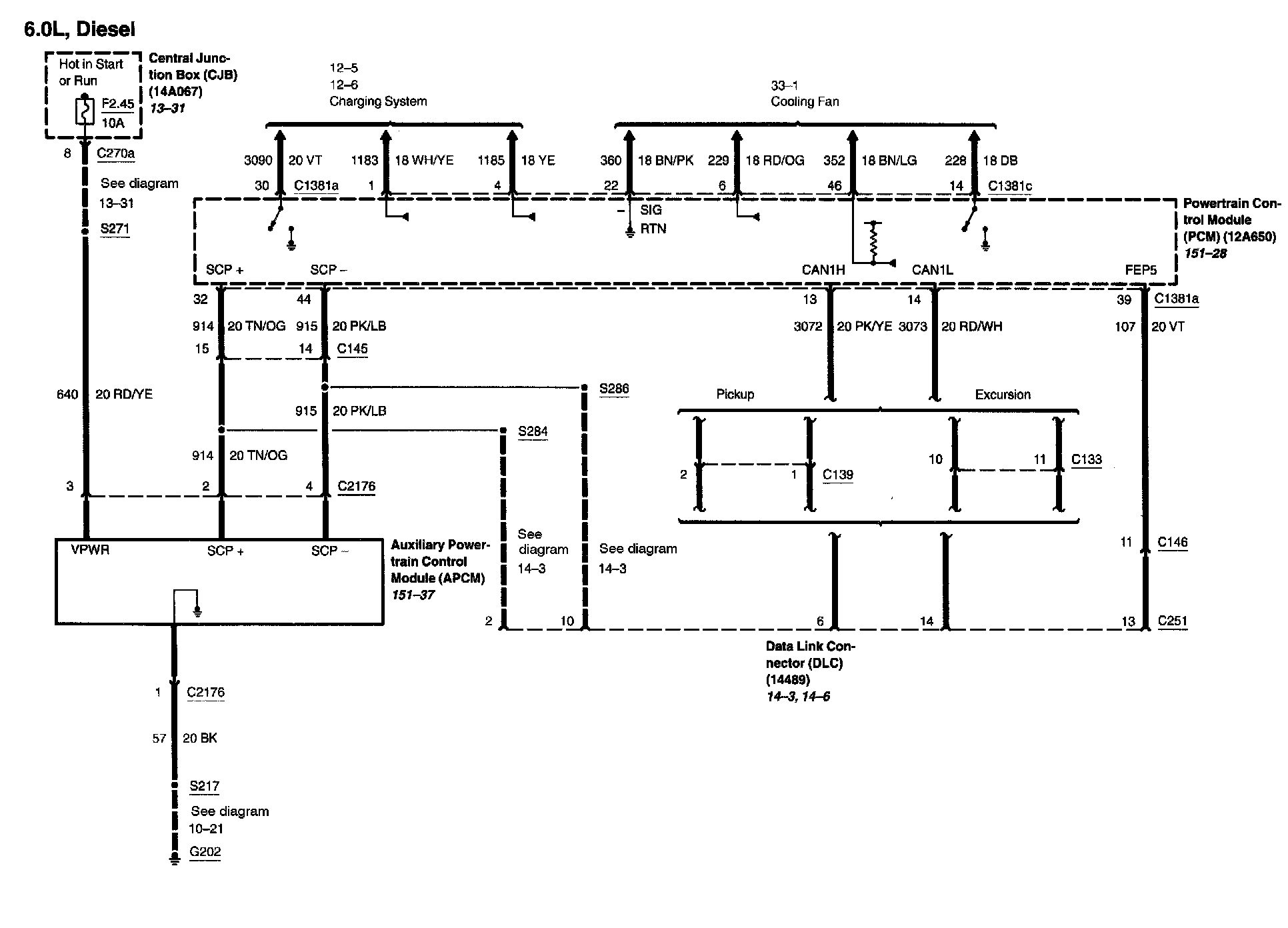

26-13:

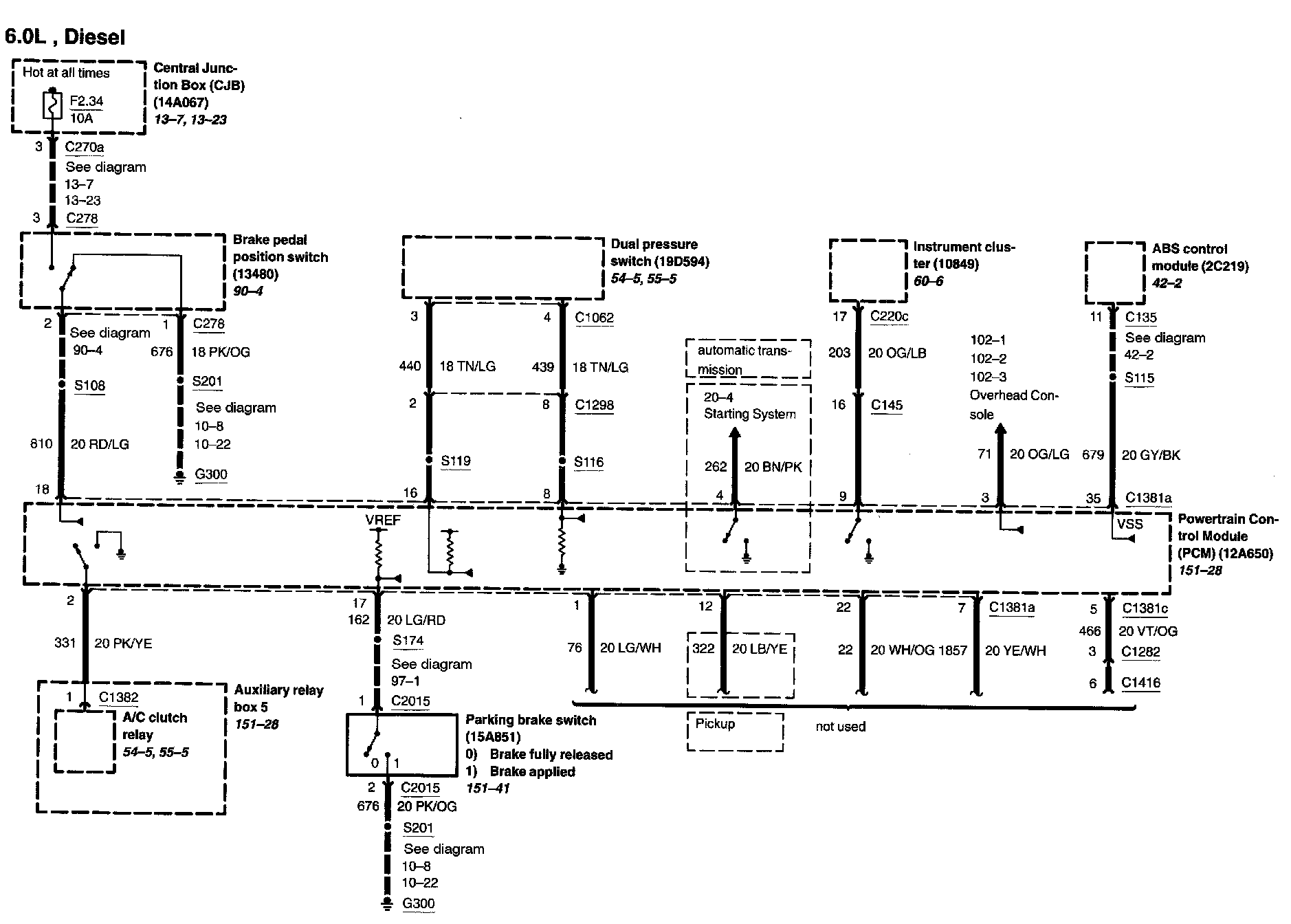

26-14:
