26-1 to 26-5
26-1 to 26-5

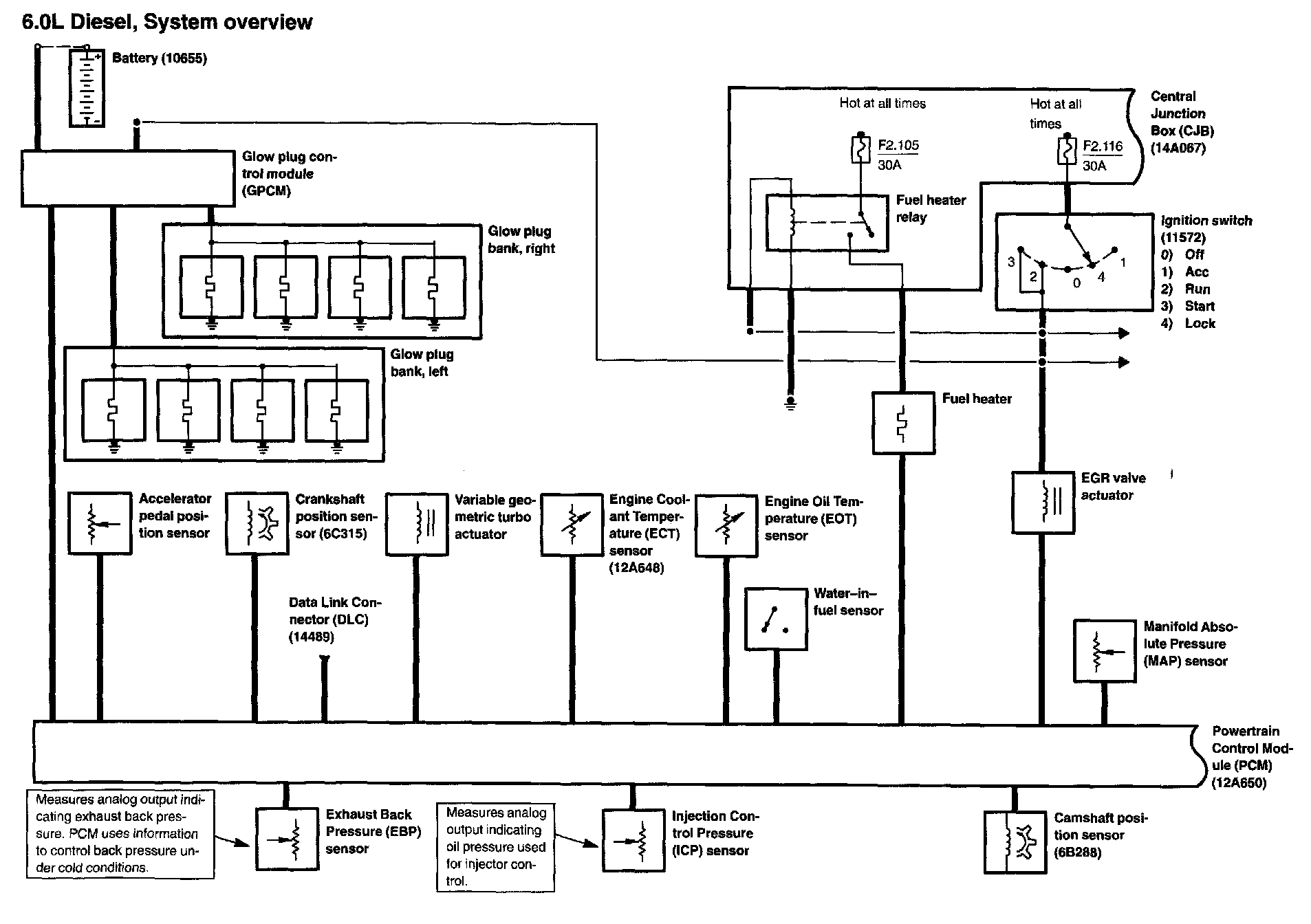

26-1, 6.0L Diesel, System Overview:

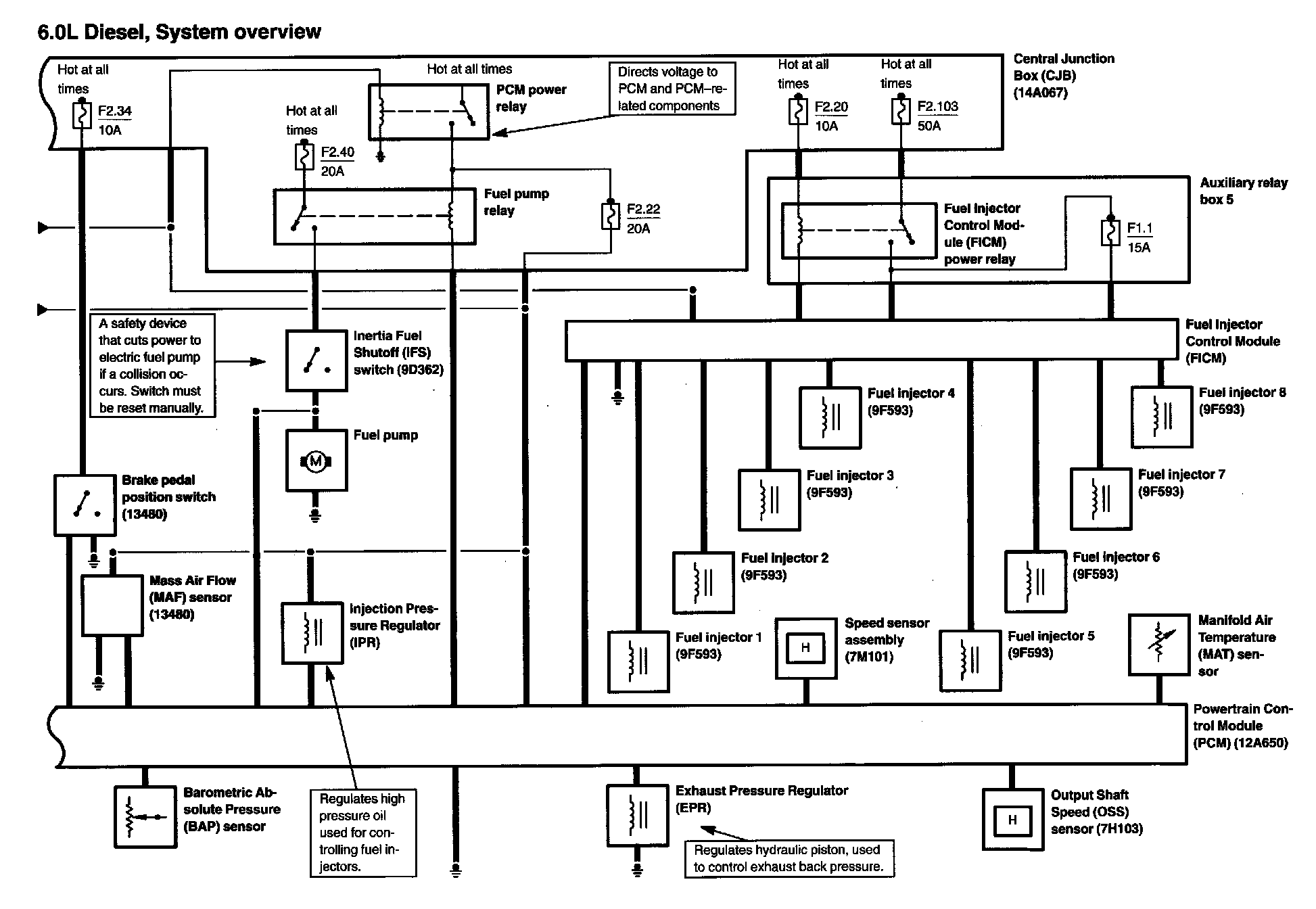

26-2, 6.0L Diesel, System Overview:

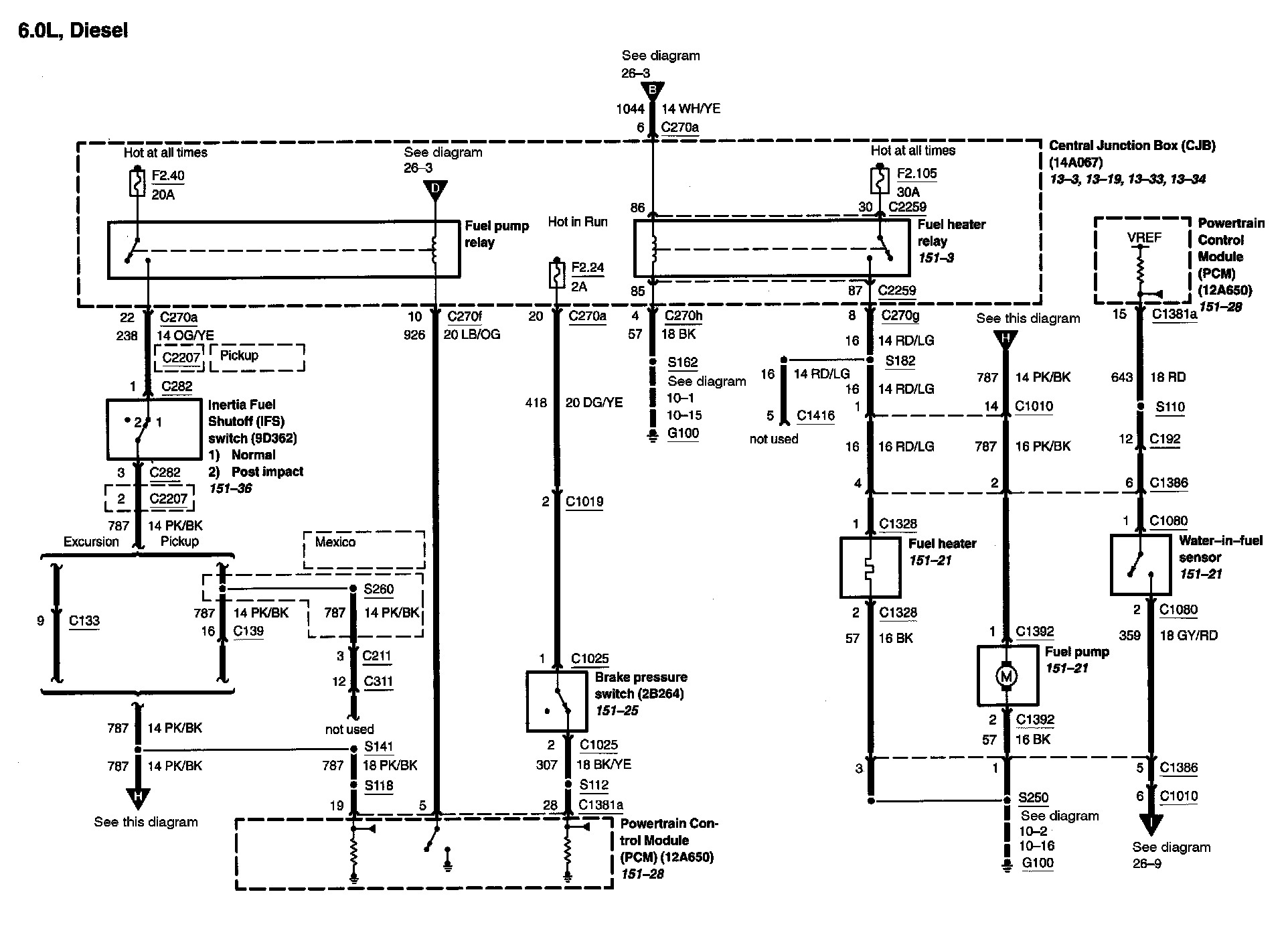

26-3:

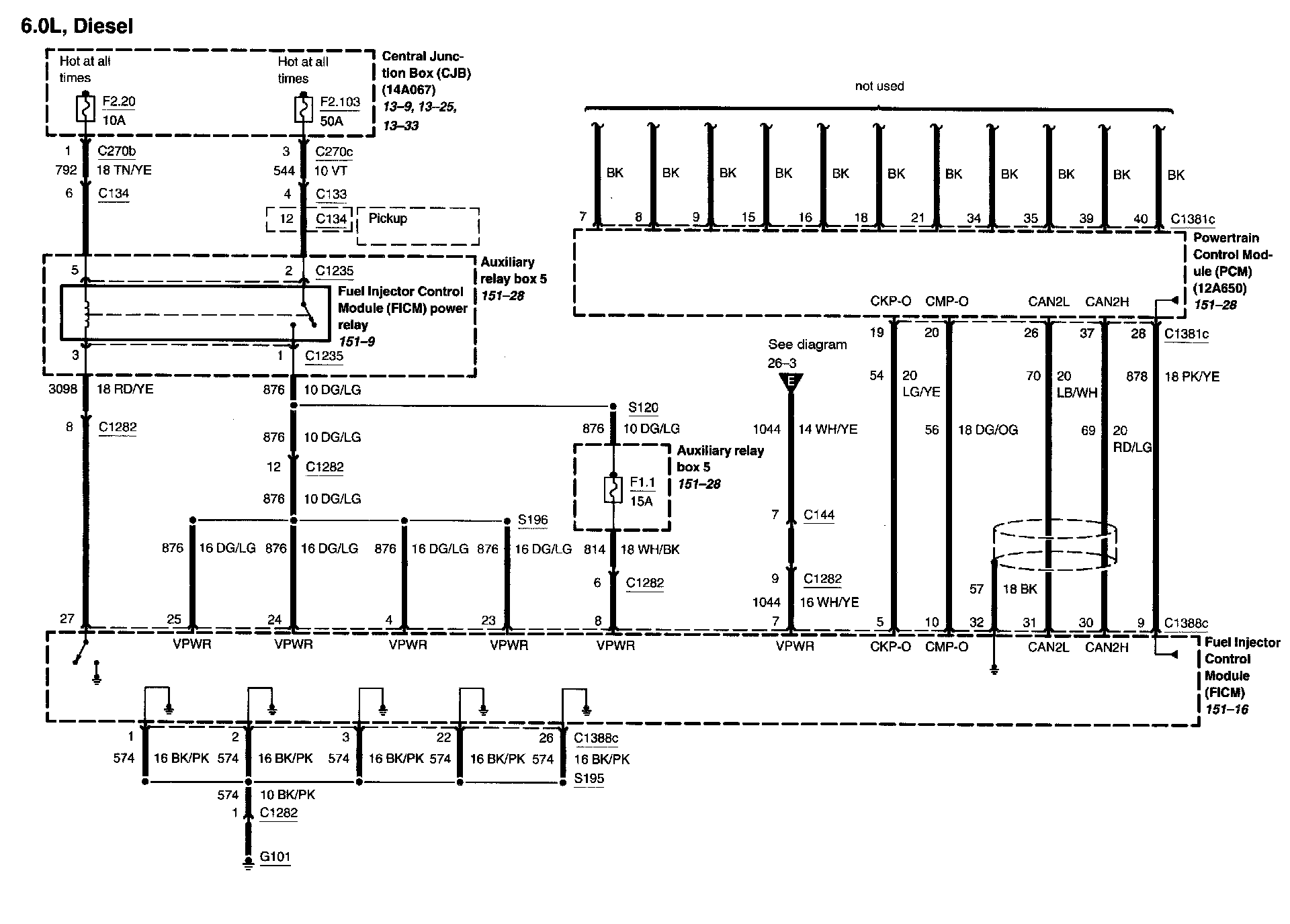

26-4:

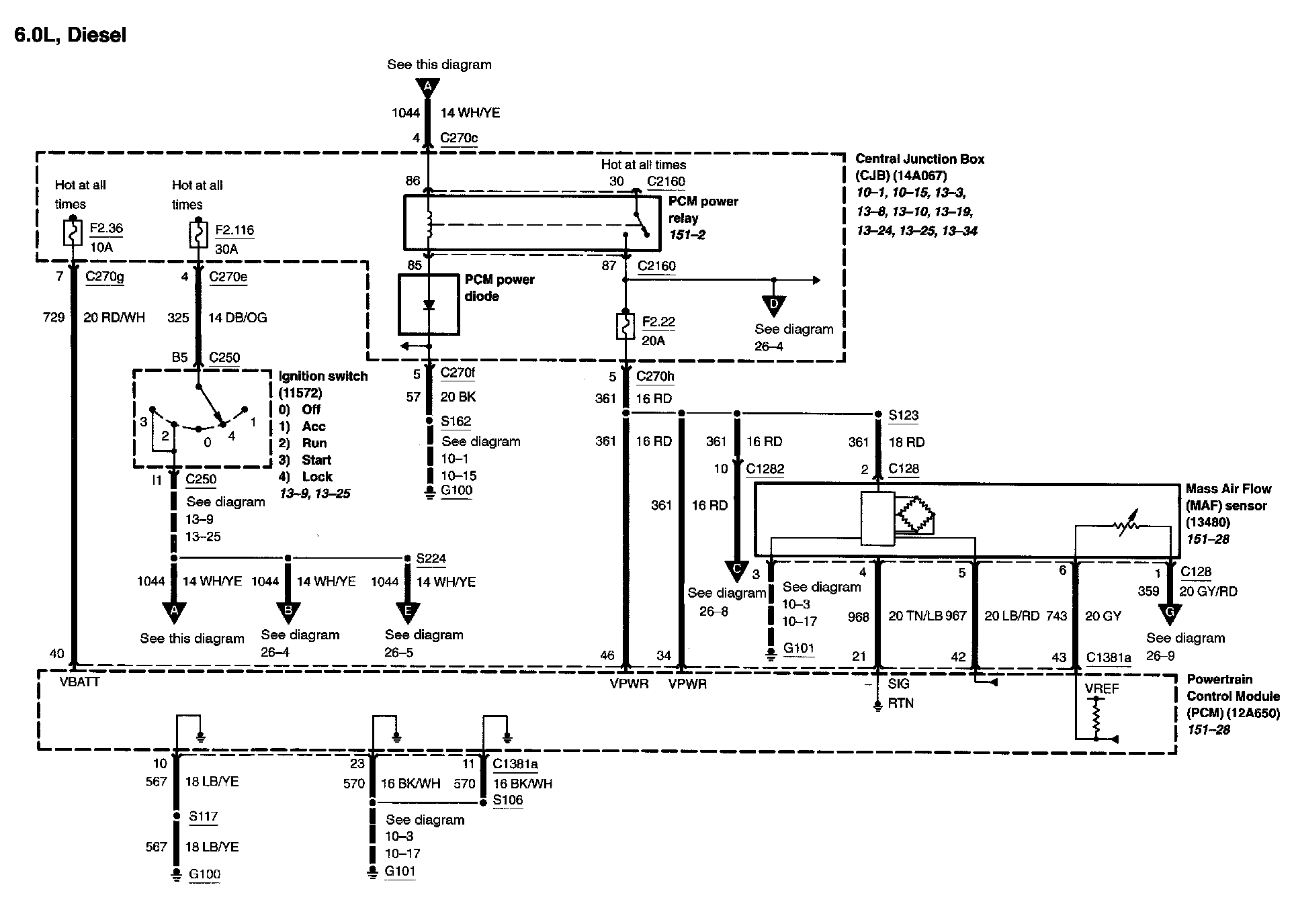

26-5:
