Parking Assist Switch: Service and Repair

PARKING AID SWITCH

REMOVAL

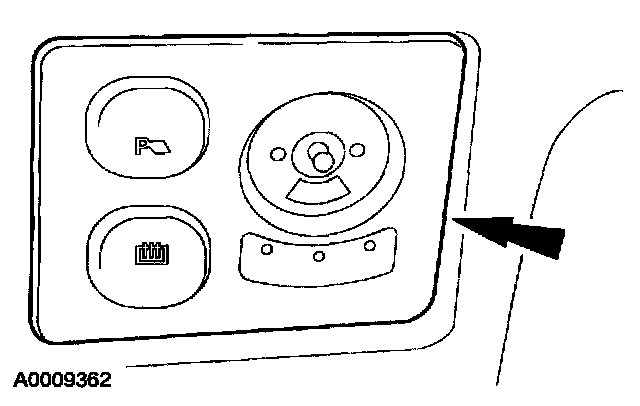

1. Remove the parking aid switch trim plate by gently prying the plate out of the instrument panel.

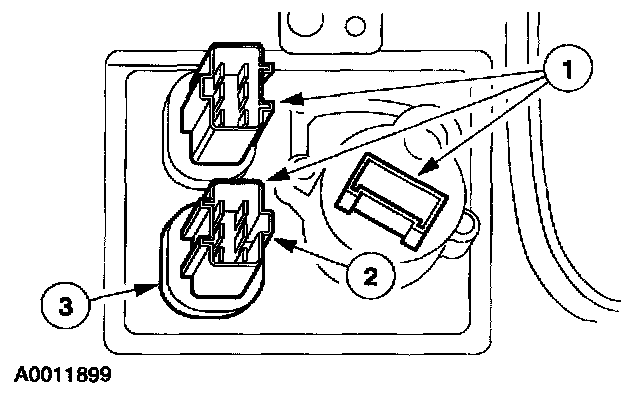

2. Remove the parking aid switch.
1 Disconnect the electrical connectors from the parking aid switch, rear defrost switch (if equipped) and transfer case control switch (if equipped).
2 Release the locking tabs that retain the parking aid switch to the switch plate.
3 Remove the parking aid switch from the switch plate.

INSTALLATION
1. To install, reverse the removal procedure.
