Pinpoint Test G: The Front Fog Lamp Switch Illumination Is Inoperative (If Equipped)

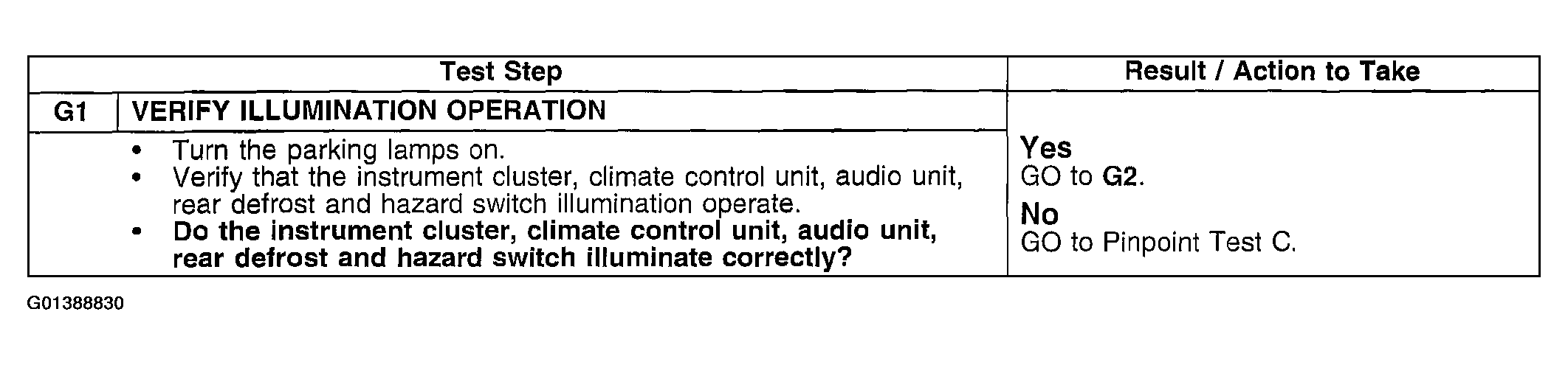

Fig 1: Pinpoint Test G: Front Fog Lamp Switch Illumination Is Inoperative (Steps G1)
G01388830Courtesy of FORD MOTOR CO.

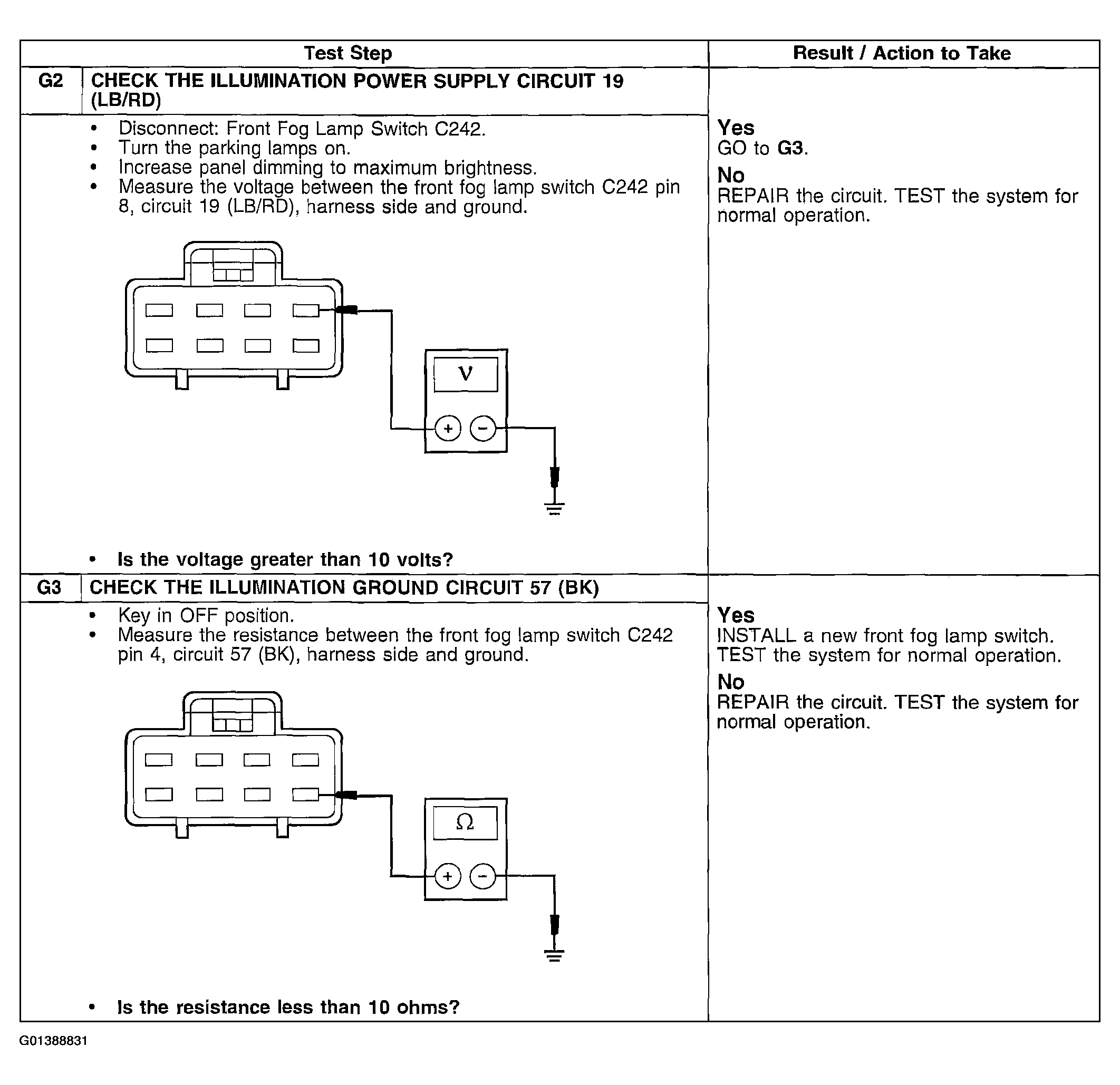

Fig 2: Pinpoint Test G: Front Fog Lamp Switch Illumination Is Inoperative (Steps G2-G3)
G01388831Courtesy of FORD MOTOR CO.
