Pinpoint Test F: The Hazard Switch Illumination Is Inoperative

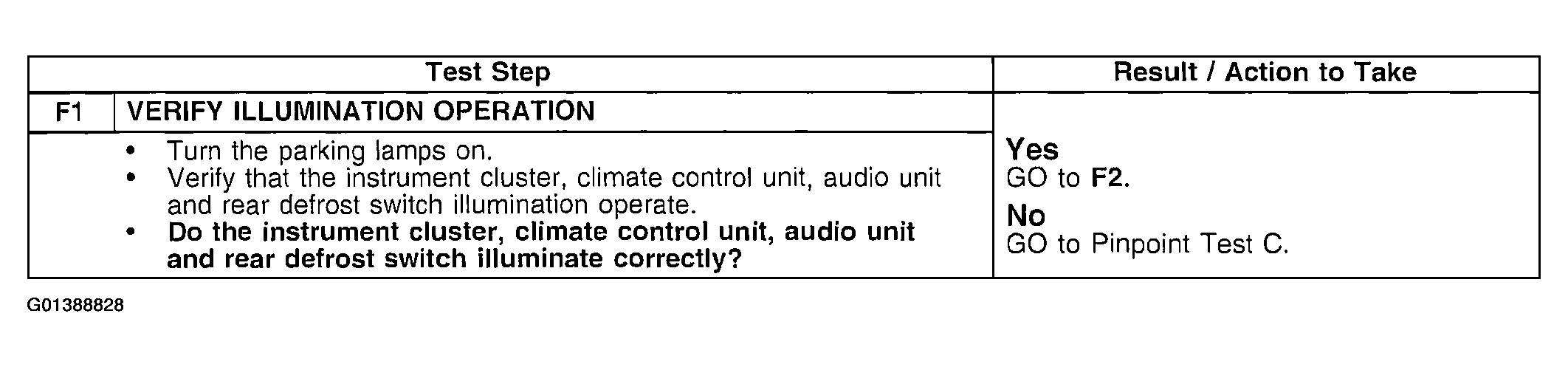

Fig 1: Pinpoint Test F: Hazard Switch Illumination Is Inoperative (Steps F1)
G01388828Courtesy of FORD MOTOR CO.

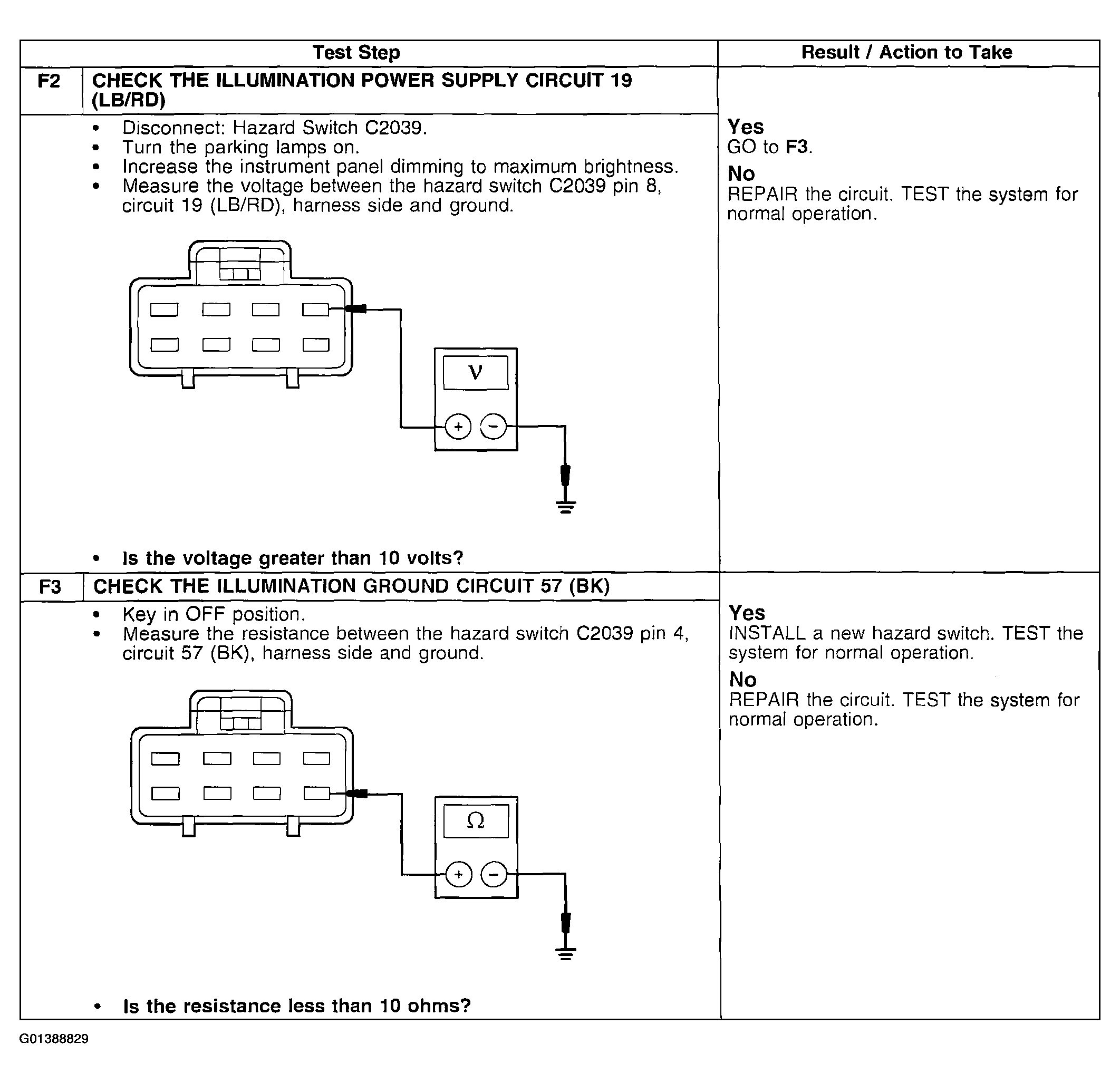

Fig 2: Pinpoint Test F: Hazard Switch Illumination Is Inoperative (Steps F2-F3)
G01388829Courtesy of FORD MOTOR CO.
