Pinpoint Test E: The 4 Wheel Drive Switch Illumination Is Inoperative (If Equipped)

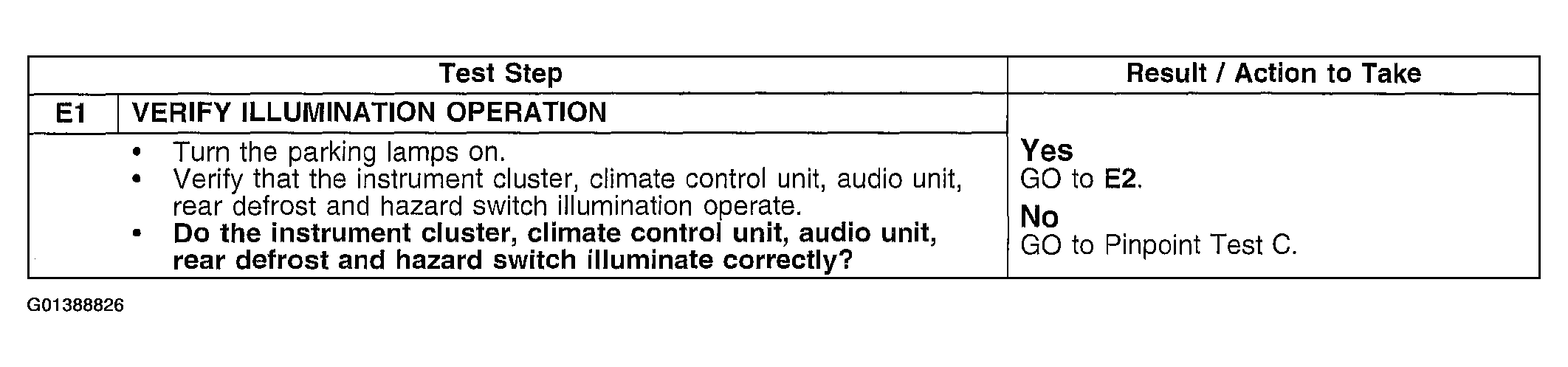

Fig 1: Pinpoint Test E: 4 Wheel Drive Switch Illumination Is Inoperative (Steps E1)
G01388826Courtesy of FORD MOTOR CO.

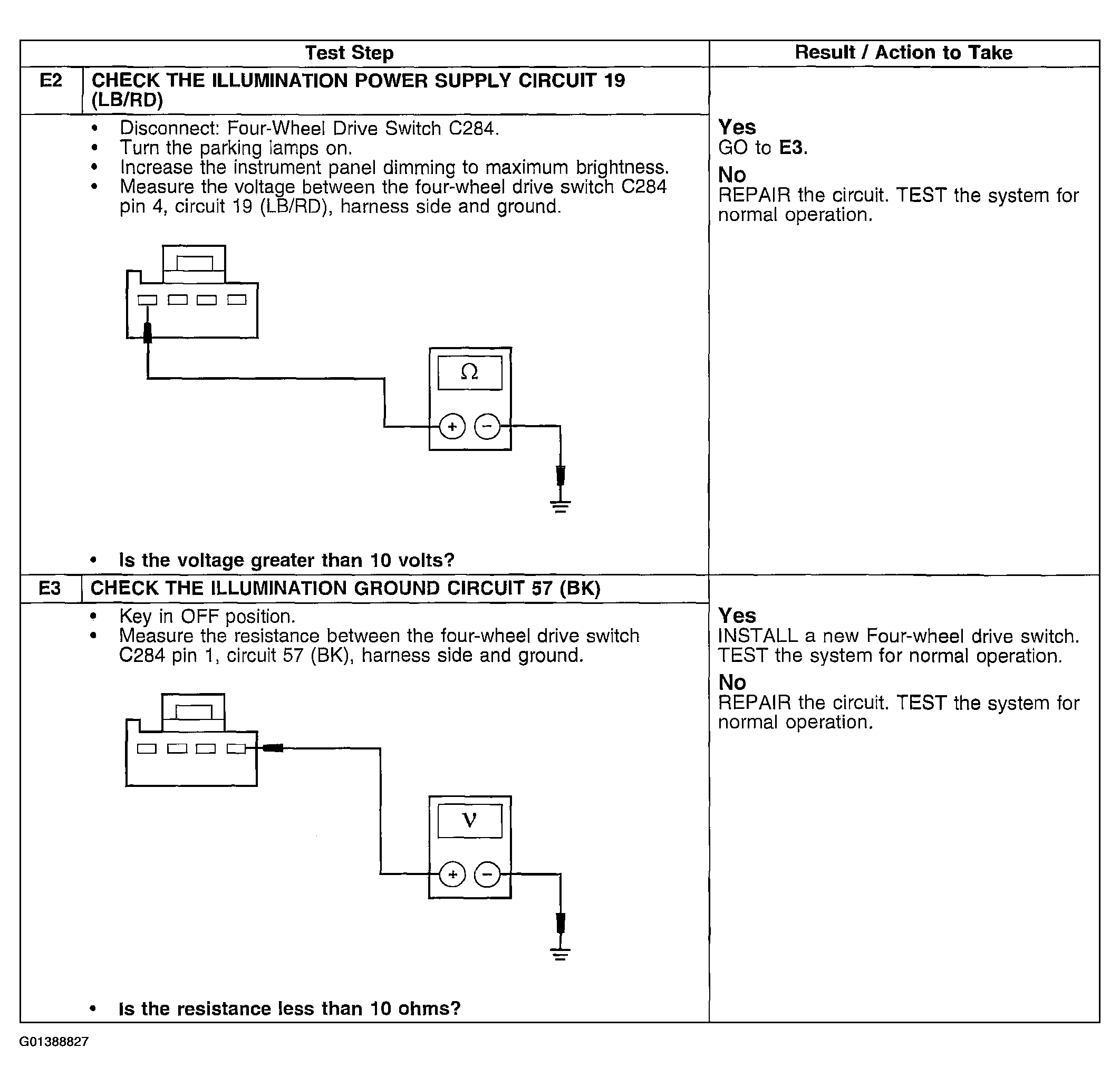

Fig 2: Pinpoint Test E: 4 Wheel Drive Switch Illumination Is Inoperative (Steps E2-E3)
G01388827Courtesy of FORD MOTOR CO.
