Pinpoint Test C: The Instrument Panel Illumination Does Not Dim

CAUTION: Use the correct probe adaptor(s) when making measurement. Failure to use the correct probe adaptor(s) may damage the connector.

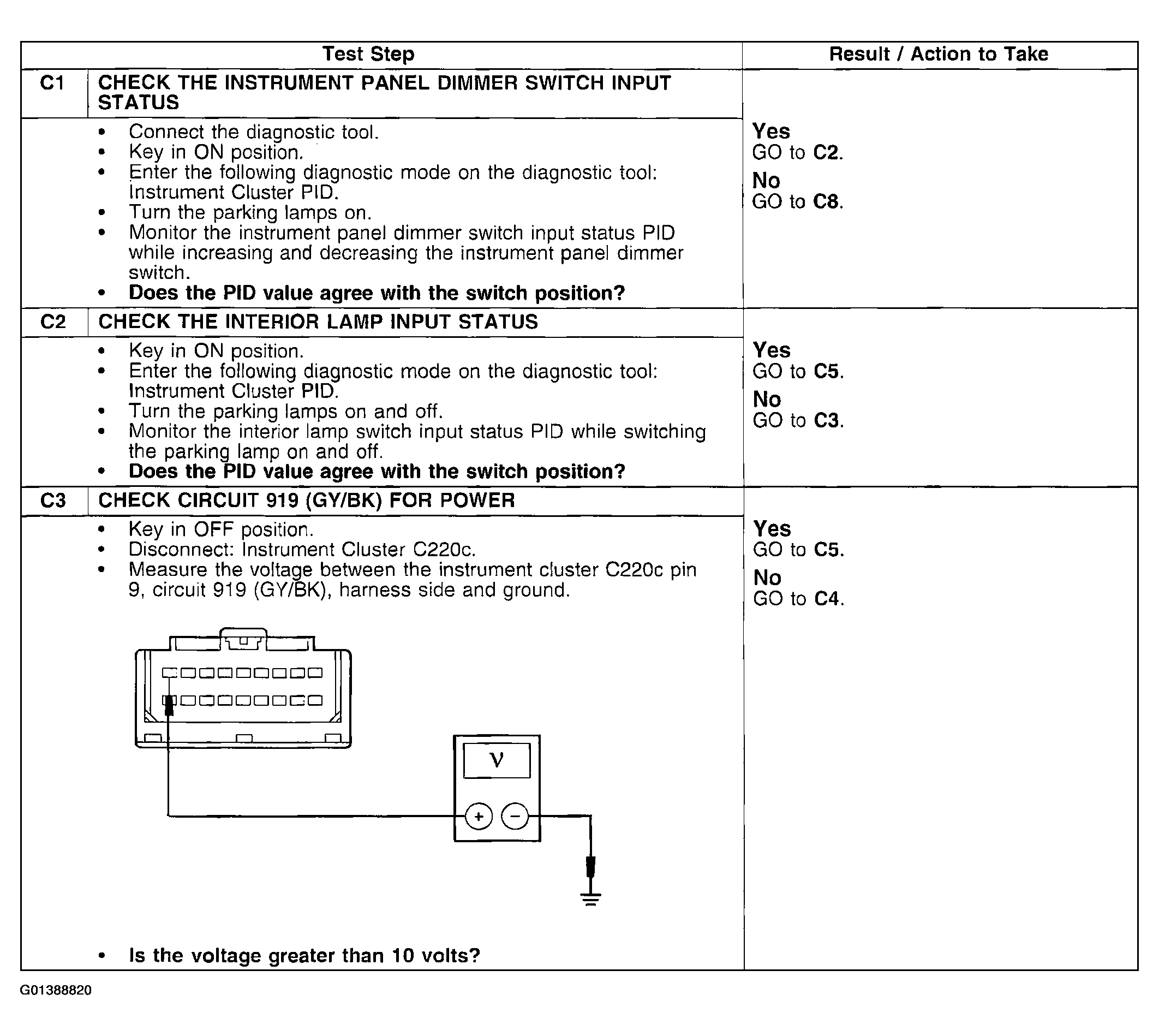

Fig 1: Pinpoint Test C: Instrument Panel Illumination Does Not Dim (Steps C1-C3)

Courtesy of FORD MOTOR CO.

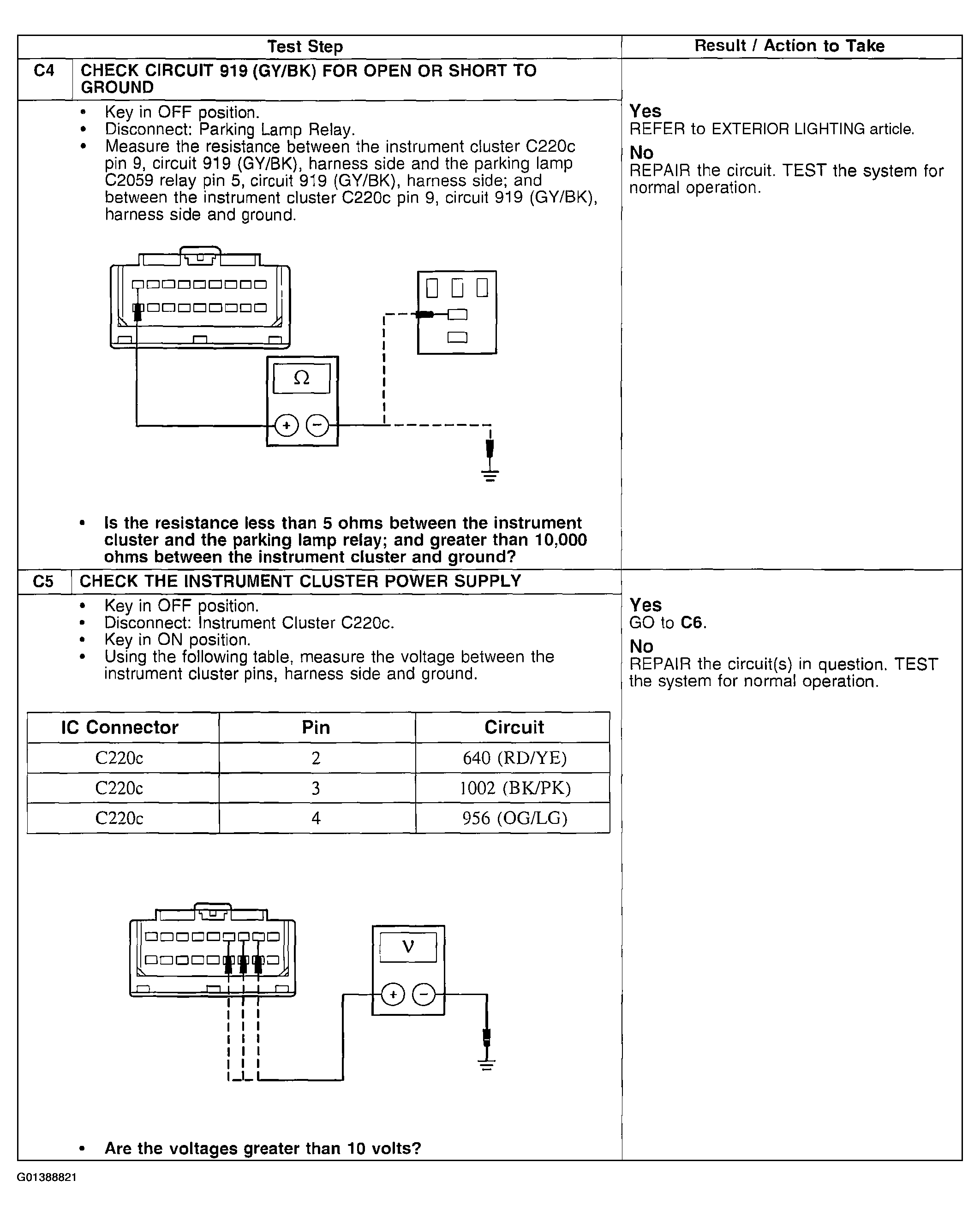

Fig 2: Pinpoint Test C: Instrument Panel Illumination Does Not Dim (Steps C4-C5)

Courtesy of FORD MOTOR CO.

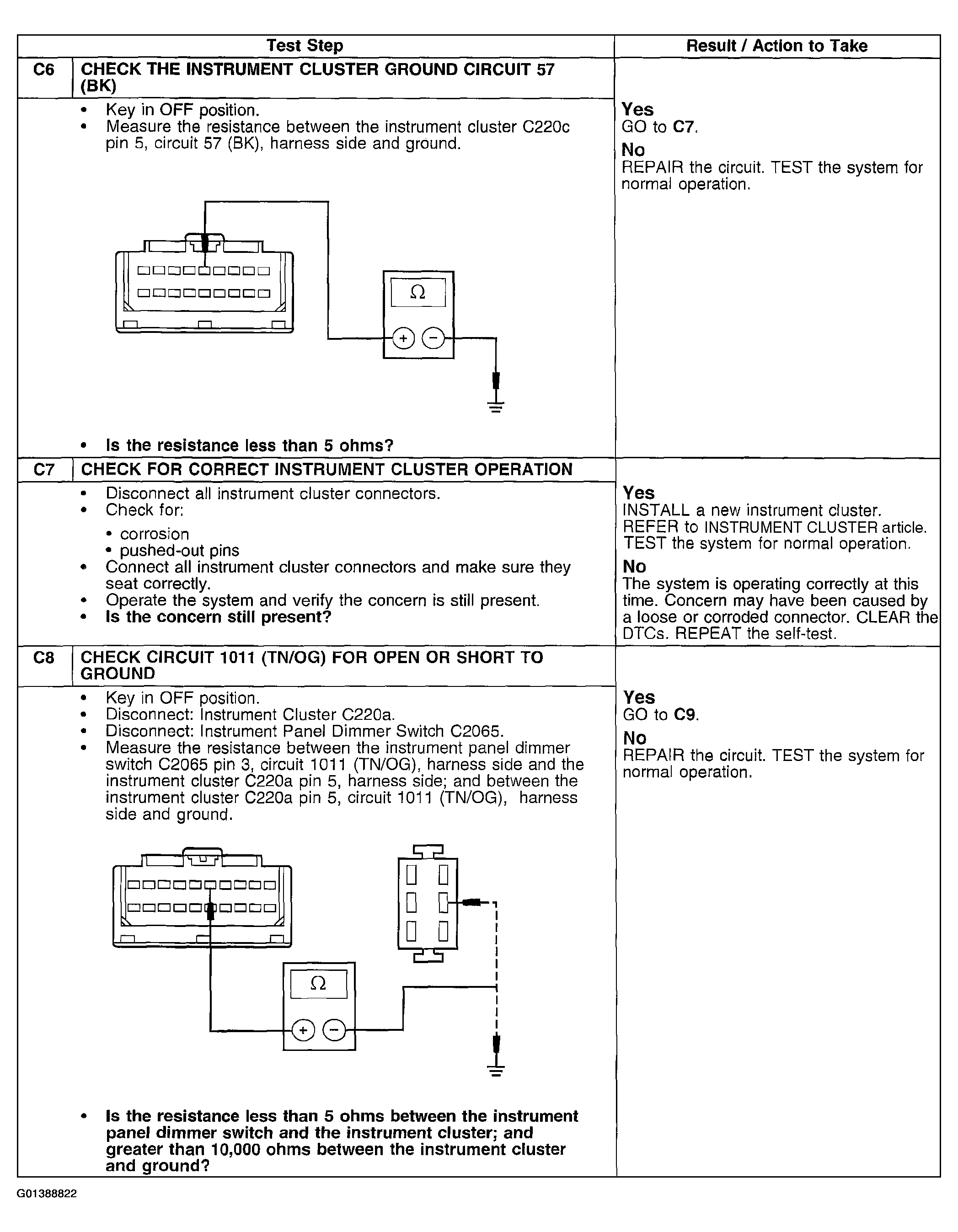

Fig 3: Pinpoint Test C: Instrument Panel Illumination Does Not Dim (Steps C6-C8)

Courtesy of FORD MOTOR CO.

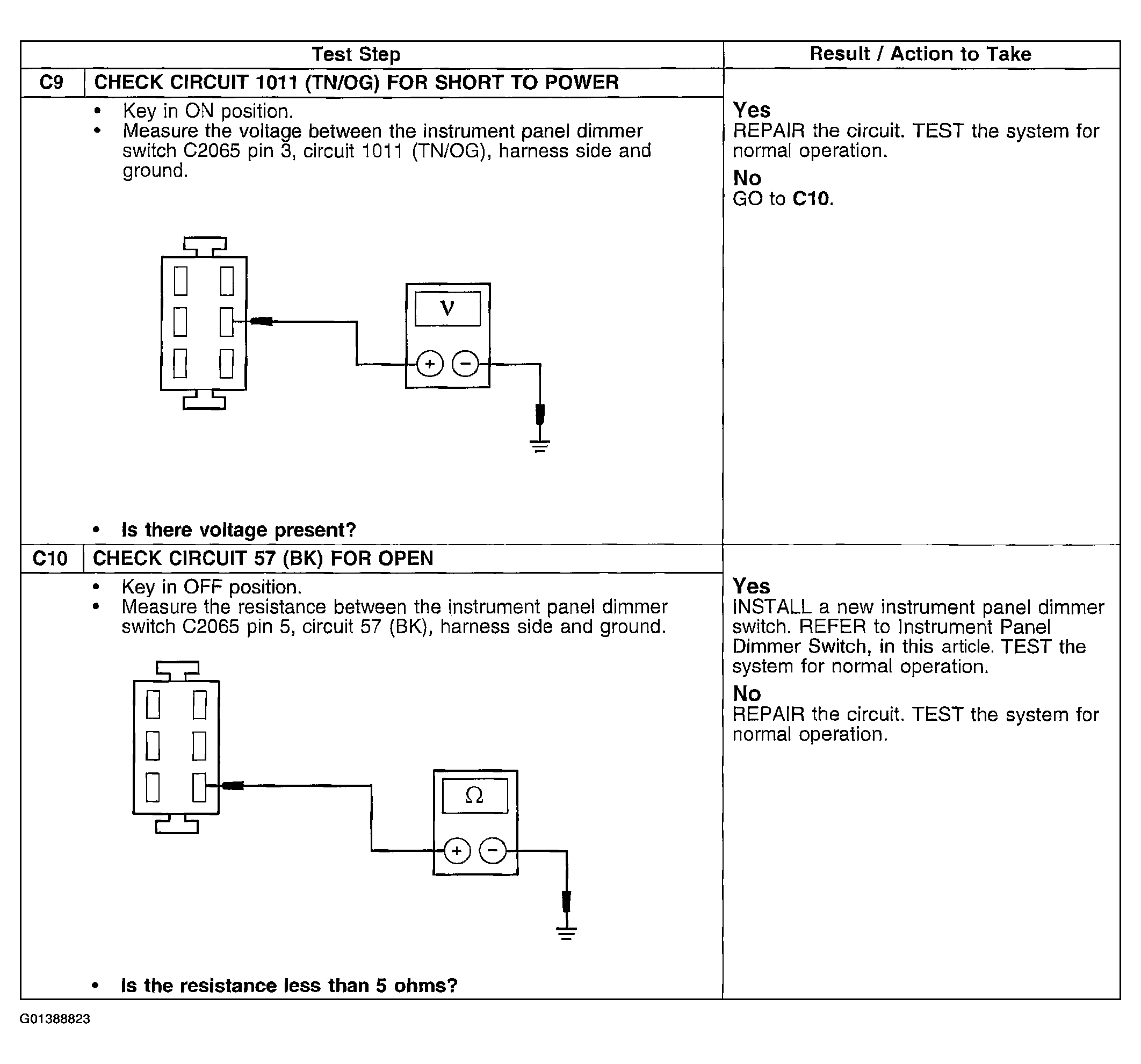

Fig 4: Pinpoint Test C: Instrument Panel Illumination Does Not Dim (Steps C9-C10)

Courtesy of FORD MOTOR CO.
