Pinpoint Test B: The Audio System Illumination Is Inoperative

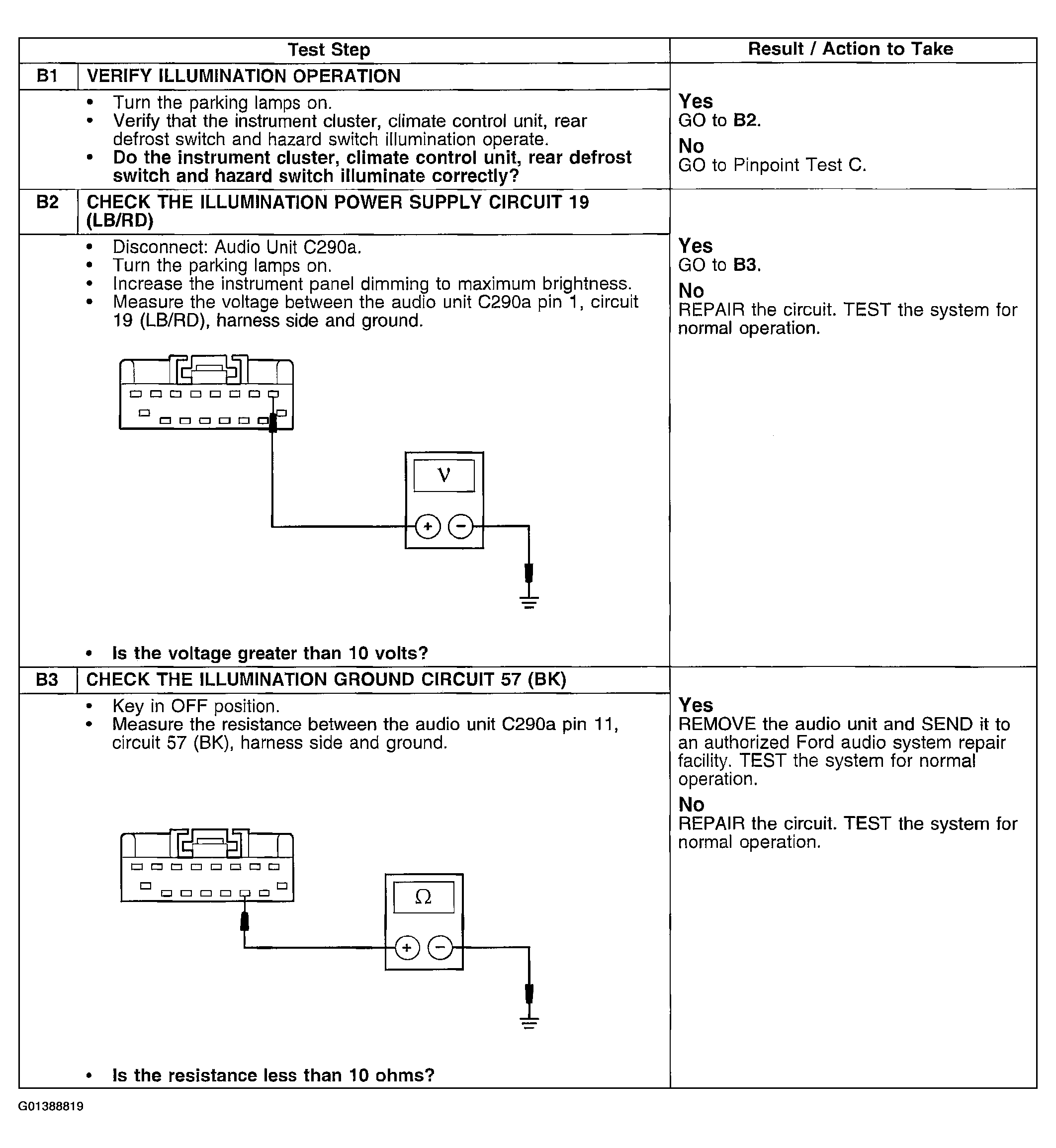

Fig 1: Pinpoint Test B: Audio System Illumination Is Inoperative (Steps B1-B3)

G01388819

Courtesy of FORD MOTOR CO.
