Pinpoint Test A: The Climate Control Panel Illumination Is Inoperative
Pinpoint Test A: The Climate Control Panel Illumination Is Inoperative

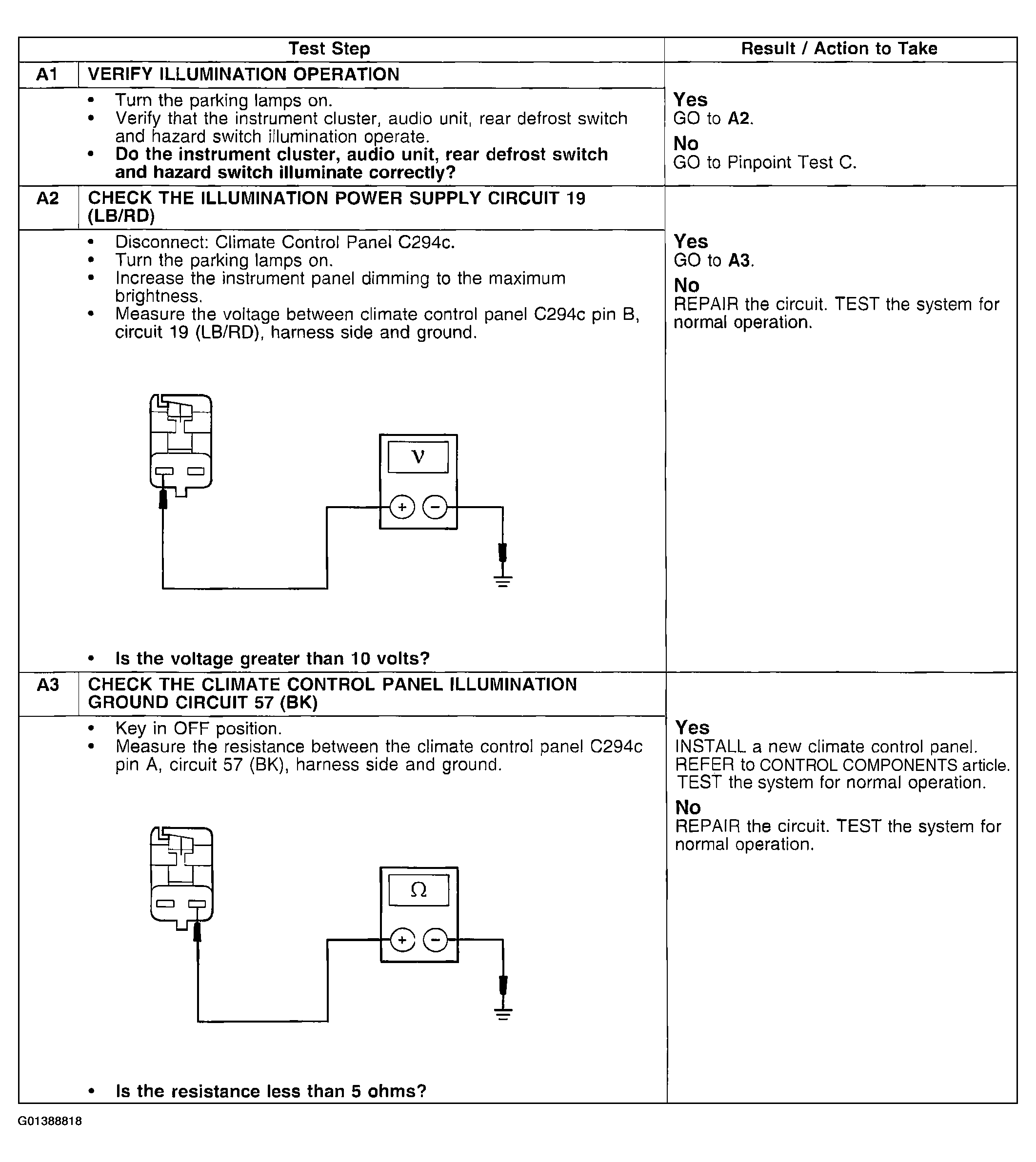

Fig 1: Pinpoint Test A: Climate Control Panel Illumination Is Inoperative (Steps A1-A3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
