Front Suspension - Exploded View

WARNING: This page is about a different car, the 2005 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

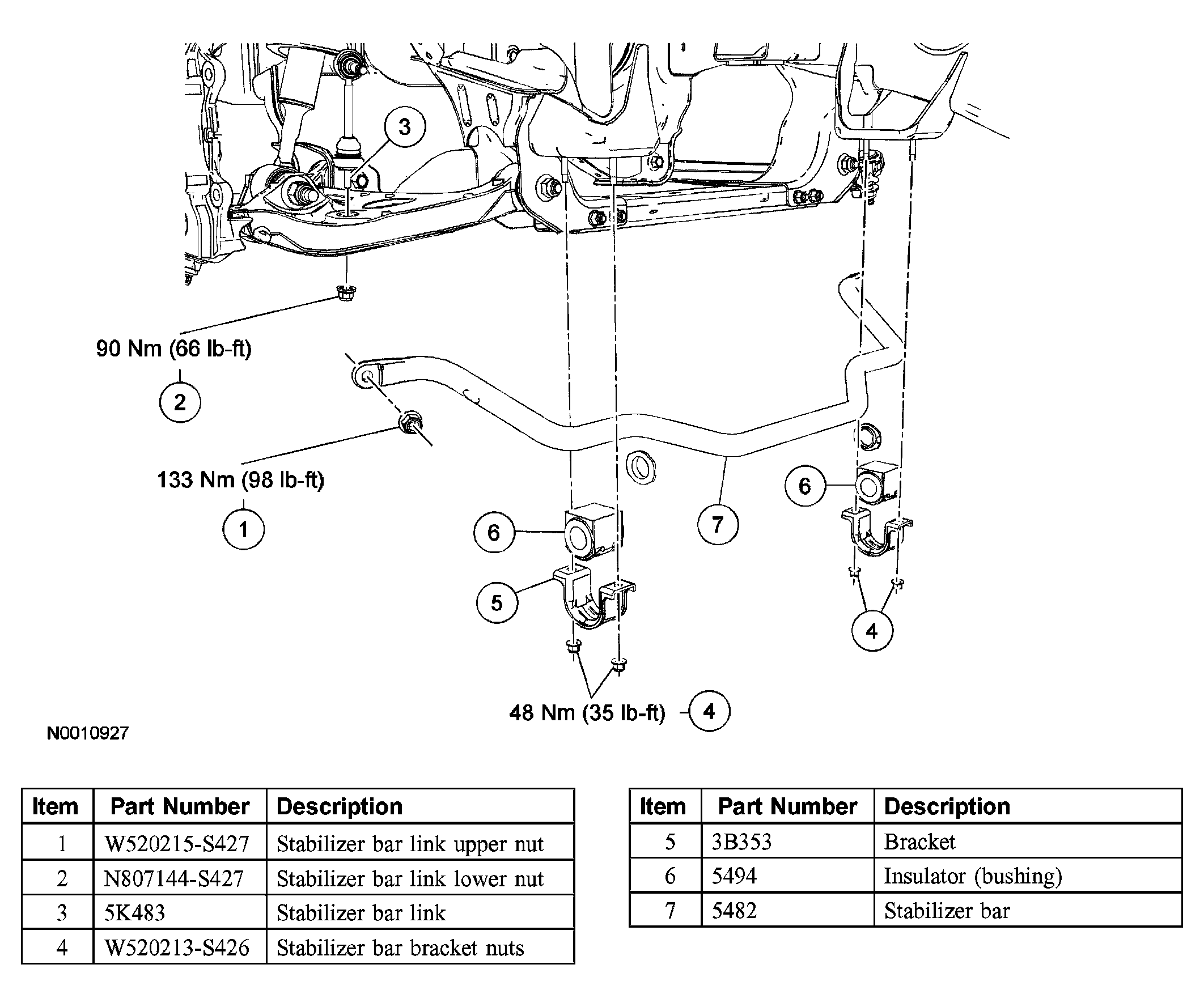

Fig 1: Exploded View Of Front Suspension - Early Build Vehicles

Courtesy of FORD MOTOR CO.

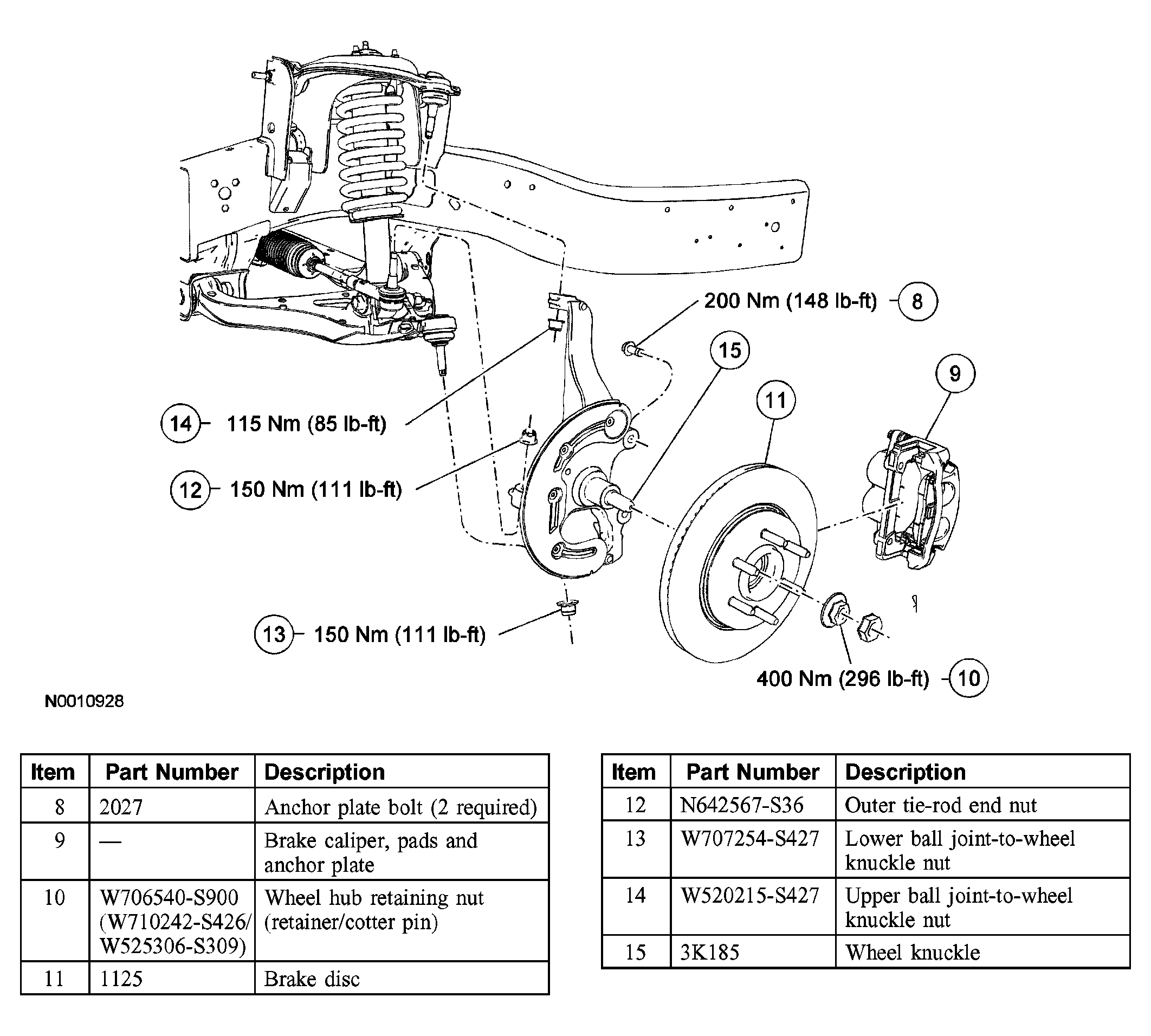

Fig 2: Exploded View Of Front Suspension - Late Build Vehicles (Items 1-7)

Courtesy of FORD MOTOR CO.

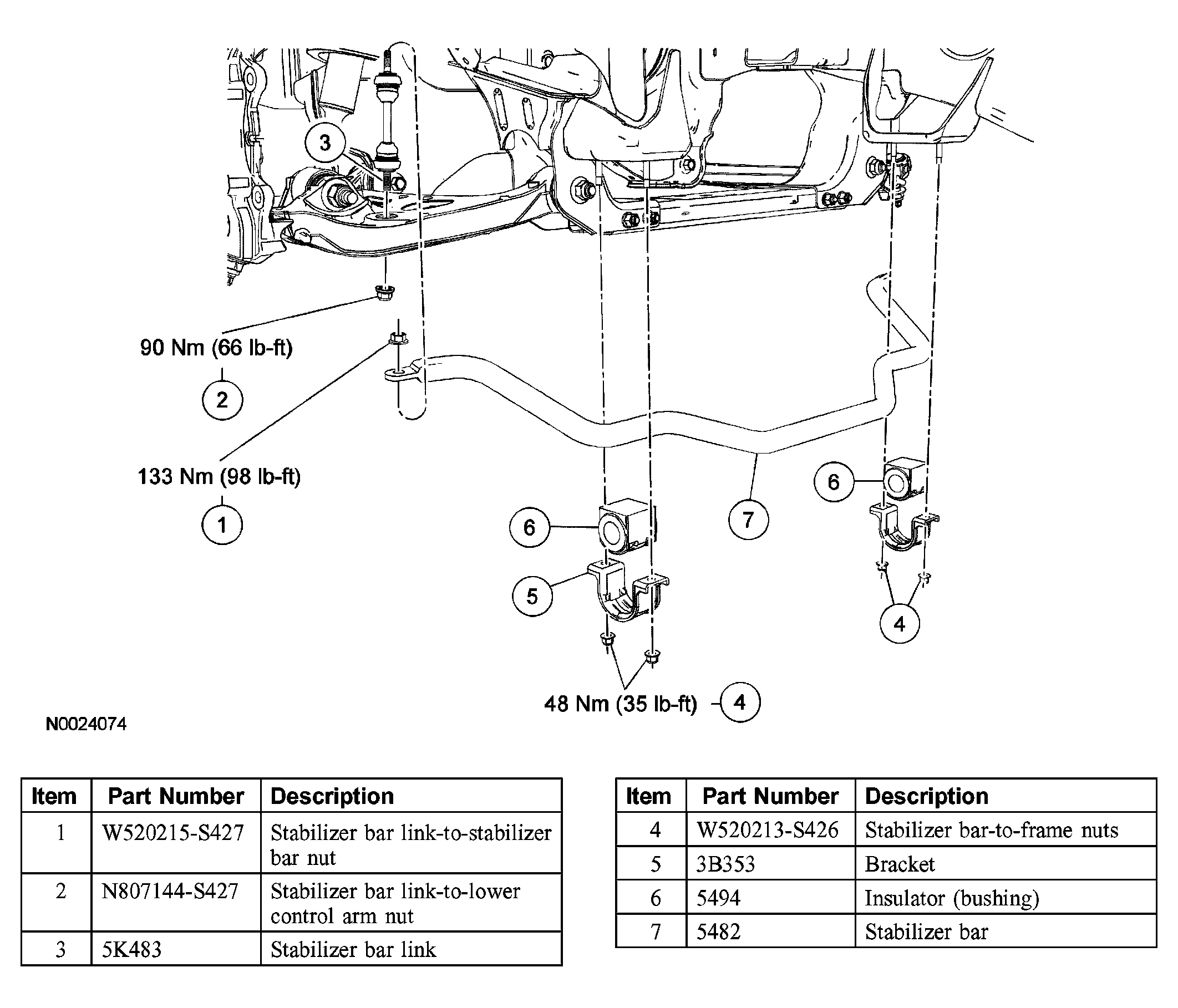

Fig 3: Exploded View Of Front Suspension - Late Build Vehicles (Items 8-15)

Courtesy of FORD MOTOR CO.

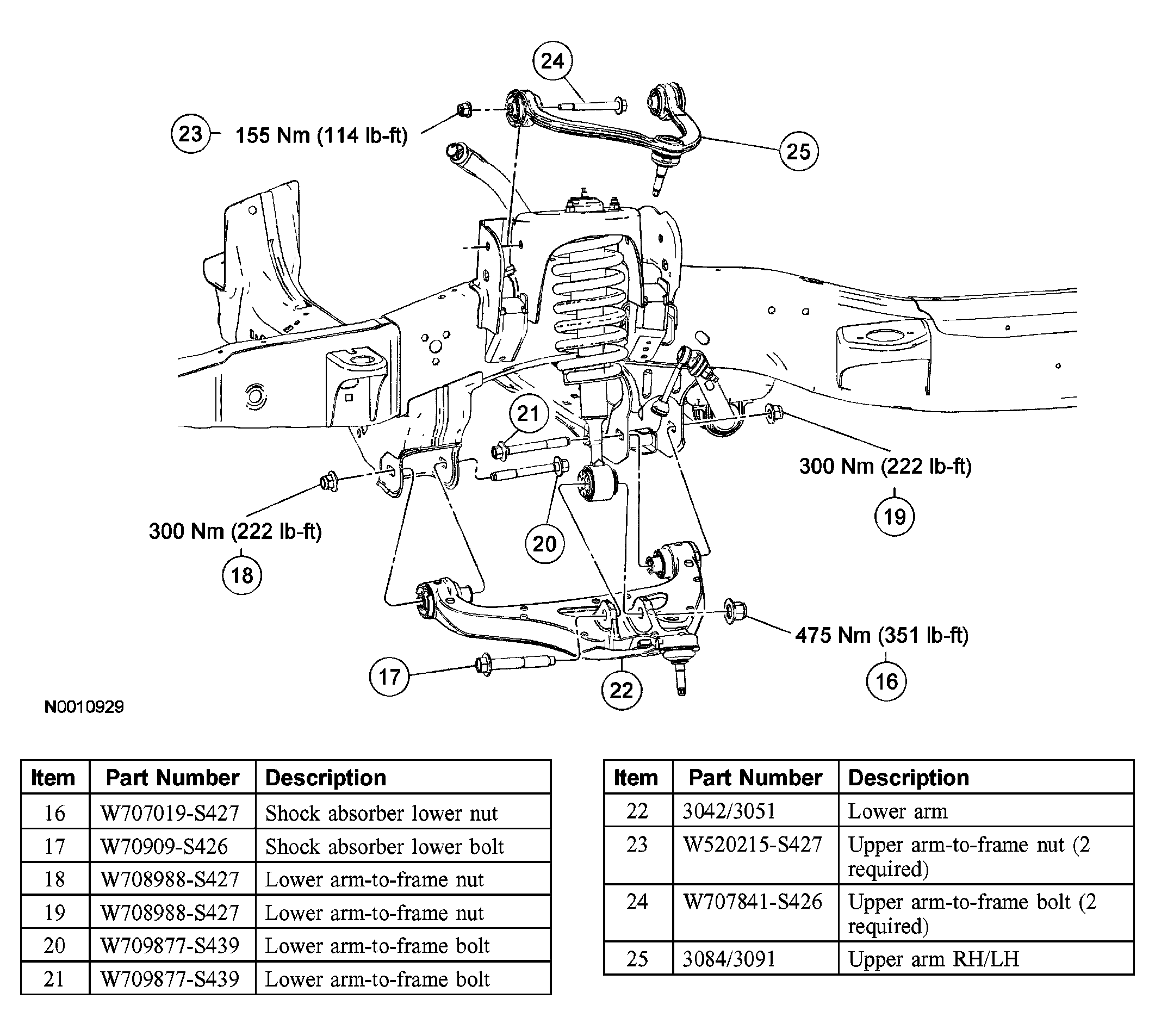

Fig 4: Exploded View Of Front Suspension - Late Build Vehicles (Items 16-25)

Courtesy of FORD MOTOR CO.

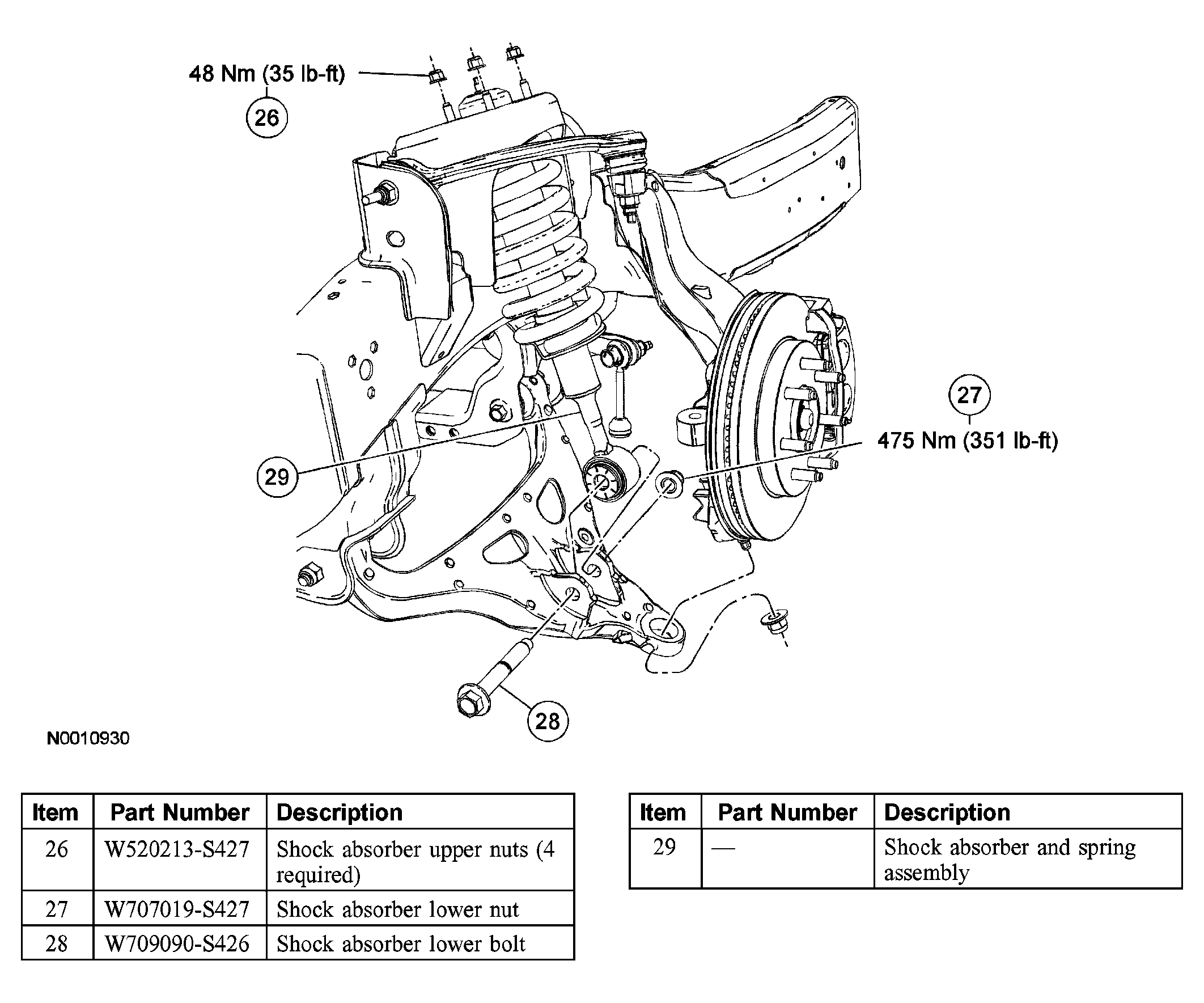

Fig 5: Exploded View Of Front Suspension - Late Build Vehicles (Items 26-29)

Courtesy of FORD MOTOR CO.

For additional information, refer to the procedures in this article.
