Turbocharger Wastegate Adjustment

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the turbocharger wastegate actuator vacuum hose.
    Fig 1: Locating Turbocharger Wastegate Actuator Vacuum Hose
    G07481778Courtesy of FORD MOTOR CO.
    2. NOTE: The upper intake is removed for clarity only.
    Fig 2: Connecting Vacuum Source To Vacuum Port Of Turbocharger Wastegate Actuator
    G07481779Courtesy of FORD MOTOR CO.
  2. Connect a vacuum source to the vacuum port of the turbocharger wastegate actuator, apply 34 kPa (10.0 in-Hg) to make sure it holds vacuum for 5 seconds and then release the vacuum.
    3. NOTE: If vacuum is applied too fast, incorrect reading will occur.
  3. Very slowly apply vacuum while watching the turbocharger wastegate actuator rod end nut relative to the turbine housing, looking for the first signs of movement.
    • If the first sign of movement occurs between 28 kPa (8.3 in-Hg) to 34 kPa (10.0 in-Hg), no adjustment is needed. Remove the test vacuum source and connect the turbocharger wastegate actuator vacuum hose.
    • If movement is seen before 28 kPa (8.3 in-Hg) or after 34 kPa (10.0 in-Hg), adjust the turbocharger wastegate rod.
      Fig 3: Locating Turbocharger Wastegate Actuator Rod End Nut
      G07481780Courtesy of FORD MOTOR CO.
    4. NOTE: The following steps are only for the adjustment of the turbocharger wastegate actuator rod.
  4. Remove the upper intake manifold. For additional information, refer to ENGINE - 6.7L DIESEL .
  5. Count and note the number visible threads on the turbocharger wastegate actuator rod.
    Fig 4: Locating Turbocharger Wastegate Actuator Rod
    G07481781Courtesy of FORD MOTOR CO.
  6. Loosen the rod end nut 10 mm (0.393 in) to allow rod end adjustment.
    Fig 5: Locating Rod End Nut
    G07481782Courtesy of FORD MOTOR CO.
  7. Remove the 2 turbocharger wastegate actuator nuts.
    Fig 6: Locating Turbocharger Wastegate Actuator Nuts
    G07481783Courtesy of FORD MOTOR CO.
    8. NOTE: If actuator rod movement is less than 28 kPa (8.3 in-Hg), rotate the turbocharger wastegate actuator counterclockwise. If actuator rod movement is greater than 34 kPa (10 in-Hg), rotate the turbocharger wastegate actuator clockwise.
    NOTE: One full turn equals one thread.
    Fig 7: Pulling Turbocharger Wastegate Actuator Out Of Bracket
    G07481784Courtesy of FORD MOTOR CO.
  8. Pull the turbocharger wastegate actuator out of the bracket and rotate clockwise or counterclockwise in 360° increments until 11 threads are visible as a starting point.
  9. Install the turbocharger wastegate actuator back into the bracket.

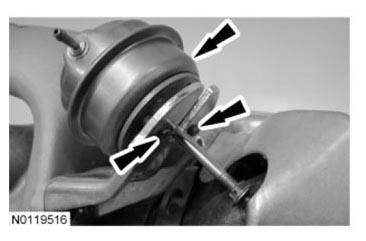

    Fig 8: Locating Turbocharger Wastegate Actuator Back And Bracket
    G07481785Courtesy of FORD MOTOR CO.
  10. Applying force by hand, hold the turbocharger wastegate actuator into the bracket and retest.
    • If actuator rod movement is seen before 28 kPa (8.3 in-Hg), turn the turbocharger wastegate actuator one more turn counterclockwise and retest.
    • If movement is not seen before 34 kPa (10.0 in-Hg), turn the turbocharger wastegate actuator one turn clockwise and retest.
  11. If actuator rod movement is seen between 28 kPa (8.3 in-Hg) and 34 kPa (10.0 in-Hg), install the turbocharger wastegate actuator bracket nuts.
    • Calculate the correct torque wrench setting for the following torque. Refer to the Torque Wrench Adapter Formulas illustration.
      Fig 9: Torque Wrench Adapter Formulas
      G00468730Courtesy of FORD MOTOR CO.
    • Tighten to 6 Nm (53 lb-in).
      Fig 10: Locating Turbocharger Wastegate Actuator Nuts
      G07481783Courtesy of FORD MOTOR CO.
  12. Tighten the rod jam nut.
    Fig 11: Locating Turbocharger Wastegate Actuator Rod End Nut
    G07481780Courtesy of FORD MOTOR CO.
  13. Retest the turbocharger wastegate actuator one additional time.
  14. If actuator rod movement is not seen between 28 kPa (8.3 in-Hg) and 34 kPa (10.0 in-Hg), repeat steps  6 through  13.
  15. If actuator rod movement is seen between 28 kPa (8.3 in-Hg) and 34 kPa (10.0 in-Hg), connect the turbocharger wastegate actuator vacuum hose.
    Fig 12: Locating Turbocharger Wastegate Actuator Vacuum Hose
    G07481778Courtesy of FORD MOTOR CO.
  16. Install the upper intake manifold. For additional information, refer to ENGINE - 6.7L DIESEL .
