Headliner - SuperCab: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

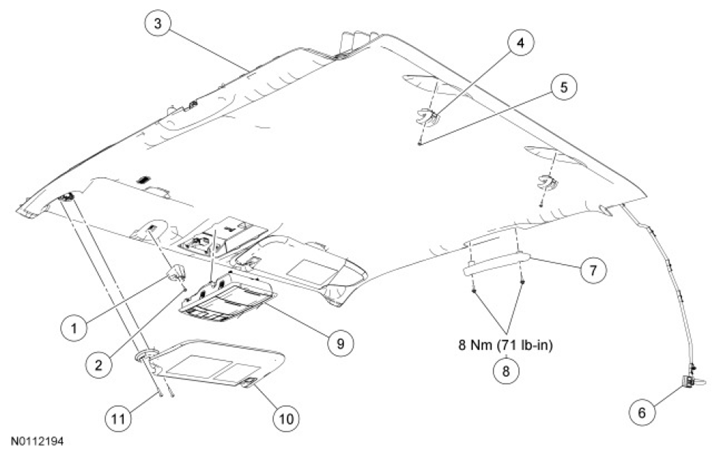

| Item | Part Number | Description |
|---|---|---|
| 1 | 25041A20 | Sun visor retaining clip |
| 2 | W502660 | Sun visor retaining clip screw |
| 3 | 51944 | Headliner |
| 4 | 29024 | Garment hook |
| 5 | W502660 | Garment hook screw |
| 6 | 14A005 | Headliner electrical harness |
| 7 | 28264B82 RH/ 28264B83 LH | Rear door latch cover |
| 8 | W701002 | Rear door latch cover screws (2 required) |
| 9 | 54519A70 | Overhead console |
| 10 | 04104 RH/ 04105 LH | Sun visor |
| 1 1 | W502564 | Sun visor screws (2 required) |
