Gearmotor Encoder Assembly: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item |
Specification |
Multi-Purpose Grease
Motorcraft® XL-5 (aerosol) and/or CRC® SL3151 |
ESB-M1C93-B |
Courtesy of FORD MOTOR CO.

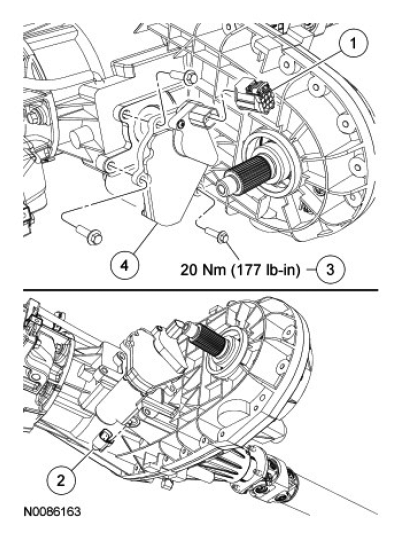

| Item |
Part Number |
Description |
| 1 |
- |
Electrical connector |
| 2 |
- |
Electrical connector |
| 3 |
- |
Gearmotor encoder bolt (3 required) |
| 4 |
- |
Gearmotor encoder assembly |
