Removal and Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove child safety seat tether anchor. Refer to SAFETY BELT SYSTEM .
  2. If equipped, remove the utility trays and jack assembly.

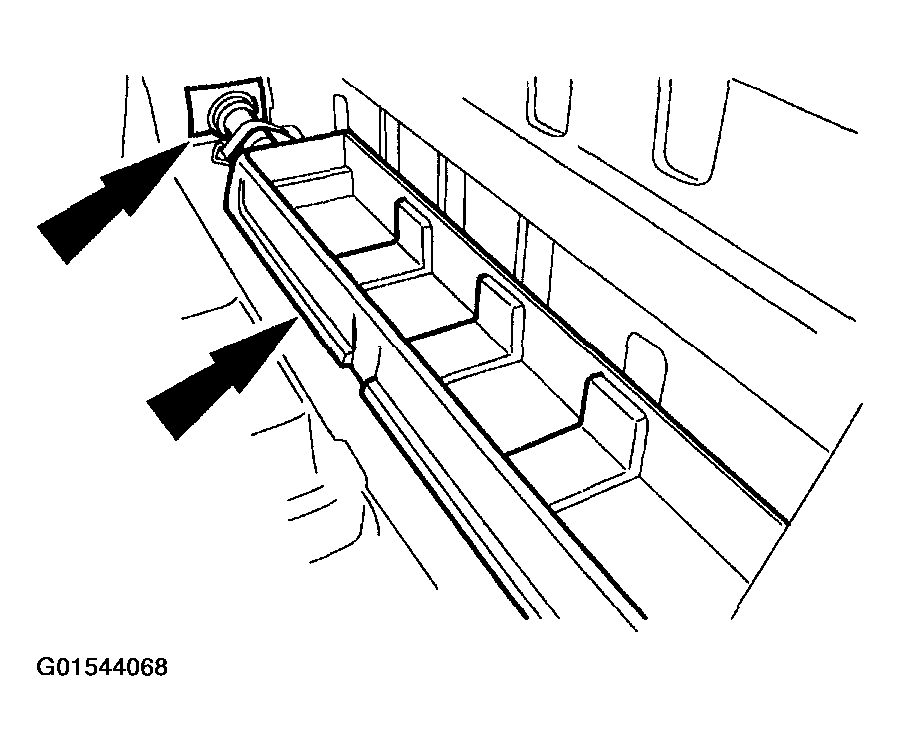

    Fig 1: Removing Utility Trays And Jack Assembly
    G01544068Courtesy of FORD MOTOR CO.
  3. Remove the left and right rear corner trim panels (278D12). Refer to TRIM PANEL - Rear Corner, Regular Cab .
  4. Remove the four pushpins.

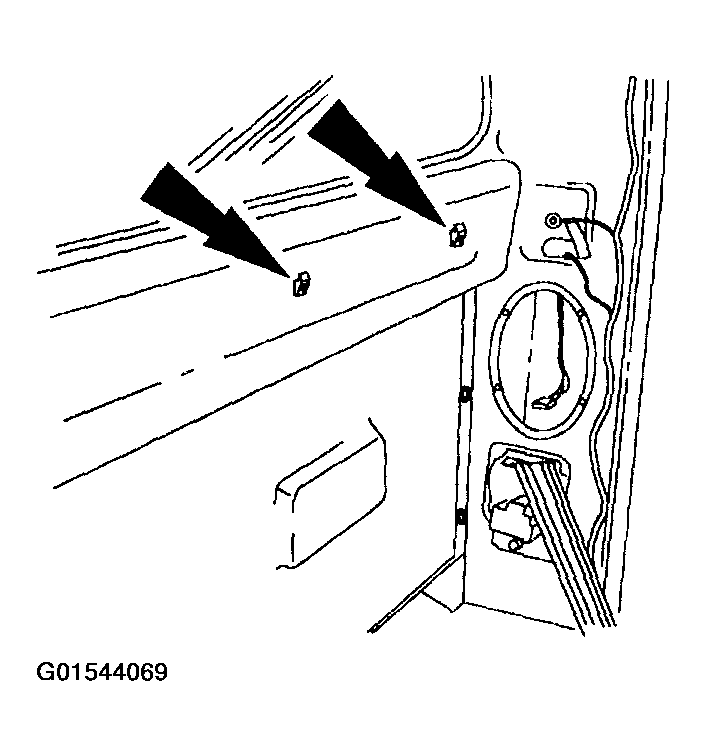

    Fig 2: Removing Four Pushpins
    G01544069Courtesy of FORD MOTOR CO.
  5. Remove the trim cover.
  6. To install, reverse the removal procedure.
