Liftgate Trim Panel: Installation

WARNING: This page is about a different car, the 2003 Ford Pickup, 2003 Ford F550 Super Duty, 2003 Ford F450 Super Duty, 2003 Ford Excursion, and 2003 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Transfer the interior liftgate side trim panel pushpins from the liftgate to the side trim panels.
  2. Install the interior liftgate side trim panels.
  3. Install the upper interior liftgate trim panel.
  4. Install the lower interior liftgate trim panel.
  5. Install the pushpins.

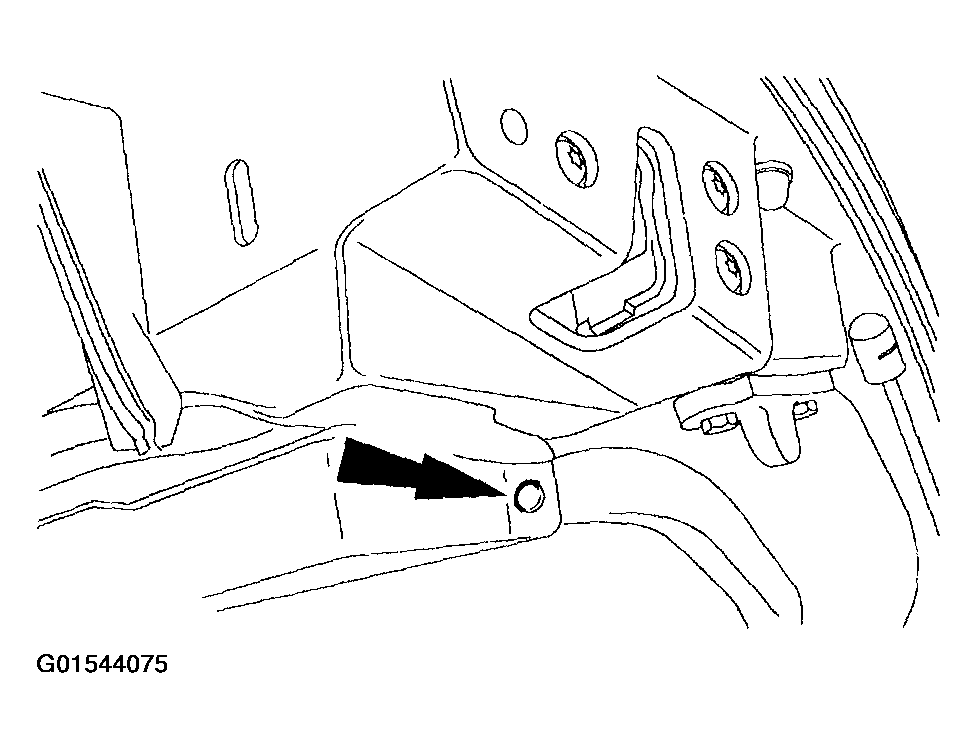

    Fig 1: Installing Pushpins
    G01544075Courtesy of FORD MOTOR CO.
  6. Install the interior liftgate handle.
