Body Support - No. 1

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

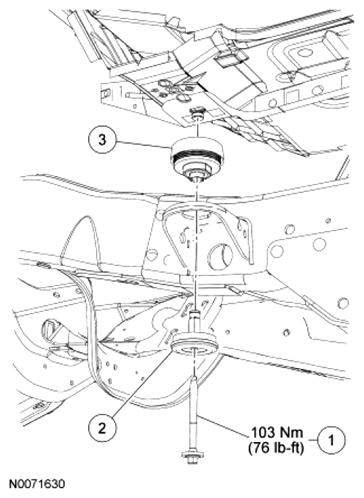

Fig 1: Exploded View Of Body Support -- No. 1 With Torque Specifications
G06780880Courtesy of FORD MOTOR CO.
BODY SUPPORT PARTS DESCRIPTION CHART

Item Part Number Description
1 W712878 Body mount No. 1 bolt
2 00155B Body support mount No. 1 (lower)
3 00155B Body support mount No. 1 (upper)
