Removal and Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Manually position the sliding glass to the full OPEN position.
  2. Remove the upper rail filler.
    • Pull down the RH side of the upper filler while carefully sliding it out of the track towards the RH side of the vehicle.
    Fig 1: Pulling RH Side Of Upper Rail Filler
    G07486047Courtesy of FORD MOTOR CO.
  3. Remove the lower rail filler.
    • Pull up the RH side of the lower filler while carefully sliding it out of the track towards the RH side of the vehicle.

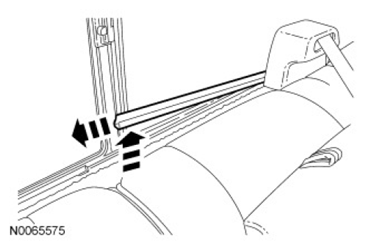

    Fig 2: Pulling RH Side Of Lower Rail Filler
    G07486048Courtesy of FORD MOTOR CO.
  4. Push the sliding glass upward and tilt the bottom inward to disengage the sliding glass from the track. Remove the sliding glass panel.
  5. To install, reverse the removal procedure.
