Window Glass - Rear Door, SuperCab: Removal

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door upper trim panel. For additional information, refer to INTERIOR TRIM & ORNAMENTATION .
  2. Remove the rear door window glass.
    1. Remove the nuts and clips.
    2. Remove the rear door window glass and frame.

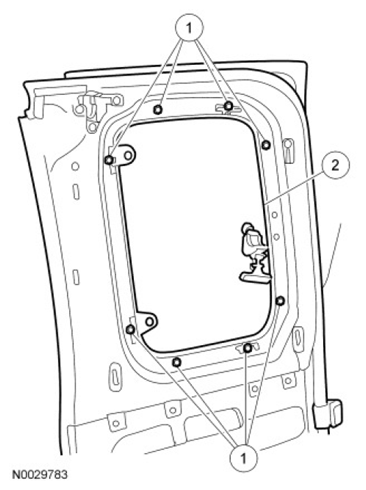

    Fig 1: Identifying Rear Door Window Glass Frame And Nuts
    G07486014Courtesy of FORD MOTOR CO.
  3. Remove excess foam butyl from the window frame and window opening.
