Window Glass - Rear Door, SuperCab: Installation

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the release liner from the butyl seal around the window before installing the window.

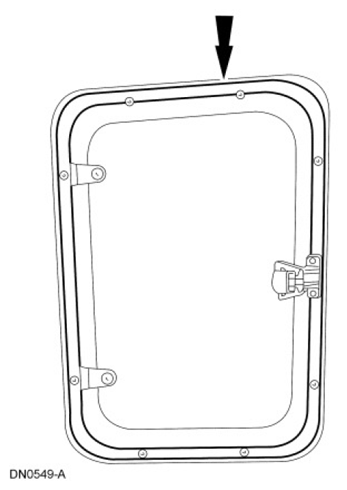

    Fig 1: Locating Release Liner Of Window Butyl Seal
    G07486015Courtesy of FORD MOTOR CO.
  2. Install the window frame and glass.
    • Position the window frame and glass.
    • Tighten the nuts.
      NOTE: Loosely install nuts and clips before tightening.
  3. Install the rear door upper trim panel. For additional information, refer to INTERIOR TRIM & ORNAMENTATION .
  4. Clean excess butyl from window area.
