Window Control Switch: Notes
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

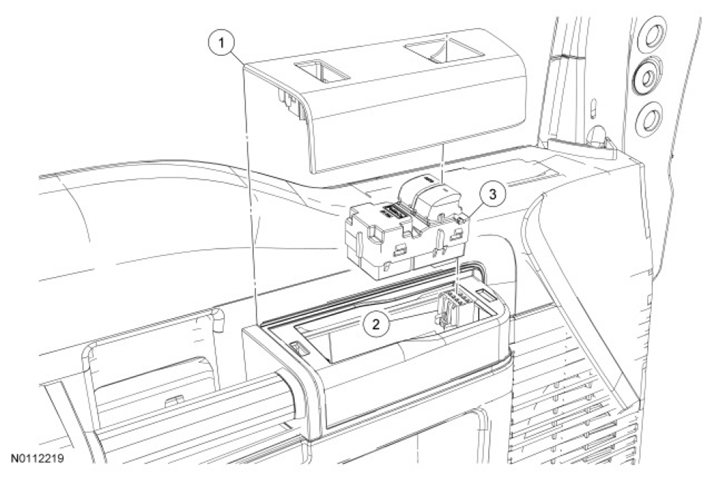

LH, regular cab shown in illustration, all others similar.
Courtesy of FORD MOTOR CO. WINDOW CONTROL SWITCH PARTS DESCRIPTION CHART
| Item |
Part Number |
Description |
| 1 |
14524 |
Window control switch bezel |
| 2 |
14631 LH/ 14630 RH |
Electrical connector (3 required) |
| 3 |
14529 |
Window control switch |
