Power Sliding Glass Panel
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

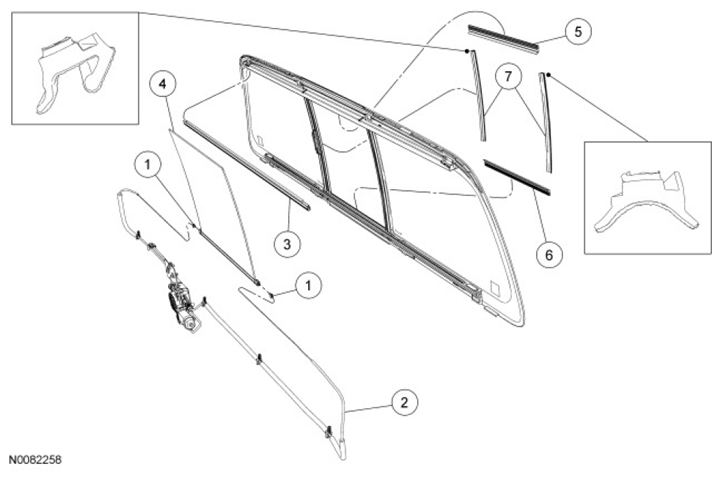

POWER SLIDING GLASS PANEL PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Bumpers (part of sliding window assembly) |
| 2 | 2523394 | Power sliding window regulator and motor assembly |
| 3 | - | Upper rail filler (part of sliding window assembly) |
| 4 | - | Power sliding glass panel |
| 5 | 2542052 | Upper weatherstrip |
| 6 | 2542052 | Lower weatherstrip |
| 7 | 2542052 | Vertical weatherstrips (part of vertical seal service kit) |
