Crew Cab
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

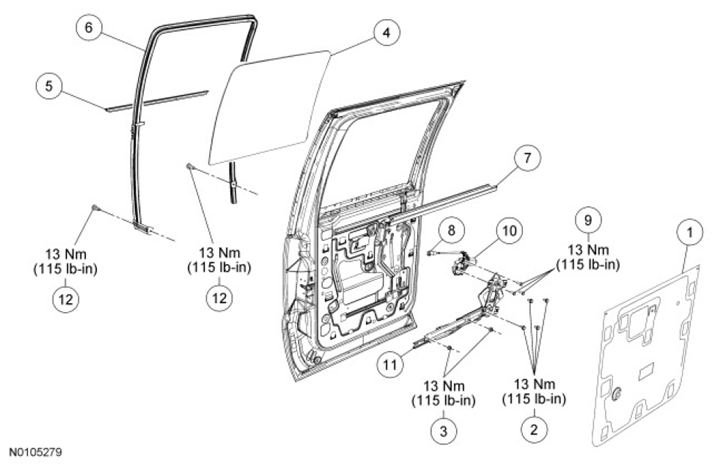

LH side shown in illustration, RH side similar.
GLASS, FRAMES AND MECHANISMS PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 27459 LH/ 27458 RH | Water shield |
| 2 | - | Rear door window regulator bolts (4 required) |
| 3 | - | Window glass clamp nuts (2 required) (part of 25713 LH/ 25712 RH) |
| 4 | 25713 LH/ 25712 RH | Rear door window glass |
| 5 | 25596 | Exterior belt line weatherstrip |
| 6 | 25767 LH/ 25766 RH | Rear door window glass run |
| 7 | 25860 | Interior belt line weatherstrip |
| 8 | 14A005 | Window regulator electrical connector |
| 9 | - | Rear door window motor bolts (3 required) |
| 10 | 23394 LH/ 23395 RH | Rear door window motor |
| 11 | 27009 LH/ 27008 RH | Rear door window regulator |
| 12 | W715067 | Rear door window glass run bolts (2 required) |
