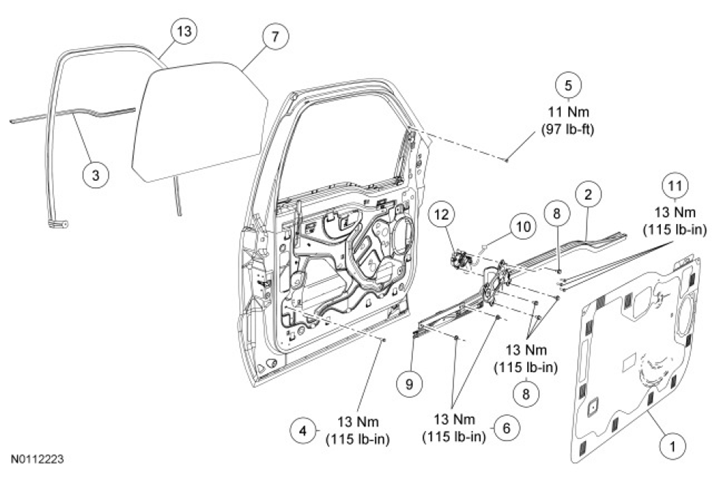

Glass, Frames and Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown in illustration, RH side similar.
GLASS, FRAMES AND MECHANISMS PARTS DESCRIPTION CHART
| Item | Part Number | Description |
|---|---|---|
| 1 | 237A05 LH/ 237A04 RH | Water shield |
| 2 | 21457 LH/ 21456 RH | Interior belt line weatherstrip |
| 3 | 21453 LH/ 21452 RH | Exterior belt line weatherstrip |
| 4 | W715067 | Window glass run bolt (3 required) |
| 5 | N621906 | Window glass run nut |
| 6 | - | Glass clamp nuts (2 required) (part of 21411 LH/21410 RH) |
| 7 | 21411 LH/ 21410 RH | Front door window glass |
| 8 | - | Front door window regulator bolts (4 required) (part of 23201 LH/23200 RH) |
| 9 | 23201 LH/ 23200 RH | Front door window regulator |
| 10 | 14631 LH/ 14630 RH | Window regulator motor electrical connector |
| 11 | - | Window motor bolts (3 required) |
| 12 | 14A365 LH/ 14A364 RH | Front door window motor |
| 13 | 21597 LH/ 21596 RH | Front door window glass run |
- For additional information, refer to the appropriate procedures in this service information.
