Passive Anti-Theft System (PATS) Transceiver: Notes

WARNING: This page is about a different car, the 2011 Ford Pickup, 2011 Ford F550 Super Duty, 2011 Ford F450 Super Duty, and 2011 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

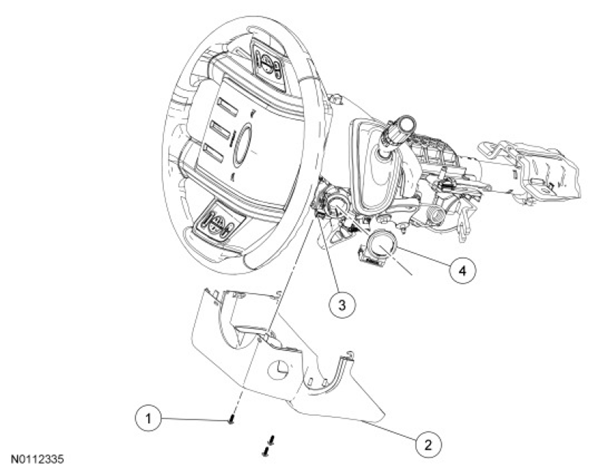

Fig 1: Identifying Passive Anti-Theft System Transceiver Components Location

Courtesy of FORD MOTOR CO.

PARTS DESCRIPTION CHART

Item	Part Number	Description
1	W710485	Lower steering column shroud screws (3 required)
2	3530	Lower steering column shroud
3	-	Passive Anti-Theft System (PATS) transceiver electrical connector (part of 14401)
4	15607	PATS transceiver
